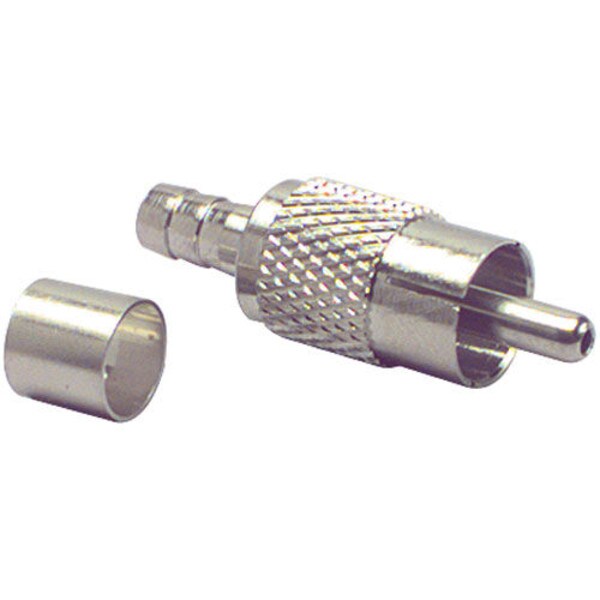

RCA Plug Connector Crimp-on For RG-59/U Coax

Parts ExpressPart # 090-263
These crimp-on RCA connectors are specifically designed for use RG-59/U and can be easily terminated in the field.

Key Features

  • Nickel plating is rugged and attractive
  • Textured barrel provides good grip
  • Assembles with soldering iron, coaxial stripper, and crimp tool
Your Price: $1.04
MSRP: $1.99
Save $0.95 (48%)
Bulk Pricing
Quantity:Qty: 1-9 $1.04/ea
Quantity:Qty: 10+ $0.94/ea
122 In Stock
Get Notified When Available

We'll send you an email when RCA Plug Connector Crimp-on For RG-59/U Coax is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

RCA Plug Connector Crimp-on For RG-59/U Coax

These RG-59-compatible RCA plugs are perfect for installers or anyone else interested in an economical, easy way to terminate cables. Simply slide the ferrule onto the RG-59, strip the cable end, insert the connector onto the cable with the protruding tube between the center insulator and shielding, slide the ferrule up over the shielding, crimp the ferrule, and put a small amount of solder into the hole in the tip to secure and make contact between the center pin of the RCA and the conductor inside.

Specifications: • Contact plating: nickel • Sold per: each • Finish:nickel  • Termination style: crimp & solder.

Product Details

BrandParts Express
Part Number090-263
UPC844632010699
Unit of MeasureEach
Weight0.0198

Product Specifications

GenderMale / Plug
Mounting TypeCable Mount
