Quam UL22/70/DM UL Listed Fire Signaling 2 ft. x 2 ft. Ceiling Tile Speaker w/ Device Mount 4W/70V

QuamPart # 244-3449
Model: UL22/70/DM
The Quam UL22/70/DM is a complete 2' x 2' UL listed fire signaling device with built-in device mount box for mass notification & emergency communications providing superior voice intelligibility performance, shallow depth, lightweight, fire-protective signaling device.. The UL listed (UL 1480-F, UL 2043 and ASTM E84) speaker features a built-in device mount for accommodation of 3rd party strobes, smoke detectors, indicators lights, and cameras. The 4W-70V rotary select transformer makes switching transformer taps simple. When ceiling space is limited, the direct mount makes it easy to utilize space efficiently.

Key Features

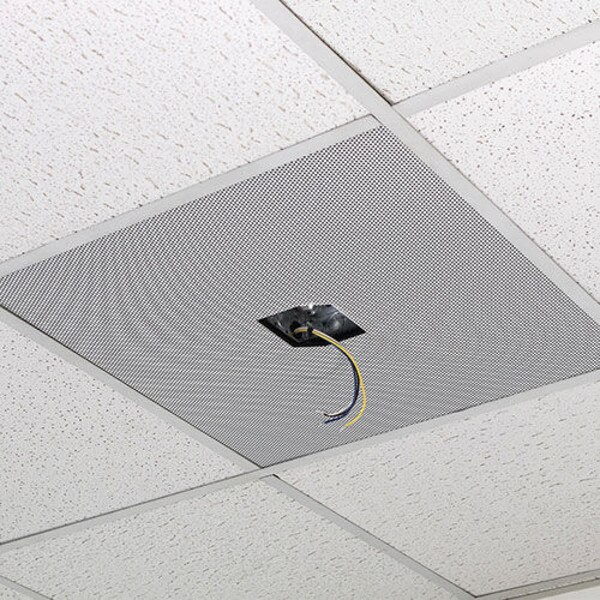

  • Built-in device mount for use with 3rd party components
  • 24" x 24" lay-in speaker tile
  • 4W-70V rotary select transformer
  • UL listed 1480-F, 2043, and ASTM E84 signaling device
  • Made in Chicago, USA
Get Notified When Available

We'll send you an email when Quam UL22/70/DM UL Listed Fire Signaling 2 ft. x 2 ft. Ceiling Tile Speaker w/ Device Mount 4W/70V is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Quam UL22/70/DM UL Listed Fire Signaling 2 ft. x 2 ft. Ceiling Tile Speaker w/ Device Mount 4W/70V

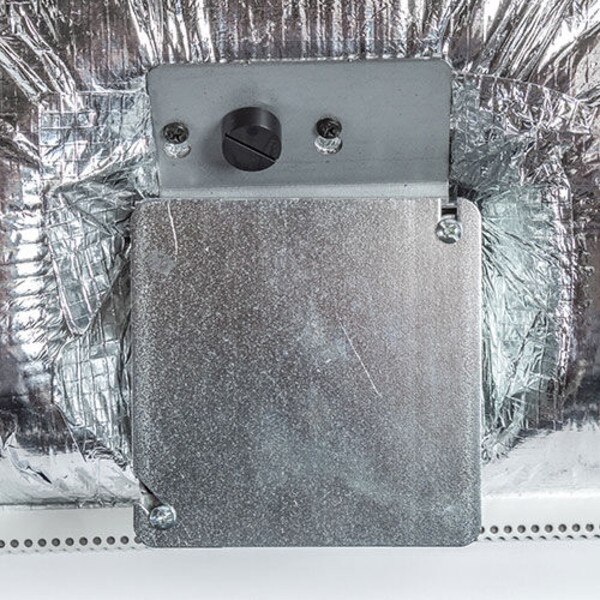

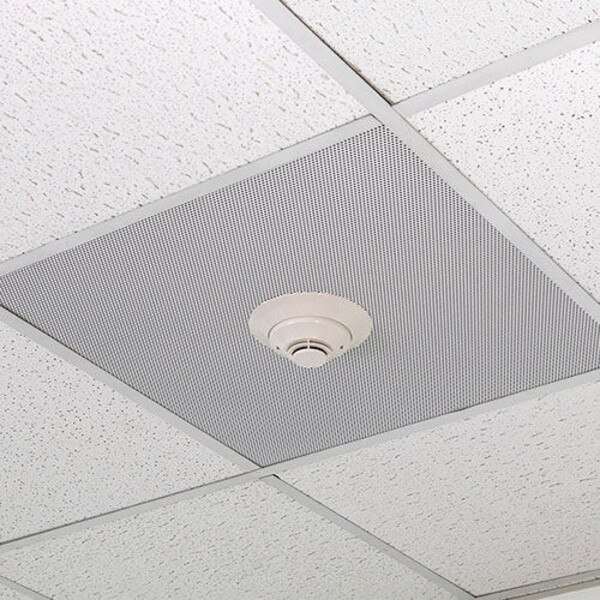

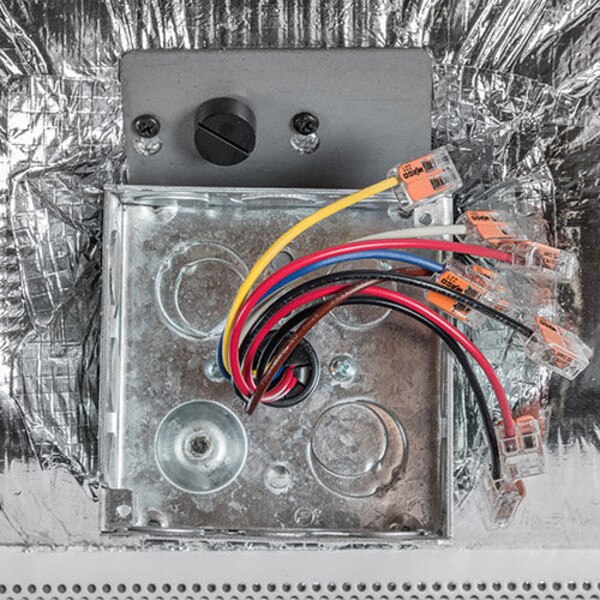

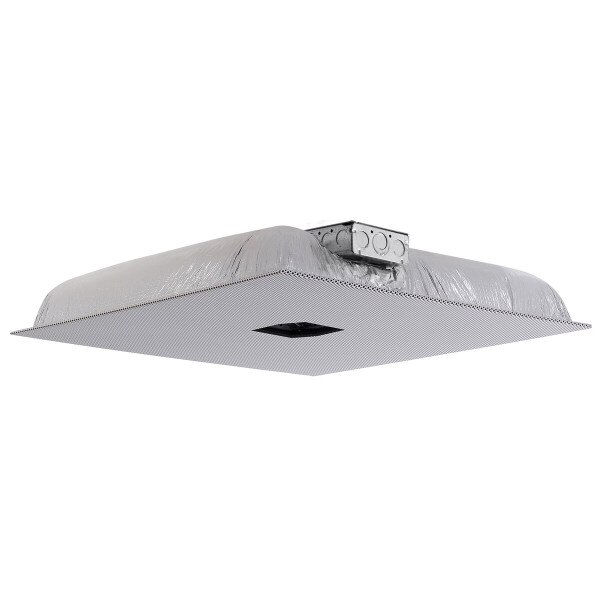

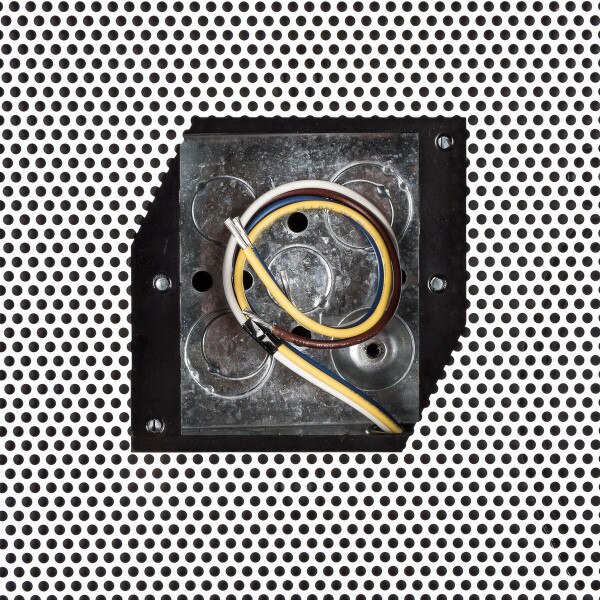

The Quam UL22/70/DM 24" x 24" lay-in tile speakers features an 8" loudspeaker with a 4W-70V rotary select transformer. In addition, the speaker has an integral junction box for secure and inspectable connections. The single gang mounting box includes a line supervision capacitor, 4-14 gauge color-coded appliance wiring, and 4 square mounting points for adding accessories. The device mount allows for installing strobes, smoke detectors, indicator lights, and cameras thus freeing up valuable ceiling real estate. The integral enclosure is constructed from 1,412 CID molded fiber. Grille is perforated steel with four seismic tie-off points with a white powder coat finish. No assembly required.

Specifications: • Woofer size: 8" • Sound pressure dB-SPL @ 10 ft. per tap: 0.25W = 78.7 dB; 0.5W = 80.7 dB; 1W = 81.5 dB; 2W = 84.3 dB; 4W = 87.4 dB • Power rating: 20W RMS, EIA 426A Standard • Frequency response: 60-17,000 Hz (EIA 426A Standard) • Magnet type & weight: BeFe Ceramic, 10 oz. nominal • Nominal coverage area: 100° (-6 dB / 2 kHz, half space) • Audio connection: Common, Dual, color-coded leads, pre-cut • Loudspeaker: 8C10PAFR • Transformer: 70V 4W-5 tap rotary select (4, 2, 1, 0.5, 0.25W) • UL listings: UL 1480-F, UL 2043, ASTM E84 • Installation: 2' x 2' or 2' x 4' wide ceiling tile • Dimensions: 23.75" L x 23.75" W x 3.44" D.

Product Details

BrandQuam
ModelUL22/70/DM
Part Number244-3449
UPC848864055503
Unit of MeasureEach
Weight10.25

Product Specifications

Input Rating70V
Mounting StyleDrop-in Tile
Woofer Diameter8"
Special FeaturesUL1480-UL2043
