  • Quam SYSTEM 3 8" Wall Mount Slanted Speaker 5W-25/70V White

Quam SYSTEM 3 8" Wall Mount Slanted Speaker 5W-25/70V White

Quam
Part #244-3054

Quam SYSTEM 3 8" Wall Mount Slanted Speaker 5W-25/70V White

Quam
Part #244-3054
Model: SYSTEM 3

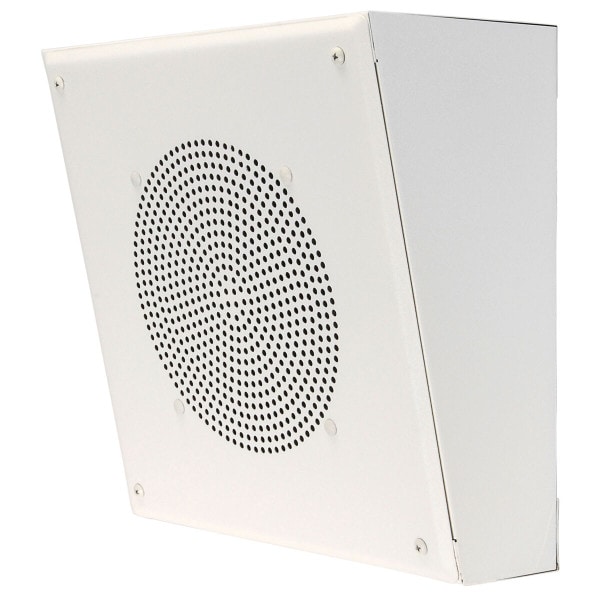

The SYSTEM 3/VC by Quam is a complete full range white loudspeaker assembly with an 8" O.D., 5 watt-25/70.7V transformer.
Key Features
  • 8" O.D. full range speaker
  • 5W-25/70.7V pigtail transformer
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $67.90
MSRP: $72.84
Save $4.94 (7%)
Bulk Pricing
Quantity:Qty: 1-3 $67.90/ea
Quantity:Qty: 4+$67.12/ea
Order in the next 0 hr 54 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 3 8" Wall Mount Slanted Speaker 5W-25/70V White

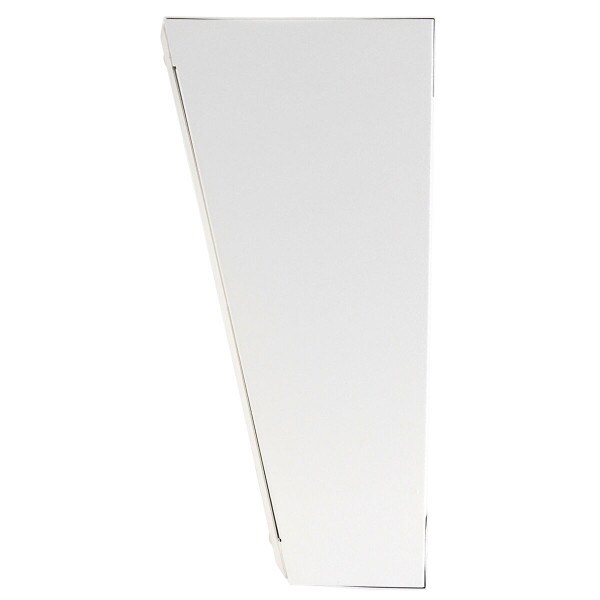

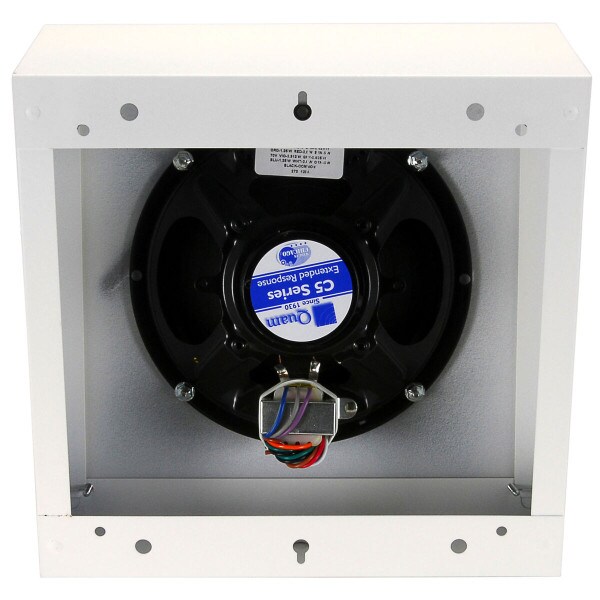

Quam's SYSTEM 3 has a 5 watt-25/70.7V pigtail transformer, and 22 gauge steel baffle and slanted enclosure. Both the baffle and enclosure are finished in a white baked epoxy hybrid. Intended use in an interior environment mounted on a vertical surface, downward firing for signal tones, voice, and music. Made in Chicago, USA.

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 99 dB SPL, 5W/1m • Magnet type, weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" color coded pigtails, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 3
Part Number244-3054
UPC844632096570
Unit of MeasureEach
Weight10

Product Specifications

ColorWhite
ConfigurationFull-range
Input Rating70V|25V
Woofer Diameter8"
Special FeaturesAngled
