CLEARANCE Quam SYSTEM 2 8" Wall Mount Slanted Speaker 5W-25/70V White

Name: Quam SYSTEM 2 8" Wall Mount Slanted Speaker 5W-25/70V White
Brand: Quam
SKU: 244-3050
Price: 85.1 USD
Availability: InStock

QuamPart # 244-3050

Model: SYSTEM 2

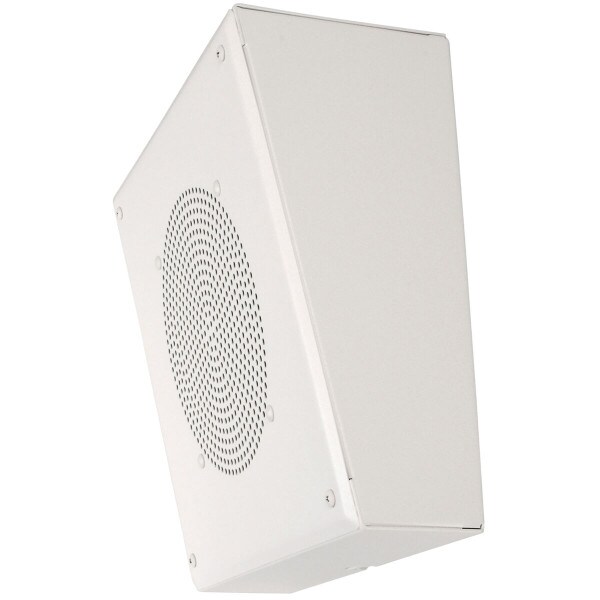

The SYSTEM 2 by Quam is a slanted full range wall mount white loudspeaker assembly with an 8" O.D and 5 watt-25/70.7V pigtail transformer.

Key Features

8" O.D. full range speaker
5W-25/70.7V pigtail transformer
For indoor environments
Program material: Signal tones, voice, and music
Made in Chicago, USA

See all items in Commercial Surface-Mount Speakers

CLEARANCE $85.10

MSRP: $103.62

Bulk Pricing

3 In Stock

Get Notified When Available

We'll send you an email when Quam SYSTEM 2 8" Wall Mount Slanted Speaker 5W-25/70V White is back in stock or available for preorder.

Ships next business day. Details

QtyQuantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

Quam SYSTEM 2 8" Wall Mount Slanted Speaker 5W-25/70V White

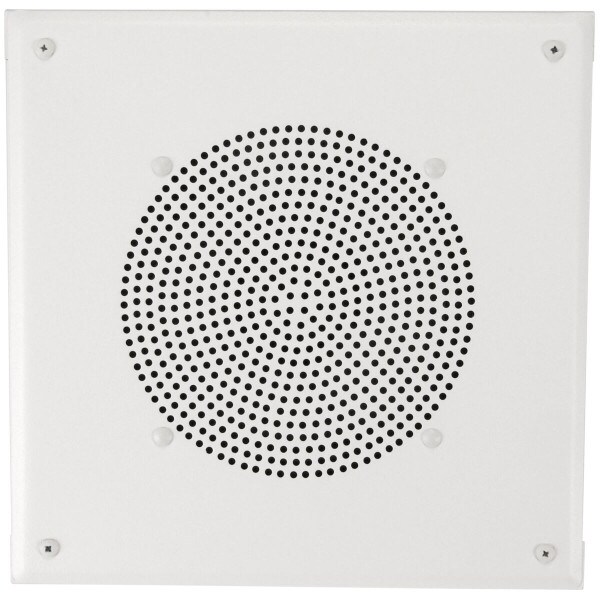

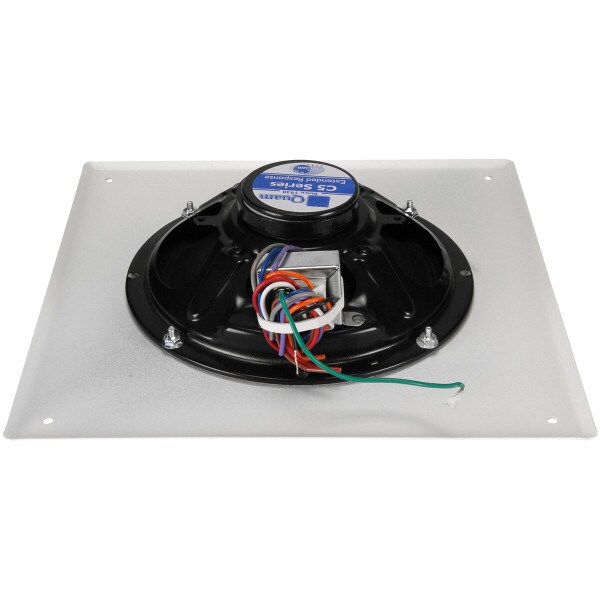

Quam's SYSTEM 2 has a 5 watt 25/70.7V pigtail transformer, 22 gauge steel baffle, and 16 gauge slanted steel enclosure. Intended use in an indoor environment, mounted on a vertical surface, downward firing for signal tones, voice, and music. Made in Chicago, USA.

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 99 dB SPL, 5W/1m • Magnet type, weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 90° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" color coded pigtails, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details
Brand	Quam
Model	SYSTEM 2
Part Number	244-3050
UPC	844632096563
Unit of Measure	Each
Weight	10

Product Specifications
Color	White
Configuration	Full-range
Input Rating	70V\|25V
Woofer Diameter	8"
Special Features	Angled
