Quam SYSTEM 12/VC 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V

1 Question, 1 Answer or
Quam
Part #244-3140

Quam SYSTEM 12/VC 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V

Quam
Part #244-3140
Model: SYSTEM 12/VC
1 Question, 1 Answer or
Quam's SYSTEM 12/VC is a 24" x 24" lay-in ceiling speaker tile 8" O.D with a 5W-25/70.7V pigtail transformer with volume control.
Key Features
  • 24" x 24" lay-in speaker tile
  • 5W-25/70.7V pigtail transformer
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $137.90
+ FREE SHIPPING
MSRP: $150.38
Save $12.48 (8%)
Bulk Pricing
Quantity:Qty: 1-7 $137.90/ea
Quantity:Qty: 8+$134.45/ea
Order in the next 0 hr 58 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 12/VC 24" x 24" Lay-In Ceiling Tile Speaker 5W-25/70V

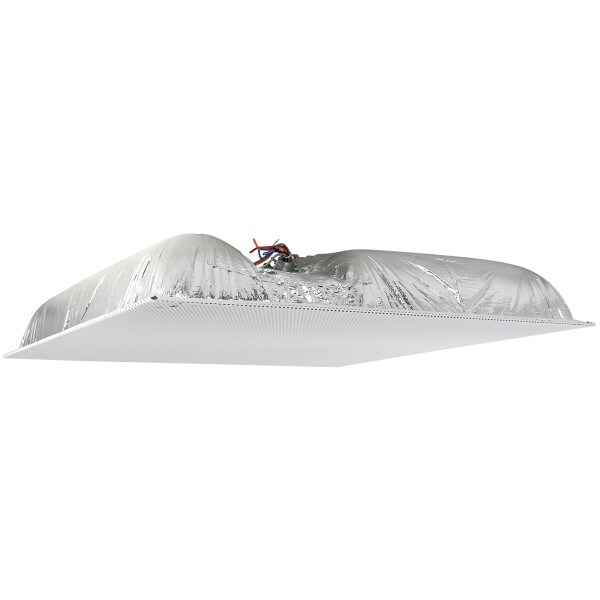

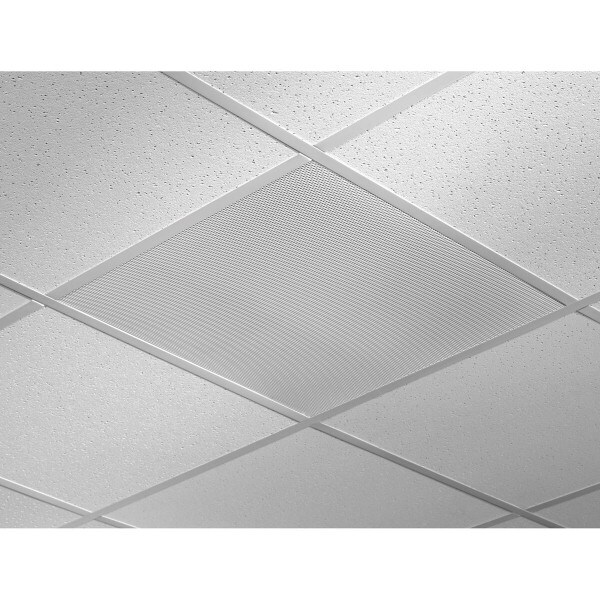

The SYSTEM 12/VC by Quam is a complete loudspeaker assembly with an 8" O.D., full range loudspeaker, 5 watt-25/70.7V pigtail transformer with volume control, perforated steel baffle, and integral molded fiber enclosure. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tones, voice, and music. Note: not UL listed. Made in Chicago, USA.

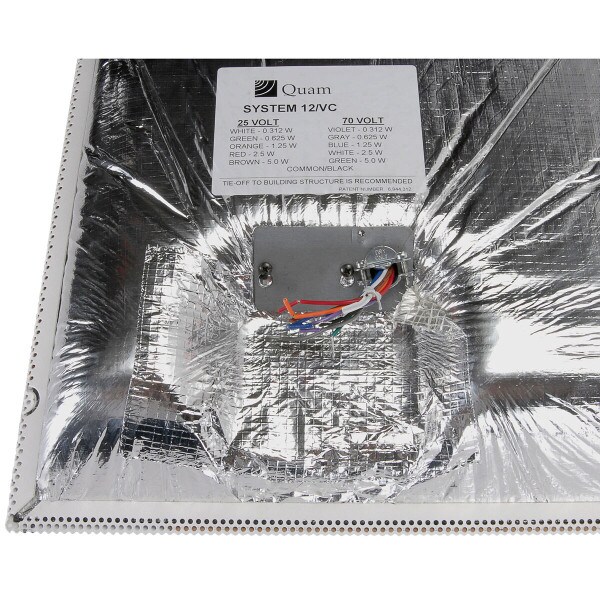

Specifications: • 25/70.7V transformer: 5, 2.5, 1.25, 0.63, 0.31 watt • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 99 dB, 5W/1m • Magnet type: weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" long labeled, tinned wires, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 12/VC
Part Number244-3140
UPC844632097386
Unit of MeasureEach
Weight7.85

Product Specifications

Input Rating70V|25V
Mounting StyleDrop-in Tile
Woofer Diameter8"
Special FeaturesEnclosed Back-Volume Control
