  • Quam SYSTEM 12/8 24" x 24" Lay-In Ceiling Tile Speaker 8 Ohm

Quam SYSTEM 12/8 24" x 24" Lay-In Ceiling Tile Speaker 8 Ohm

QuamPart # 244-3138
Model: SYSTEM 12/8
Quam's SYSTEM 12/8 is a 24" x 24" lay-in ceiling speaker tile 8" O.D with an 8 ohm nominal impedance.

Key Features

  • 24" x 24" lay-in speaker tile
  • 8 ohm nominal impedance
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $100.72
+ FREE SHIPPING
MSRP: $116.42
Save $15.70 (13%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Quam SYSTEM 12/8 24" x 24" Lay-In Ceiling Tile Speaker 8 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam SYSTEM 12/8 24" x 24" Lay-In Ceiling Tile Speaker 8 Ohm

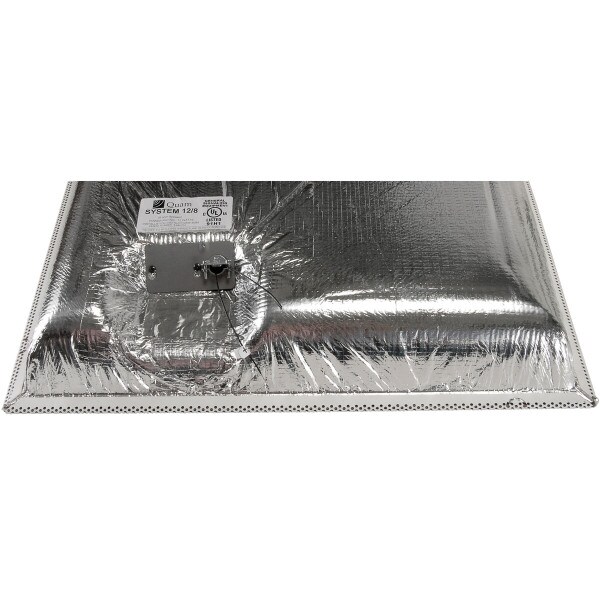

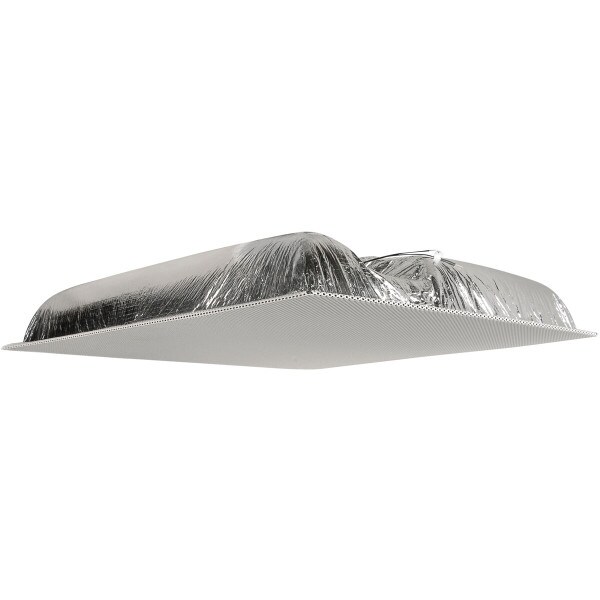

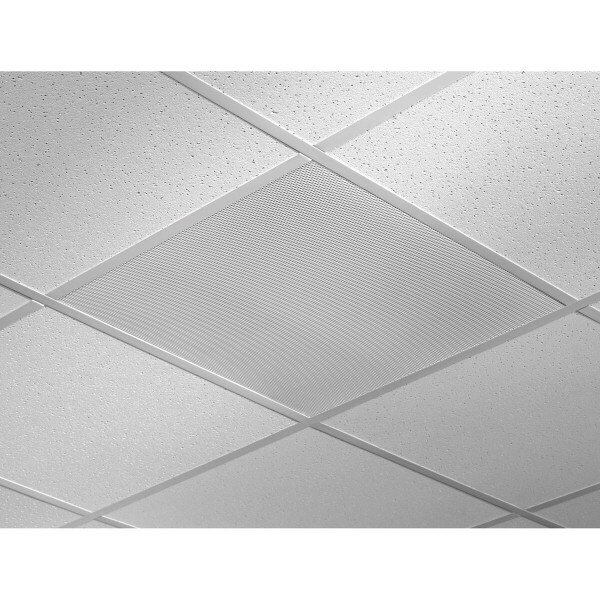

The SYSTEM 12/8 by Quam is a complete loudspeaker assembly with an 8" O.D., full range loudspeaker, perforated steel baffle, and integral molded fiber enclosure. Nominal impedance is 8 ohms. The SYSTEM 12/8 is UL Listed 1480- (UEAY, UAEY7-Canada) when installed in accordance with supplied installation instructions, requirements of NEC and AHJ. Intended use in an indoor environment, mounted parallel to floor plane in a 24" wide suspended ceiling tile grid for signal tones, voice, and music. Made in Chicago, USA.

Specifications: • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Max. system output: 103 dB, 12W/1m • Magnet type: weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 65 Hz - 17 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Audio connection: 7" long labeled, tinned wires, pre-cut.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
ModelSYSTEM 12/8
Part Number244-3138
UPC844632096792
Unit of MeasureEach
Weight7

Product Specifications

Input Rating8 ohm
Mounting StyleDrop-in Tile
Woofer Diameter8"
Special FeaturesEnclosed Back-UL1480
