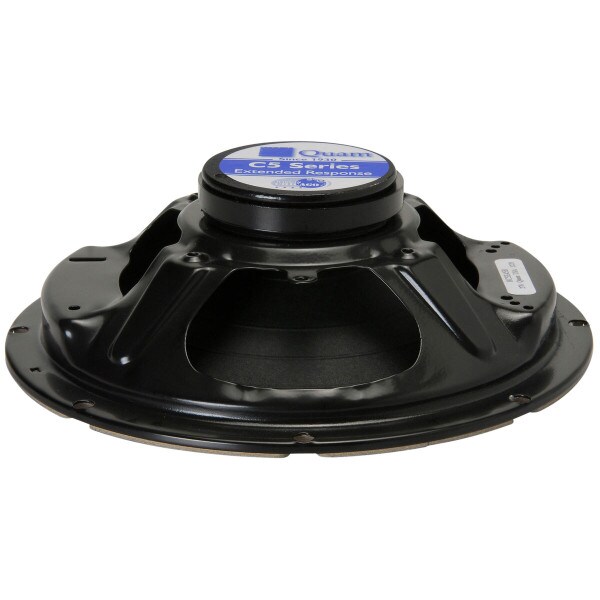

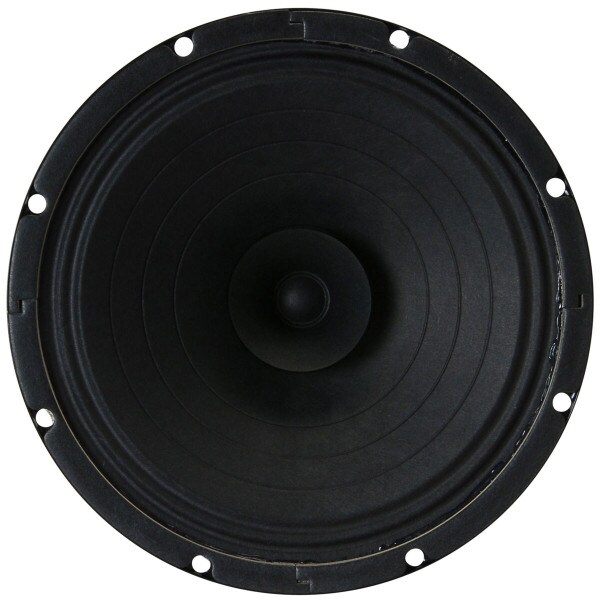

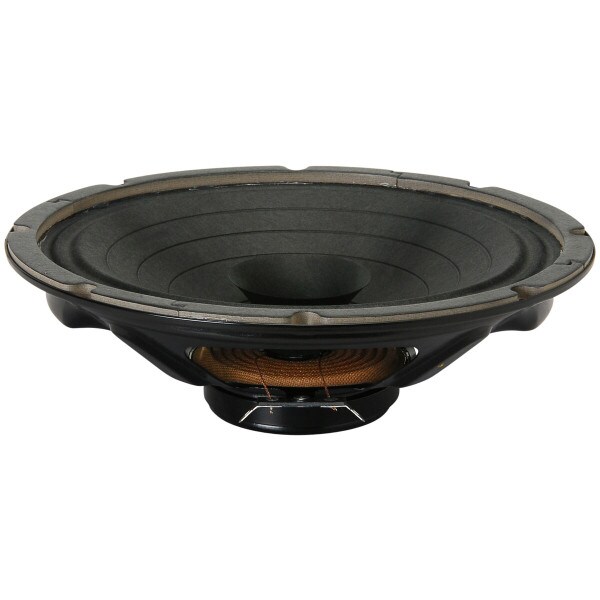

Quam 8C5Z45 8" Speaker 45 Ohm

QuamPart # 244-3208
Model: 8C5Z45
Quam's 8C5Z45 is an 8" O.D. 45 ohm loudspeaker with a concentric mount hard fiber HF cone.

Key Features

  • 8" O.D. loudspeaker
  • For indoor environments
  • Program material: Signal tones, voice, and music
  • Made in Chicago, USA
Your Price: $21.90
Bulk Pricing
Quantity:Qty: 1-11 $21.90/ea
Quantity:Qty: 12+ $21.47/ea
In Stock
Get Notified When Available

We'll send you an email when Quam 8C5Z45 8" Speaker 45 Ohm is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Quam 8C5Z45 8" Speaker 45 Ohm

The Quam 8C5Z45 is an 8" O.D., 45 ohm loudspeaker with a concentric mount hard fiber HF cone. The finish is a black baked epoxy hybrid. Intended use in a wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker system. Use in an indoor environment for signal tones, voice, and music. Made in Chicago, USA.

Specifications: • Average sensitivity: 92 dB 1W/1m • Power rating: 12 watts RMS • Calculated output: 103 dB SPL, 12W/1m • Magnet type, weight: BeFe ceramic, 4.8 oz. nominal • Frequency response: 70 Hz - 15 kHz • Nominal coverage angle: 100° included angle, -6 dB/ 2 kHz, half space • Mounting: Eight 1/4" holes spaced 45° apart on 7-5/8" circle • Audio connection: 0.205" spade lug.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandQuam
Model8C5Z45
Part Number244-3208
UPC844632097577
Unit of MeasureEach
Weight1.42

Product Specifications

Mounting StyleIn-ceiling
Woofer Diameter8"
Special FeaturesWithout Baffle
