Quam 4C3PA 4" Speaker 8 Ohm

Name: Quam 4C3PA 4" Speaker 8 Ohm
Brand: Quam
SKU: 244-3206
Price: 19.9 USD
Availability: OutOfStock
Rating: 4.3 (3 reviews)

QuamPart # 244-3206

Model: 4C3PA

Read 3 Reviews | 4 Questions, 8 Answers or

Quam's 4C3PA 4" square frame speaker is 8 ohms with a cloth surround.

Key Features

4" square frame loudspeaker
For indoor environments
Program material: Signal tones, voice, and music
Made in Chicago, USA

See all items in Commercial Ceiling Speakers

Your Price: $19.90

MSRP: $20.02

Bulk Pricing

Back-Ordered

Get Notified When Available

We'll send you an email when Quam 4C3PA 4" Speaker 8 Ohm is back in stock or available for preorder.

Estimated back in stock 7/23/2025

Alert Me When Available

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Overview

Quam 4C3PA 4" Speaker 8 Ohm

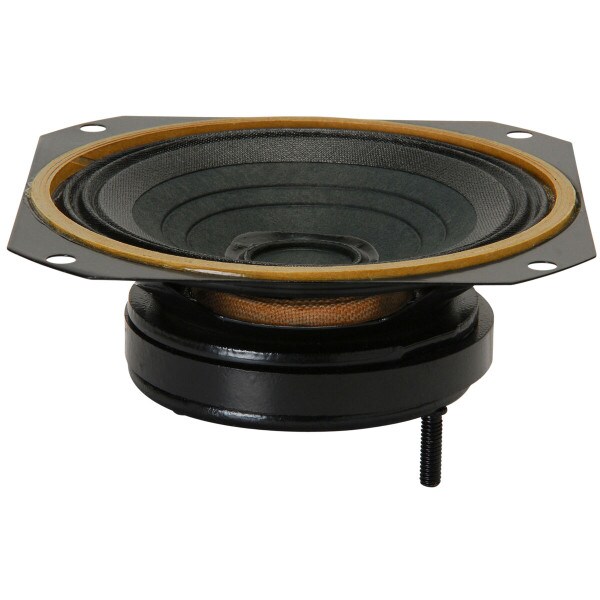

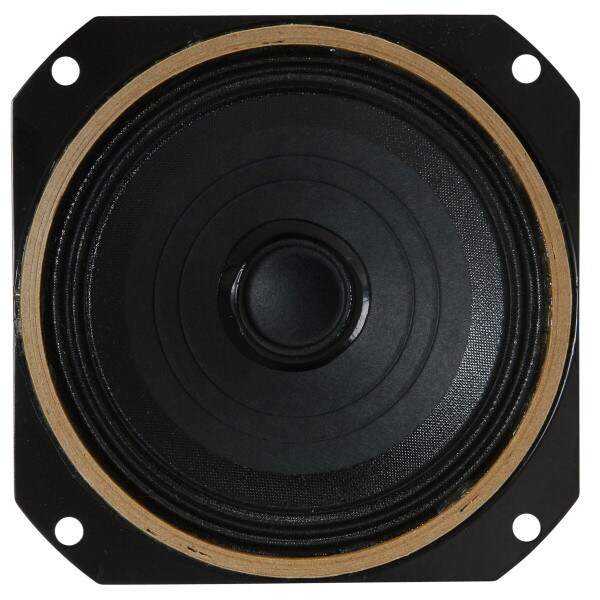

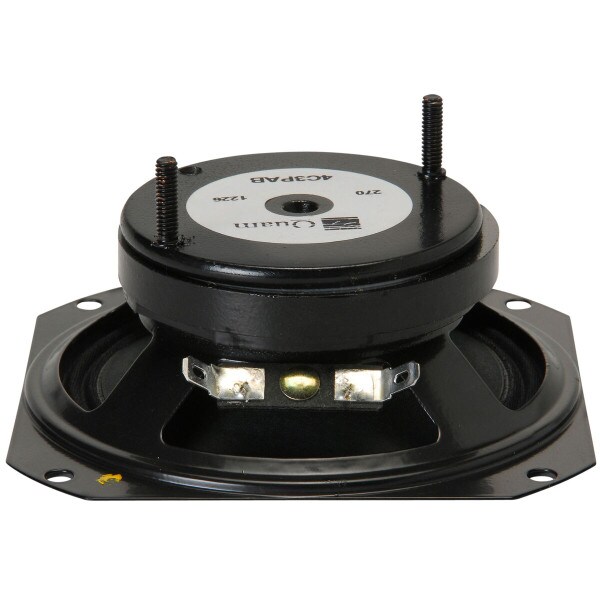

The 4C3PA by Quam is a 4" square frame, 8 ohm loudspeaker with cloth surround. Finish is a black baked hybrid epoxy. Intended use in an indoor environment as a wide frequency response replacement loudspeaker or combined with recommended Quam components to form a complete loudspeaker assembly. For signal tones, voice, and music. Made in Chicago, USA.

Specifications: • Average sensitivity: 96 dB 1W/1m • Power rating: 10 watts RMS • Calculated output: 107 dB SPL, 10W/1m • Frequency response: 80 Hz - 10 kHz • Nominal coverage angle: 90° included angle, -6 dB/ 2 kHz, half space • Mounting: Four 1/4" holes spaced 90° apart on 4-11/16" circle • Audio connection: 0.205" spade lug.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details
Brand	Quam
Model	4C3PA
Part Number	244-3206
UPC	844632097560
Unit of Measure	Each
Weight	0.95

Product Specifications
Input Rating	8 ohm
Mounting Style	In-ceiling
Woofer Diameter	4"
Special Features	Without Baffle
