QSC SPA Series SPA2-60 2 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

QSC AudioPart # 245-6931
Model: SPA2-60
1 Question, 2 Answers or

The QSC SPA Series comprises compact, EnergyStar qualified power amplifiers designed for versatile audio applications. The SPA2-60 two-channel model delivers up to 60 watts per channel into 4Ω and 8Ω loads, with bridgeable output providing up to 200 watts into low impedance and up to 250 watts into 70V or 100V systems. The efficient Class-D design and convection cooling ensure quiet operation and reduced energy consumption.

Key Features

  • 70V/100V/4/8 ohm for maximum flexibility and value
  • Bridgeable output to deliver higher power when necessary
  • EnergyStar certified to conserve energy and operational costs
  • Auto-Ramp provides quiet startup and power-down​ after 25 minutes of inactivity
  • Convection cooled, Class-D technology amplifier
  • Rack mountable 1U, half rack width to reduce space requirements
Your Price: $795.00
+ FREE SHIPPING
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when QSC SPA Series SPA2-60 2 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

QSC SPA Series SPA2-60 2 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

QSC SPA Series SPA2-60 2 Channel EnergyStar 70V/100V/8 Ohm/4 Ohm Amplifier

The QSC SPA Series amplifiers are engineered to deliver reliable audio amplification in a compact form factor. The SPA2-60's two-channel design provide up to 60 watts per channel into both 4Ω and 8Ω loads, ensuring consistent performance across different speaker configurations. For applications requiring higher power, this series offers bridgeable outputs, delivering up to 200 watts into low impedance and up to 250 watts into 70V or 100V systems, making it versatile for both low-Z and high-Z applications. ​

One of the standout features of the SPA Series is its EnergyStar qualification, attributed to its efficient Class-D amplifier design. This efficiency not only conserves energy but also reduces operational costs, aligning with modern sustainability goals. The amplifiers incorporate Auto-Ramp circuitry, which ensures quiet and rapid power-up from standby when a signal is detected and seamless power-down after 25 minutes of inactivity. This feature significantly reduces power consumption without compromising performance, making it ideal for environments where energy efficiency is paramount.

Installation flexibility is another key advantage of the SPA Series. Their rack-mountable 1U, half-rack width enclosures allow for efficient use of space in equipment racks. Additionally, the amplifiers come with unique mounting hardware, enabling easy under-table and wall-mounting options. This adaptability ensures that the SPA Series can be seamlessly integrated into a variety of settings, from corporate meeting rooms to educational facilities, providing high-quality audio amplification without imposing on aesthetic or spatial considerations. ​

The QSC SPA Series amplifiers combine advanced design with robust construction to deliver high-quality sound in any environment. Their versatility, durability, and superior audio performance make them an excellent choice for enhancing your audio experience.

Specifications

  • Channels: 2
  • Stereo Mode (all channels driven)
    -8Ω: 60W
    -4Ω: 60W
  • Bridged Outputs (all channels driven)
    -8Ω & 4Ω: 200W
    -70V: 250W
    -100V: 250W
  • Frequency response (4 Ω and 8 Ω): 20 Hz - 20 kHz +/- 0.1 dB
  • Signal to noise (20 Hz - 20 kHz): >100 dB
  • Input sensitivity: 1.23 V (+4 dBu)
  • Gain at 8Ω: 25.0 dB
  • Output circuitry: Class D
  • Input impedance: >10k, balanced or unbalanced
  • Maximum input level: 12.3 V (+24 dBu)
  • Cooling: Convection
  • Input connectors: 3.5 mm Euro, 5 position (green)
    3.5 mm Euro, 10 position (green)
  • Remote connectors: 3.5 mm Euro, 5 position (black)
    3.5 mm Euro, 10 position (black)

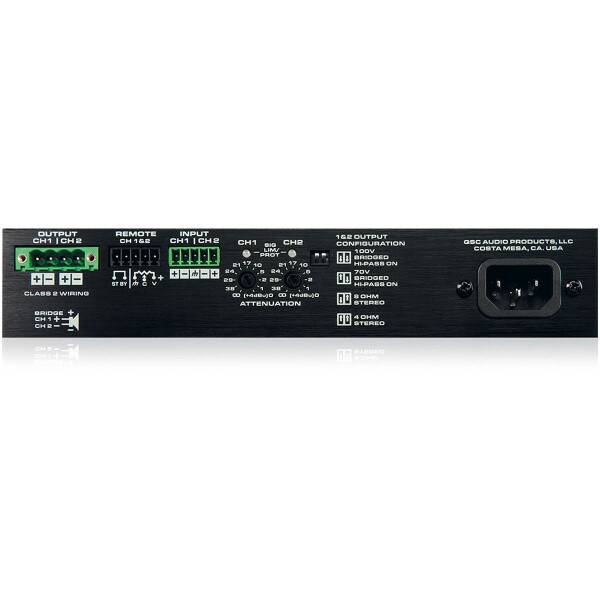

  • Output connectors: 5 mm Euro, 4 position (green)

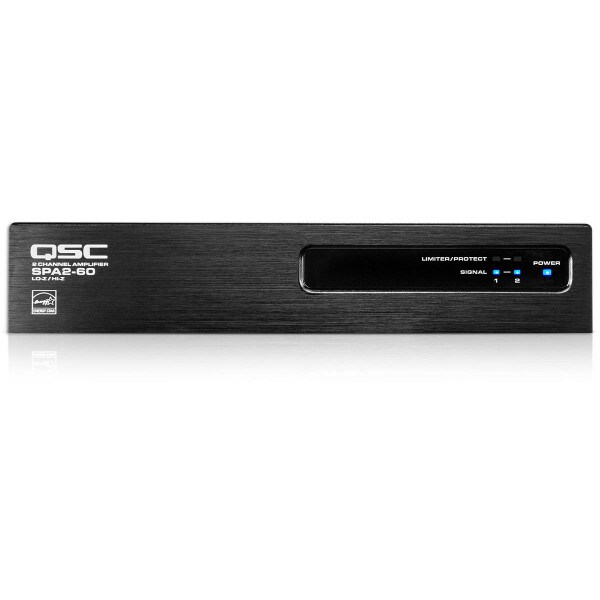

  • Front panel indicators: Power, per channel Signal, per channel Protect/Limit
  • Rear panel indicators: Bi-Color LED Signal/Protect/Limit per channel
  • Controls: 4 Ω/8 Ω/70 V Bridged Highpass On/100 V Bridged Highpass (per channel pair)
  • General purpose inputs: Remote volume, remote standby, on 3.5 mm connectors (10k potentiometer is not included)
  • Highpass filter: 80 Hz in Bridged 70 V & 100 V
  • Dimensions: 1.7” x 8.7” x 9.5” (43 mm x 220 mm x241 mm)
  • Net weight: 3.5 lbs (1.1 kg)
  • Shipping weight: 6 lbs (2.3 kg)
  • Power requirements: Universal Power Supply 100 - 240 VAC, 50 - 60 Hz with active power factor correction
  • Agency approvals: UL, CE, Energy Star, RoHS/WEEE compliant, FCC Class B (Conducted and Radiated emissions), UL 2043 with plenum kit accessory
  • Carton contents: IEC Cable, quick start guide, connector pack, rack mount ears, mounting brackets

Product Details

BrandQSC Audio
ModelSPA2-60
Part Number245-6931
UPC684284066275
Unit of MeasureEach
Weight6.45

Product Specifications

Power Output (RMS @ 70V)201W to 400W
Weight Range< 10 lbs.
