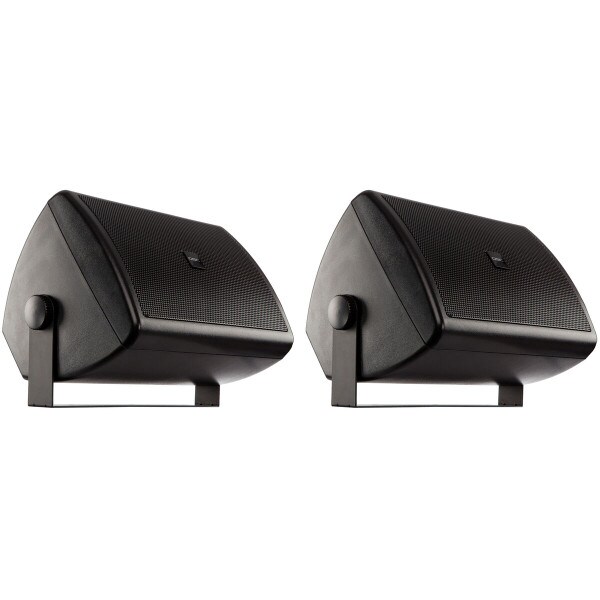

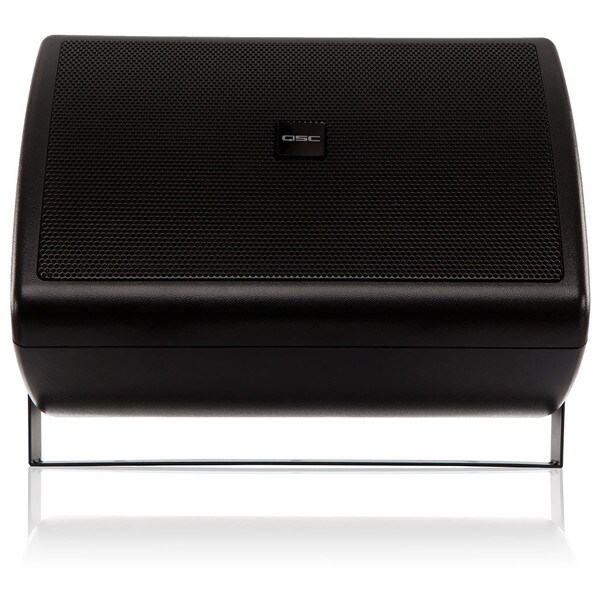

QSC AC-S6T-BK 6-1/2" Two-Way Surface Mount Speaker Pair 70V / 100V / 8 Ohm - BlackUntil now, we've had to compromise when choosing an installation speaker. Choose a speaker that's affordable, but it doesn't sound all that great. Choose a speaker that sounds great, and the budget goes to a million dollars. With the AcousticCoverage series from QSC, you can have the best of both worlds!
AcousticCoverage is designed to offer sound system designers and installers a cost effective solution for applications where voice reinforced coverage is of primary concern, while providing improved musicality often not seen in typical paging or BGM class products. Achieving remarkable performance for the cost, AcousticCoverage is ideally suited for wide area deployments such as office buildings, healthcare facilities, transportation terminals, and other cost sensitive installations.
Classic styling, ease of installation, affordability, and the flexibility to work in a variety of system and application types all team up to make AcousticCoverage an easy choice. Sold in pairs only.

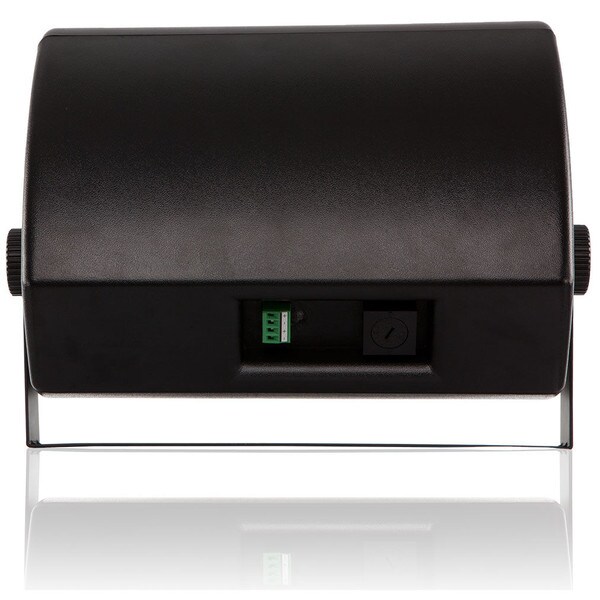

Specifications: • Frequency range (-10 dB): 60 - 20,000 Hz • Nominal coverage: 130° conical • Power rating (continuous IEC60268-1 noise signal, 2 hours): 30 watts • Broad-band sensitivity (based on nominal impedance, full-space, 1w/1m): 86 dB • Maximum SPL: 101 dB (continuous); 107 dB (peak) • Rated impedance: 8 ohms • Transformer taps: (70V) 30, 15, 7.5, 3.7, 1.9 watts; (100V) 30, 15, 7.5, 3.8 watts; 8 ohm bypass • Input connector: Euroblock style with parallel output • Enclosure material: UV treated, high impact ABS polymer • Dimensions: 11.9" x 10.5" x 7.8" • Weight: 8.3 lbs. • Included accessories: yoke mount system.
Parts Express is authorized to ship QSC products only within the United States, and will only ship QSC products to addresses located within the USA.
Constant Voltage (70-Volt) Audio Systems
Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire. The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.
QSC AC-S6T Manual
