We'll send you an email when Pyramid Studio Pro WH10 10" Woofer Accordian Surround is back in stock or available for preorder.

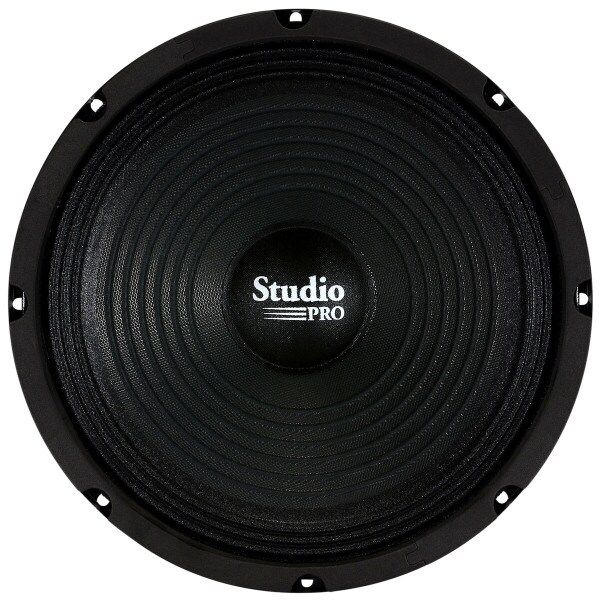

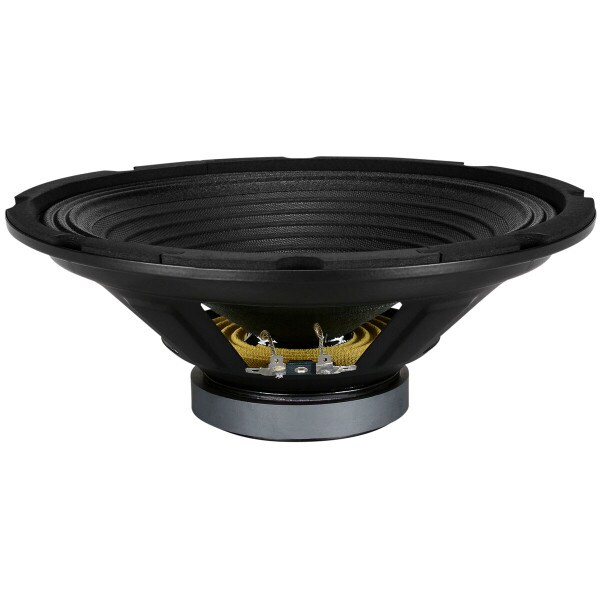

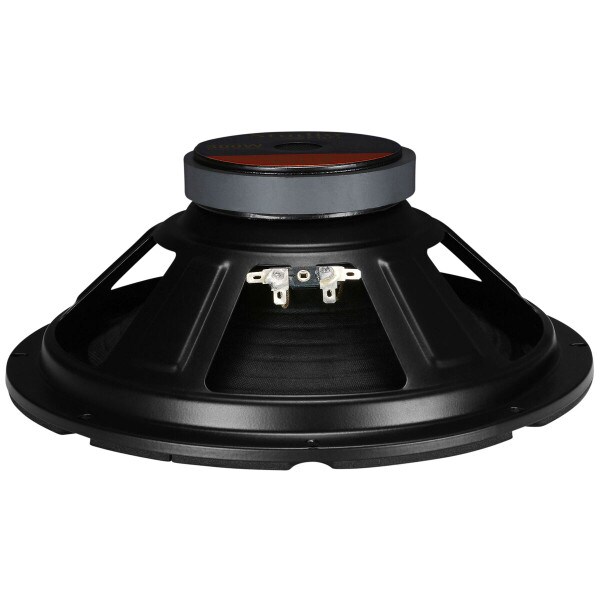

Quality replacement woofers for old, blown drivers in P.A. and musical instrument speaker cabinets. These rugged, "road-ready" woofers feature ribbed paper cones, treated cloth accordian surrounds, high power-handling capability, huge strontium magnets and bumped backplates.
Product Details | |
|---|---|
| Brand | Pyramid |
| Model | WH10 |
| Part Number | 290-262 |
| UPC | 068888703673 |
| Unit of Measure | Each |
| Weight | 4.06 |
Product Specifications | |
|---|---|
| Nominal Diameter | 10" |
| Power Handling (RMS) | 125 Watts |
| Power Handling (MAX) | 250 Watts |
| Impedance | 8Ω |
| Frequency Response | 45 to 7,000Hz |
| Sensitivity | 92dB 2.83V/1m |
| Voice Coil Diameter | 1.5" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 74.8Hz |
| DC Resistance (Re) | 8Ω |
| Mechanical Q (Qms) | 11.18 |
| Electromagnetic Q (Qes) | 2.38 |
| Total Q (Qts) | 1.96 |
| Compliance Equivalent Volume (Vas) | 1.12ft³ |
| Maximum Linear Excursion (Xmax) | 1.5mm |
Materials of Construction | |
|---|---|
| Cone Material | Paper |
| Surround Material | Cloth |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 10.1" |
| Baffle Cutout Diameter | 9.25" |
| Depth | 3.625" |
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 1.5ft³ |
| Sealed F3 | 67.2Hz |
