  • Pyle PHSP20 19.5" 100 Watt PA Horn Speaker 70V

Pyle PHSP20 19.5" 100 Watt PA Horn Speaker 70V

Pyle AudioPart # 248-4434
Model: PHSP20

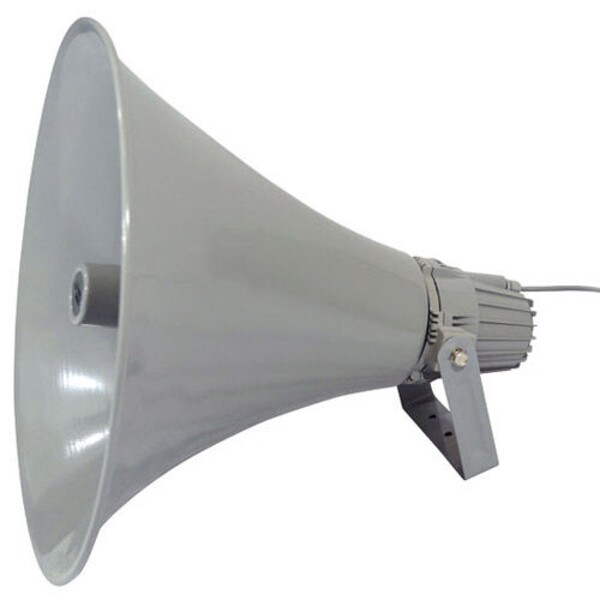

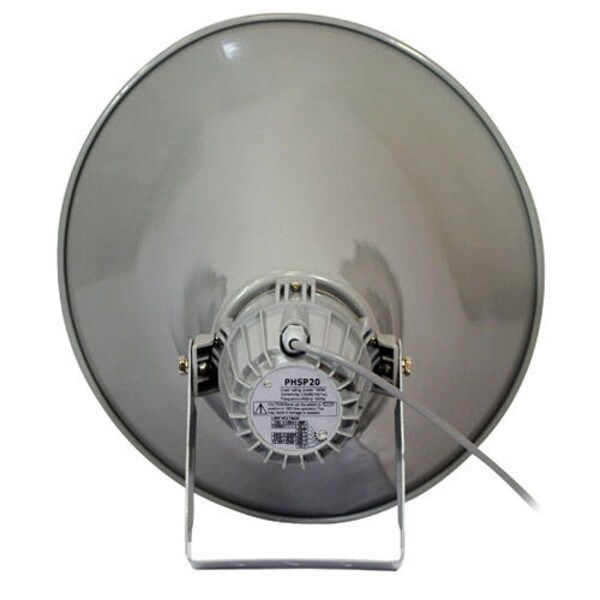

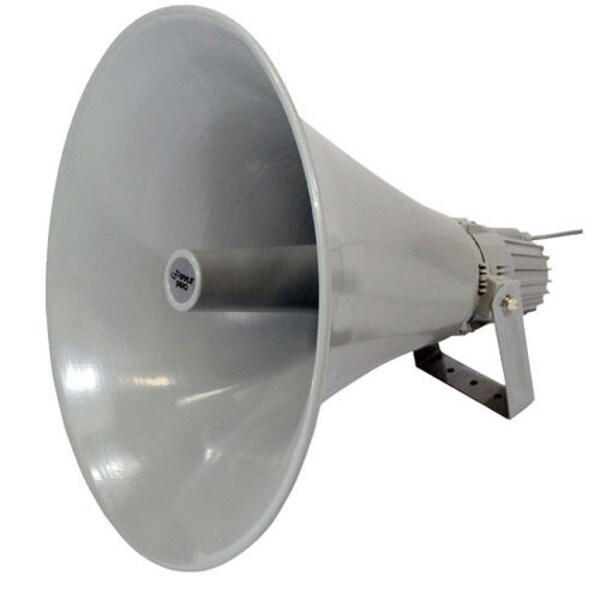

Pyle's PHSP20 19.5" PA horn speaker has a gray aluminum housing and a power/load rating of 100 watts.
Your Price: $136.41
+ FREE SHIPPING
MSRP: $272.99
Save $136.58 (50%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Pyle PHSP20 19.5" 100 Watt PA Horn Speaker 70V is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Pyle PHSP20 19.5" 100 Watt PA Horn Speaker 70V

Pyle's PHSP20 19.5" PA horn speaker has a gray aluminum housing and a power/load rating of 100 watts. Mounting bracket and hardware included.

Specifications: • Power/load rating: 100 watts • Nominal impedance: 16 ohms • Frequency range: 400 Hz - 5 kHz • 70V Transformer tapping: 100, 50, 25, and 12.5 watts • 100V Transformer tapping: 100, 50, and 25 watts • SPL (@ 1W/1m): 105 dB • Dimensions: 19.5" H x 19.5" W x 19" D.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandPyle Audio
ModelPHSP20
Part Number248-4434
UPC068888898225
Unit of MeasureEach
Weight15.7

Product Specifications

Speaker TypePA Horn Speaker

Specifications

Q&A

Reviews

Manuals & Resources
