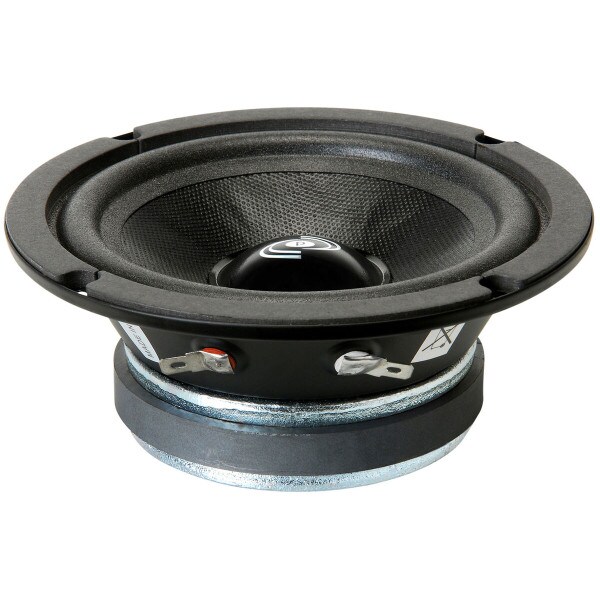

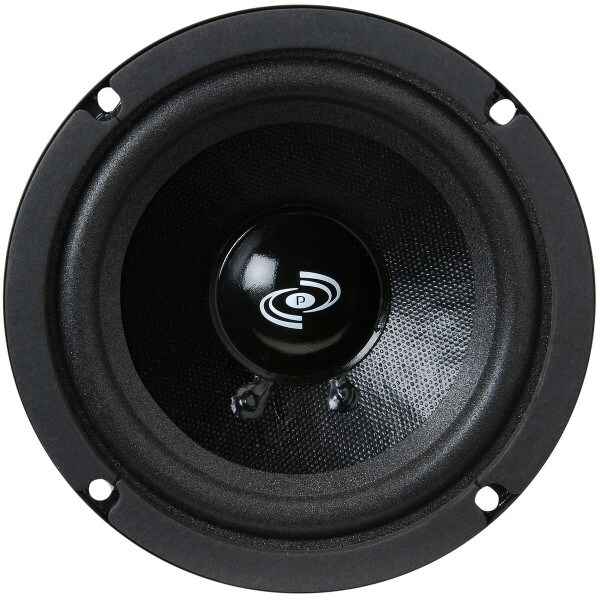

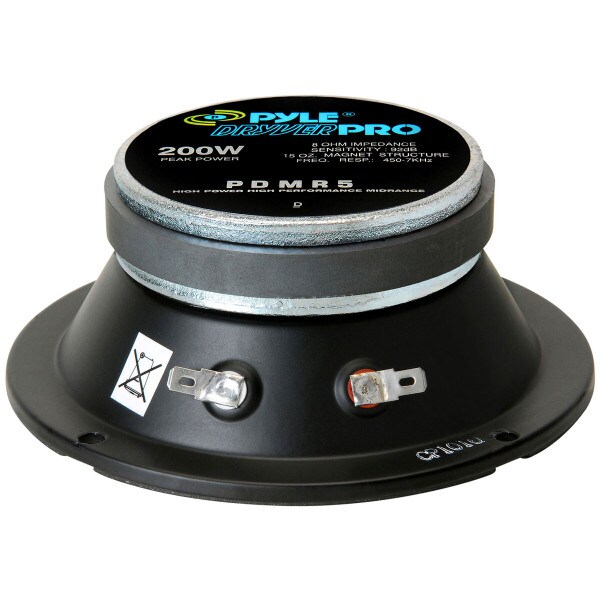

Pyle PDMR5 5" Sealed Back Midrange Speaker Driver

Pyle AudioPart # 292-200
Model: PDMR5
The Pyle Pro PDMR5 high performance 5" sealed back midrange is ideal for use in either 2 or 3-way speaker systems where high power handling and efficiency are desired in the midrange frequencies. The sealed back design allows for cabinet installation without a separate midrange enclosure.

Key Features

  • Sealed back design allows for cabinet installation without a separate midrange enclosure
  • Coated paper cone
  • 1" high temperature aluminum voice coil
  • 15 oz. magnet structure
Your Price: $16.18
MSRP: $38.99
Save $22.81 (59%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Pyle PDMR5 5" Sealed Back Midrange Speaker Driver is back in stock or available for preorder.

Expected back in stock any day
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Pyle PDMR5 5" Sealed Back Midrange Speaker Driver

The Pyle Pro PDMR5 high performance 5" sealed back midrange is ideal for use in either 2 or 3-way speaker systems where high power handling and efficiency are desired in the midrange frequencies. The sealed back design allows for cabinet installation without a separate midrange enclosure. Features a coated paper cone, 1" high temperature aluminum voice coil, and 15 oz. magnet structure.

Product Details

BrandPyle Audio
ModelPDMR5
Part Number292-200
UPC068888713085
Unit of MeasureEach
Weight2.3

Product Specifications

Nominal Diameter5"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance
Frequency Response450 to 7,000Hz
Sensitivity92dB 2.83V/1m
Voice Coil Diameter1"

Materials of Construction

Cone MaterialCoated Paper
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.125"
Baffle Cutout Diameter4.375"
Depth2"
# Mounting Holes4
