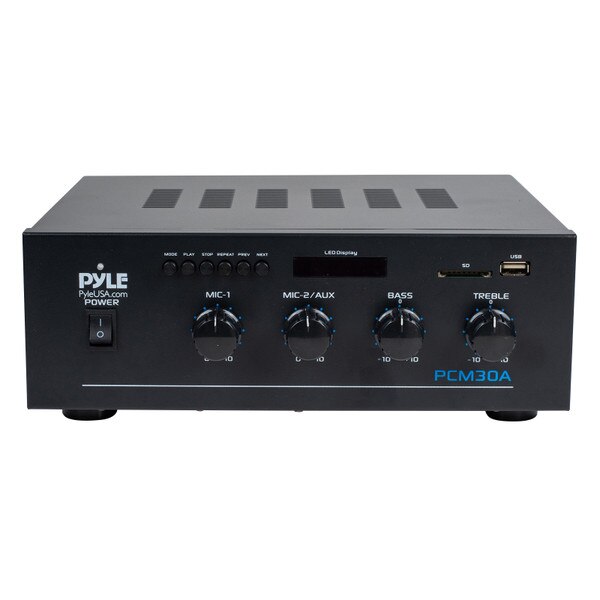

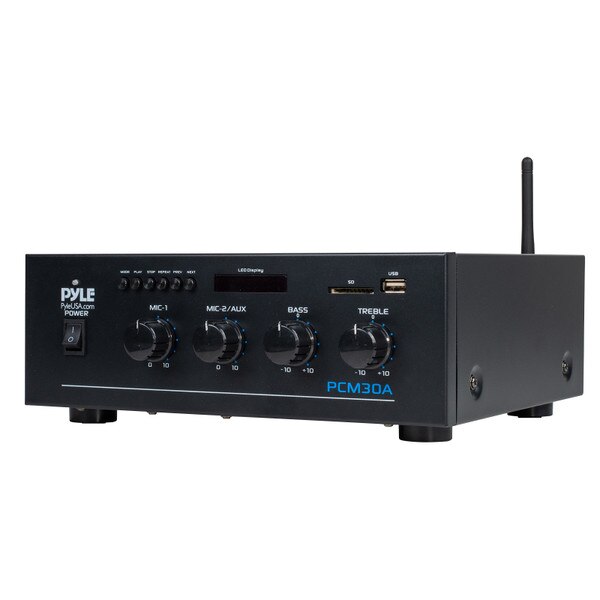

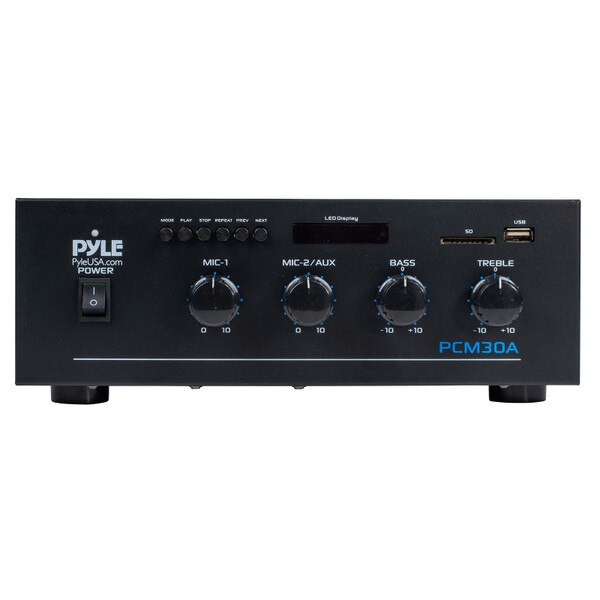

Pyle PCM30A 30W PA Mixer-Amplifier with 25V & 70V Outputs

Pyle AudioPart # 248-4262
Model: PCM30A
Pyle's PCM30A power amplifier offers you the power, versatility, and wide frequency response to handle the amplification of music and voice you need in a professional sound system.

Key Features

  • Bass and treble tone controls
  • AUX RCA input
  • Mute terminals
  • TEL/Paging terminals
  • Paging output level control
  • MIC/TEL VOX level control (Internal)
  • Speaker terminals (COM, 4 ohm, 8 ohm, 16 ohm, 25V, 70V)
Your Price: $136.41
+ FREE SHIPPING
MSRP: $138.99
Save $2.58 (2%)
Bulk Pricing
Out of Stock
Get Notified When Available

We'll send you an email when Pyle PCM30A 30W PA Mixer-Amplifier with 25V & 70V Outputs is back in stock or available for preorder.

Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Pyle PCM30A 30W PA Mixer-Amplifier with 25V & 70V Outputs

Pyle's PCM30A 30 watt power amplifier provides the juice you need for your 25V or 70V PA speaker system. Connect up two mics using the rear terminals, plus an auxiliary RCA input. Each input has an independent gain control, and you can also adjust the tone of the sound using the rotary treble and bass faders.

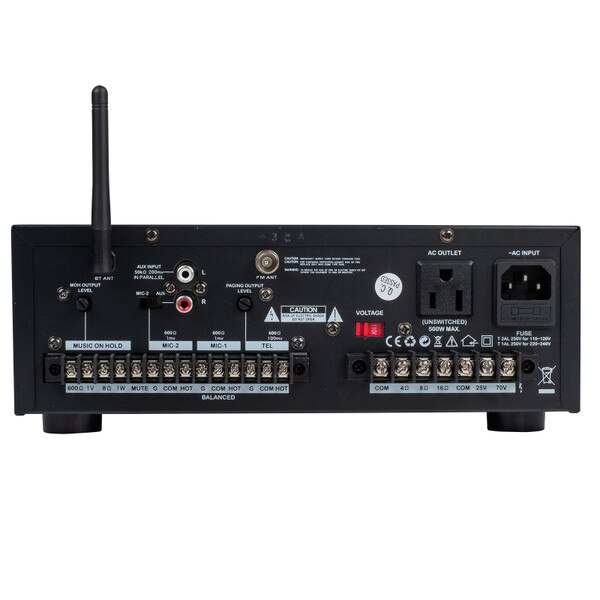

The rear barrier strip offers a wide array of speaker output options. This unit is also equipped with an unswitched 500W max grounded power outlet on the back. Rounding out the capabilities of this amp is the Music-On-Hold function, replaceable fuse, and detachable AC power input. Runs on 110 or 220 V.

The wide range of paging and talkover functions make this amplifier perfect for meeting halls, auditoriums, small restaurants, and schools. If you're looking for great sound with the ability to deliver messages when needed, this is the amp for you.

Specifications:

• Output power: 30 watts x 1 RMS, 60 watts max
• Frequency response (±3 dB): 50 Hz to 15 kHz
• THD (at rated output power): 1% or less at 1 kHz
• Signal to Noise Ratio (A-weighted):
Mic: 55 dB
Aux: 70 dB
Tel: 60 dB
• Input impedance:
Aux: 200 mV, 50kΩ, unbalanced
Mic 1/Mic 2: 1 mV, 600Ω, balanced
Tel/Page: 100 mV, 600Ω, balanced
• Speaker outputs: 4Ω, 8Ω, 16Ω; 25V and 70V line
• Monitor (MOH) output: 600Ω 1V and 8Ω 1W
• Mute level (Aux/Mic 2): 40 dB
• Tone controls (±10 dB):
Bass: 100 Hz
Treble: 10 kHz
• Power requirement: 120/230 VAC, 60/50 Hz
• Dimensions: 10.7" W x 3.46" H x 8.86" D (272 x 88 x 225 mm)
• Net weight: 9.79 lbs.

Constant Voltage (70-Volt) Audio Systems

Audio distribution systems, especially those commonly used in department stores, warehouses, restaurants, etc., require that many loudspeakers be driven from a single audio amplifier over long runs of speaker wire.  The "constant voltage" or "high impedance distribution" audio systems can be complex to understand at first, however, provides many advantages. Learn how to design your own 70-volt or 25-volt loudspeaker system.

Learn More

Product Details

BrandPyle Audio
ModelPCM30A
Part Number248-4262
UPC068888896900
Unit of MeasureEach
Weight11.35

Product Specifications

Power Output (RMS @ 70V)25W to 50W
Weight Range10 to 19 lbs.
