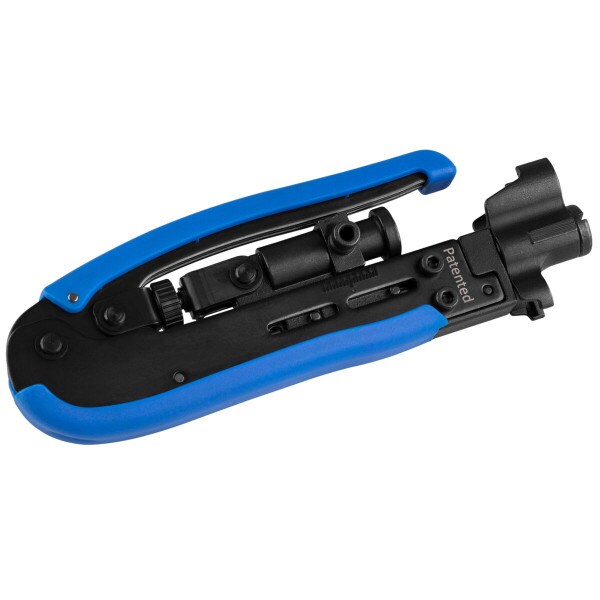

Universal Compression Connector Crimp Tool

Parts ExpressPart # 360-052
This one patented compression tool crimps connectors for RG-11, RG-6, and RG-59 coaxial cables. It includes one interchangeable die that crimps F, BNC, and RCA compression connectors by Belden Snap-N-Seal and F-Conn, Platinum Tools SealSmart, Ideal, and many other brands.

Key Features

  • Precision carbon steel and dependable patented design
  • Single changeable die eliminates extra loose pieces to keep track of
  • Adjustable compression thumb wheel for quick modifications
  • Permanently attached cable holder rotates for thicker RG-11 coax cable
Your Price: $41.98
MSRP: $65.99
Save $24.01 (36%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Universal Compression Connector Crimp Tool is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Universal Compression Connector Crimp Tool

Why carry more than one compression tool when this one does all three types of connectors and cables? Its all-in-one patented design is perfect for installers who do not have time to look for multiple compression tools and dies to do the job. The interchangeable precision carbon steel die and handle hold up to everyday use and make a tight compressed seal for F, BNC, and RCA connectors. Rotate the permanently attached cable guide to switch from RG-6 and RG-59 to thicker RG-11 coaxial cable. The tool's handle has a durable plastic cover for a comfortable grip. 7" x 2" overall dimensions enable this toll to fit in most tool belts for convenience.

To use this tool, select the type of connector you are going to use. Remove and rotate the crimp die/plunger and insert it back in with the corresponding connector type facing out towards the open end of the tool. The coax cable used must be stripped according to the connector's instructions and the connector must be twisted into place before placing into the crimper. You must push or twist until the white insulator reaches the bottom of the nut on F-connectors before crimping. Twist the end of the tool to the correct cable size RG59, RG6, and RG6 quad shield, or RG-11. Open the handle and place the connector into the tool between the crimp die and the cable selector so the cable runs out of the tool. Once your cable and connector are inserted, twist the rotating dial to the correct compression level before squeezing the tool closed, and then reopening it to free your finished cable. If you need to compress further, adjust the dial and squeeze the handle again.

Product Details

BrandParts Express
Part Number360-052
UPC848864049823
Unit of MeasureEach
Weight1.2
