  • Power Supply Module with Micro USB for 6.5" x 2.1" Breadboards

CLEARANCE Power Supply Module with Micro USB for 6.5" x 2.1" Breadboards

Parts ExpressPart # 321-500
Read 1 Review or
Plug this 5 VDC power supply module directly into your 6.5" x 2.1" bread boards (MB-102) without any loose wires. All you need is a powered micro USB cable (sold separately).

Key Features

  • Accepts AC adapters with 2.1 x 5.5mm tip + plug with 6.5 to 12 VDC or USB power supply
  • Dual output voltage has a jumper to select 3.3 or 5 VDC
  • Built-in push button power switch and status light for convenience

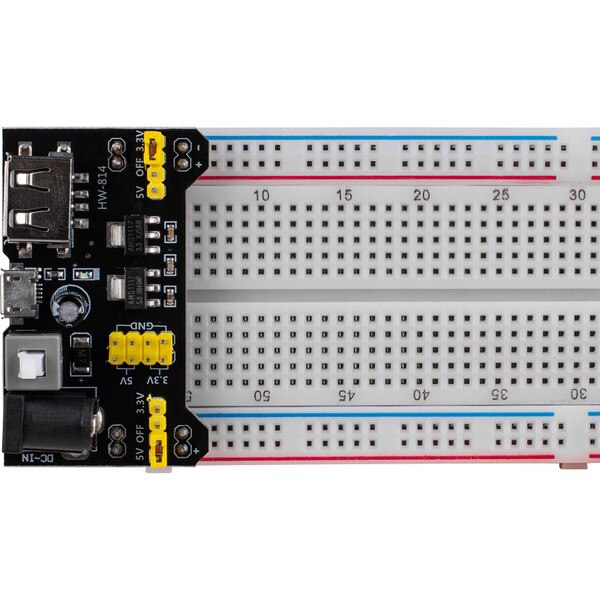

  • Plugs directly into MB-102 bread boards and supplies power to both sides without any wires
  • Works perfect with Arduino projects
CLEARANCE $1.99
MSRP: $6.00
Save $4.01 (67%)
Bulk Pricing
291 In Stock
Get Notified When Available

We'll send you an email when Power Supply Module with Micro USB for 6.5" x 2.1" Breadboards is back in stock or available for preorder.

Order in the next 7 hr 37 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Power Supply Module with Micro USB for 6.5" x 2.1" Breadboards

Use this power supply module to securely add power to your MB-102 bread boards. You don't have to worry about running separate positive and negative wires between power supplies and your bread board. These wires easily pop out and are always suppling power with no easy way to switch the bread board off. This power supply module has a built-in on/off switch and an LED light to notify when power is present. The dual voltage output supplies power to both sides of the MB-102 bread board with one power supply. You have the ability to use standard micro or USB-A power, or an AC adapter that has a 2.1 x 5.5mm tip positive plug with power output between 6.5 to 12 VDC for power input. Both DC outputs on the power supply module change voltage by choosing either 3.3 or 5 VDC by moving the included jumpers. Put the jumper over the 5V for 5 VDC and over the 3.3V for 3.3 VDC.

Specifications: • Voltage input: 6.5 to 12 VDC into 5.5 x 2.1mm tip + socket, or USB power (5 VDC) into micro or A socket • Dual output voltage: 3.3 or 5 VDC via jumper • Maximum output current: 700mA • Pin spacing: 2.5 mm pitch • Board dimensions: 2.08" W x 1.26" D x 0.69" H with switch.

Product Details

BrandParts Express
Part Number321-500
UPC848864065571
Unit of MeasureEach
Weight0.05
