  • Piezo Source KSN1025B 3" x 7" Wide Dispersion Horn Tweeter

BUYOUT Piezo Source KSN1025B 3" x 7" Wide Dispersion Horn Tweeter

Factory BuyoutsPart # 299-4108
Model: KSN1025B
Manufactured by Piezo Source to the original Motorola specifications, this KSN1025B 3" x 7" horn tweeter is one of the best piezo tweeters currently available. The damped high power piezo element and diaphragm ensures incredible reliability and produces a much smoother response than you have come to expect from piezo tweeter.

Key Features

  • Manufactured to the original Motorola specs for reliability and excellent response
  • 90 degree horizontal dispersion for room filling sound
  • 75 watt power handling and 92 dB sensitivity for high output capability
  • Extremely rigid and durable reinforced ABS plastic assembly
Get Notified When Available

We'll send you an email when Piezo Source KSN1025B 3" x 7" Wide Dispersion Horn Tweeter is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Piezo Source KSN1025B 3" x 7" Wide Dispersion Horn Tweeter

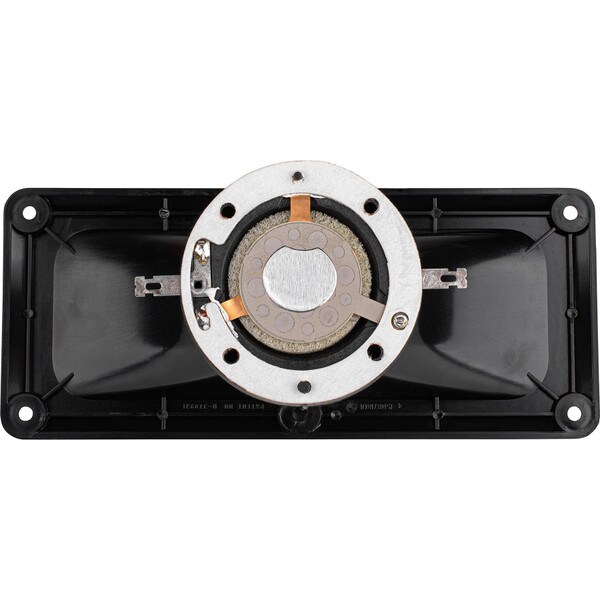

This isn't your standard piezo tweeter. Manufactured by Piezo Source this KSN1025B has smoother response and better power handling than what you would expect. The massive piezo element includes integrated damping to better control the paper diaphragm. Additionally, a foam ring rests between the diaphragm and the element for further damping, almost eliminating unwanted resonances for surprisingly flat and natural response. The horn and diaphragm housing is made of reinforced ABS plastic to withstand use and abuse. With a 90° horizontal dispersion, this KSN1025B will provide room filling sound and a wide sweet spot. With an impedance of over 400 ohms at 1 kHz, and still above 20 ohms at 40 kHz, this tweeter presents no stressful load to your amplifier in the audible range and naturally rejects low frequencies without the need for an additional crossover network. Electrically, these piezo ceramic speakers appear a 0.3 uF capacitor and exhibit extremely high efficiency.

Product Details

BrandFactory Buyouts
ModelKSN1025B
Part Number299-4108
UPC848864061344
Unit of MeasureEach
Weight0.32

Product Specifications

Diaphragm MaterialPiezo Ceramic
Power Handling (RMS)75 Watts

Specifications
