BUYOUT Philips 242226440046 1/2" Soft Dome Tweeter 6 Ohms

Factory BuyoutsPart # 289-2300
Model: 242226440046

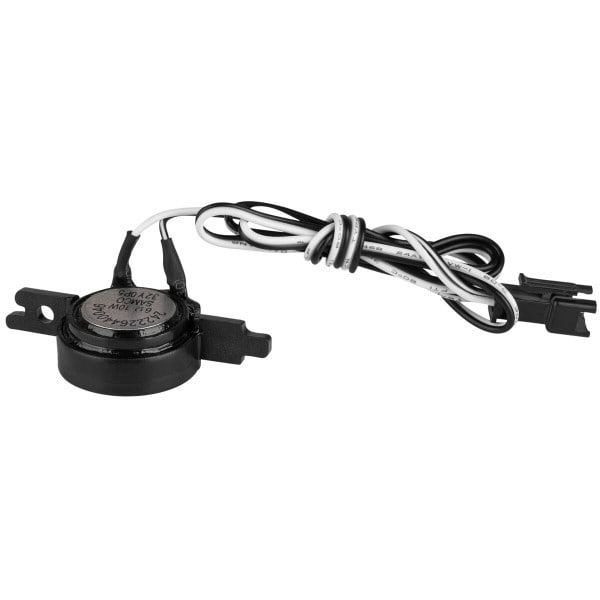

Originally used in a number of Philips LCD TVs, the 242226440046 1/2" soft dome neodymium tweeter's compact design makes it ideal for use in any small speaker design such as sound bars, desktop speakers, and portable Bluetooth systems.

Key Features

  • Phase plug improves off axis frequency response
  • Fabric dome provides smooth and natural sound
  • Includes pre-attached 22" leads for easy wiring
  • 6 ohm impedance makes this tweeter suitable for use in home and car applications
Get Notified When Available

We'll send you an email when Philips 242226440046 1/2" Soft Dome Tweeter 6 Ohms is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Philips 242226440046 1/2" Soft Dome Tweeter 6 Ohms

We at Parts Express constantly hunt the globe for unique buyout opportunities so that we can provide our customers with the best products at the lowest cost. We are excited to offer this 1/2" soft dome tweeter, which is part of a massive TV speaker factory buyout from Brazil.

Originally used in a number of Philips LCD TVs, the 242226440046 1/2" soft dome neodymium tweeter's compact design makes it ideal for use in any small speaker design such as sound bars, desktop speakers, and portable Bluetooth systems.

Use these speakers in any low cost audio project whether it be a portable speaker, adding music to toys and models, or building an enormous line array for pennies. At such an economical price, these drivers won't last forever, quantities are limited.

Product Details

BrandFactory Buyouts
Model242226440046
Part Number289-2300
UPC848864048727
Unit of MeasureEach
Weight0.05

Product Specifications

Cone / Dome Diameter0.5"
Cutout Diameter1
Tweeter TypeSoft Dome
Power Handling (RMS)10 Watts
Impedance6Ω
Frequency Response5,000 to 20,000Hz
Sensitivity87dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)2116Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)0.18mH
Mechanical Q (Qms)8.06
Electromagnetic Q (Qes)8.06
Total Q (Qts)2.17

Mounting Information

Overall Outside Diameter1"
Depth0.5"
