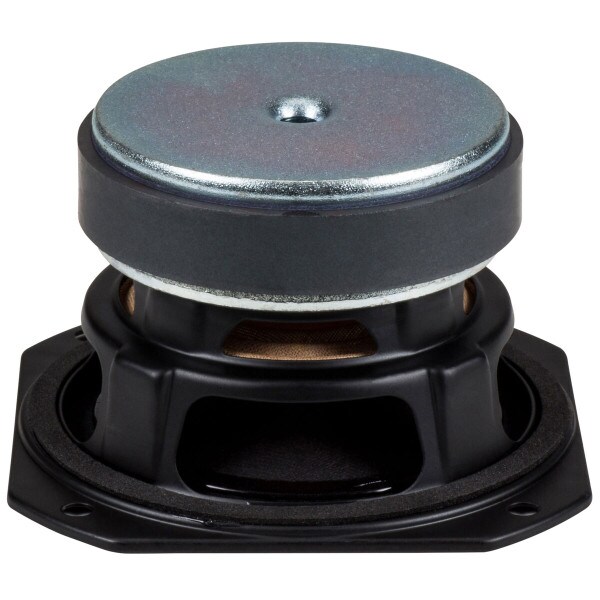

Peerless by Tymphany TC9FD00-04 3-1/2" Full-Range Line Array Driver 4 Ohm

Peerless by TymphanyPart # 264-1358
Model: TC9FD00-04
The TC9FD00-04 3-1/2" full-range 4 ohm from Tymphany offers impressive power handling and high efficiency in a small package. The result is a speaker that is surprisingly dynamic for its size.

Key Features

  • Patented PentaCut NRSC cone dampens and controls resonances
  • Copper capped motor lowers inductance and distortion
  • Cloth surround for long, worry-free performance
  • Truncated frame allows close center-to-center spacing in line arrays
Your Price: $13.89
MSRP: $18.99
Save $5.10 (27%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany TC9FD00-04 3-1/2" Full-Range Line Array Driver 4 Ohm is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TC9FD00-04 3-1/2" Full-Range Line Array Driver 4 Ohm

Tymphany's TC9FD00-04 full-range driver features a compact 3 1/4" frame, 25 watt power handling, and 86 dB sensitivity making it ideal for any compact high output speaker such as sound bars, MP3 and cell phone docks, or even professional line arrays. With an impedance of 4 ohms multiple drivers can used and still present an easy load for your amp.

Featuring Tymphany's patented PentaCut NRSC cone, a powerful ferrite motor, and copper capped pole piece, this driver has a wide frequency response of 150 to 10,000 Hz, with impressive off-axis characteristics. The TC9FD00-04's voice coil is vented extensively, which increases power handling while reducing compression.

Product Details

BrandPeerless by Tymphany
ModelTC9FD00-04
Part Number264-1358
UPC848864017051
Unit of MeasureEach
Weight0.85

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter3.52
Power Handling (RMS)25 Watts
Power Handling (MAX)50 Watts
Impedance4Ω
Frequency Response175 to 10,000Hz
Sensitivity90.3dB 2.83V/1m
Voice Coil Diameter0.76"

Thiele-Small Parameters

Resonant Frequency (Fs)175Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)4.8
Electromagnetic Q (Qes)1.28
Total Q (Qts)1.01
Compliance Equivalent Volume (Vas)0.03ft³
Mechanical Compliance of Suspension (Cms)0.398mm/N
BL Product (BL)2.33T·m
Diaphragm Mass Inc. Airload (Mms)2.09g
Maximum Linear Excursion (Xmax)1.6mm
Surface Area of Cone (Sd)36.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.3"
Baffle Cutout Diameter3"
Depth1.85"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3163.2Hz
