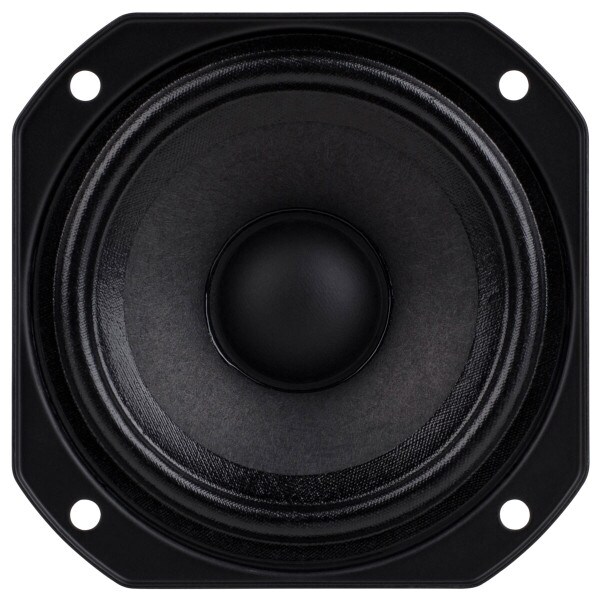

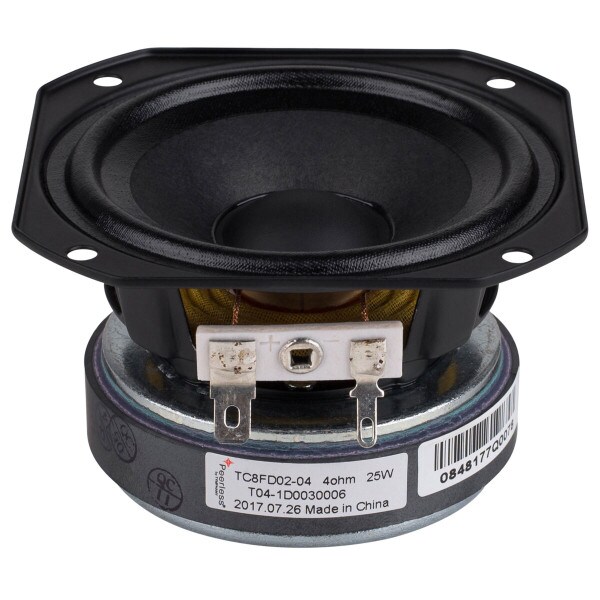

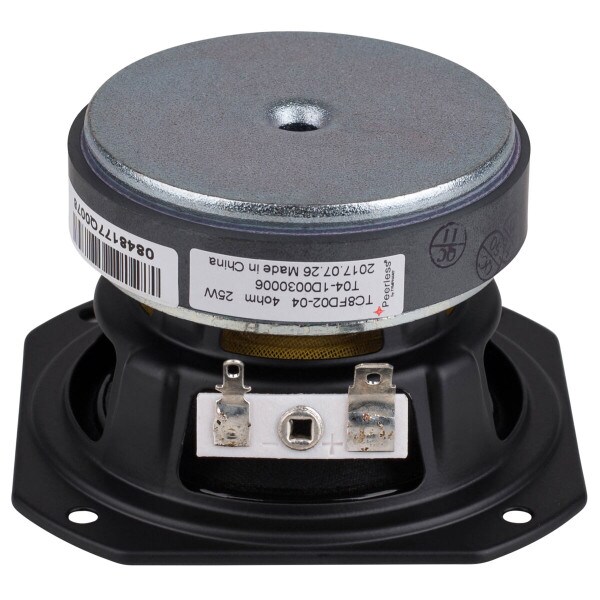

Peerless by Tymphany TC8FD05-04 3" Paper Cone Full-Range Speaker

Peerless by TymphanyPart # 264-1656
Model: TC8FD05-04
The Peerless TC8FD05-04 3", 4-ohm full-range driver is a great choice for space-limited audio applications. Thanks to its smooth frequency response from 100 to 20,000 Hz, this speaker is perfect for use in compact and portable speaker designs.

Key Features

  • Paper cone and cloth surround for excellent damping and natural response
  • High efficiency for a driver this small, capable of high output with low power
  • Under spider venting for minimal power compression
  • Great for building mini speakers and line array column speakers
Similar items that may interest you:
Dayton Audio PC83-4 3" Full-Range Poly Cone Driver
Price: $15.49Part # 295-154
GRS 3FR-4 Full-Range 3" Speaker Driver 4 Ohm
Price: $6.29Part # 292-436
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $12.39
MSRP: $16.99
Save $4.60 (27%)
Bulk Pricing
Quantity:Qty: 1-3 $12.39/ea
Quantity:Qty: 4+ $11.85/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany TC8FD05-04 3" Paper Cone Full-Range Speaker is back in stock or available for preorder.

Estimated back in stock 9/12/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TC8FD05-04 3" Paper Cone Full-Range Speaker

Tymphany designed the TC Series TC8FD05-04 to be a cost-effective, high performance 3" speaker for installation in compact applications. Ultra-flat frequency response from 100 to 11,000 Hz is made possible by the copper pole piece cap that lowers inductance and distortion. The cone and spider helps dampen and control cone resonances for a surprising.

With a steel frame that measures less than 3-1/2" wide, this 3" driver is perfect for use in micro monitor 2-way speakers, satellite speakers, and even compact, column line array speakers. For relatively high sensitivity, a 4 ohm voice coil and powerful magnetic motor are used to increase sensitivity to nearly 85.7 dB (2.83V/1m), which is impressive for a driver of this size.

Product Details

BrandPeerless by Tymphany
ModelTC8FD05-04
Part Number264-1656
UPC848864049908
Unit of MeasureEach
Weight0.85

Product Specifications

Nominal Diameter3"
Bolt Circle Diameter3.36
Power Handling (RMS)20 Watts
Power Handling (MAX)40 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity88.96dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)146Hz
DC Resistance (Re)3.16Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)3.15
Electromagnetic Q (Qes)1.03
Total Q (Qts)0.78
Compliance Equivalent Volume (Vas)0.031ft³
Mechanical Compliance of Suspension (Cms)0.574mm/N
BL Product (BL)2.379T·m
Diaphragm Mass Inc. Airload (Mms)2g
Maximum Linear Excursion (Xmax)1.6mm

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.19" x 3.19"
Baffle Cutout Diameter3.05"
Depth1.92"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3156.2Hz
Vented Volume0.08ft³
Vented F399.1Hz
