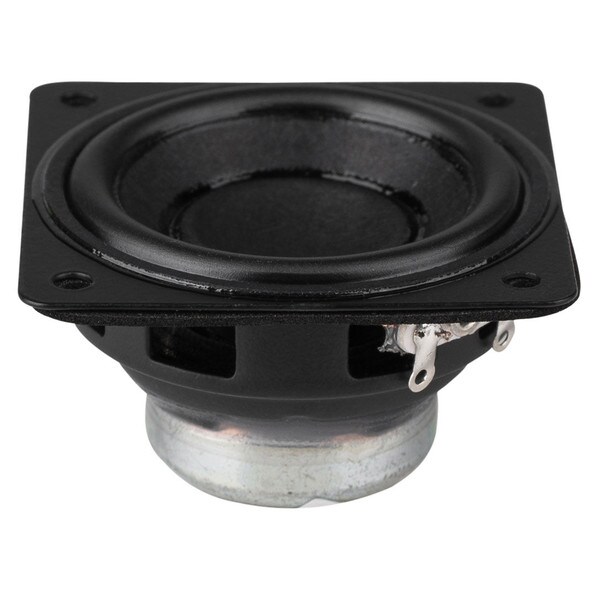

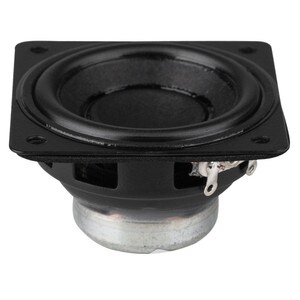

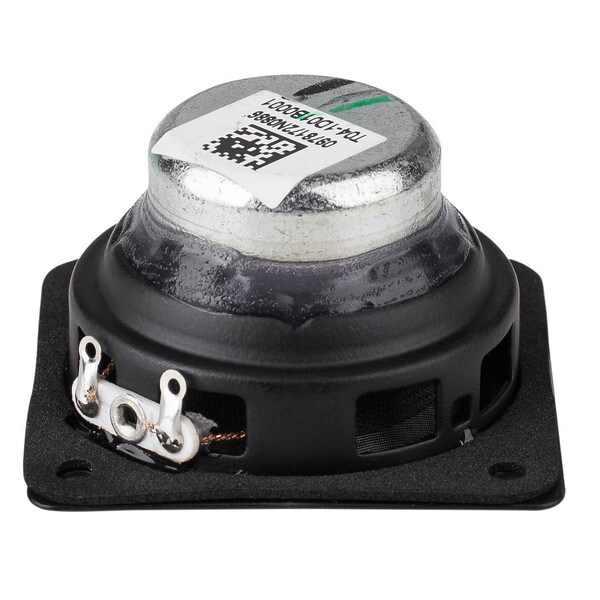

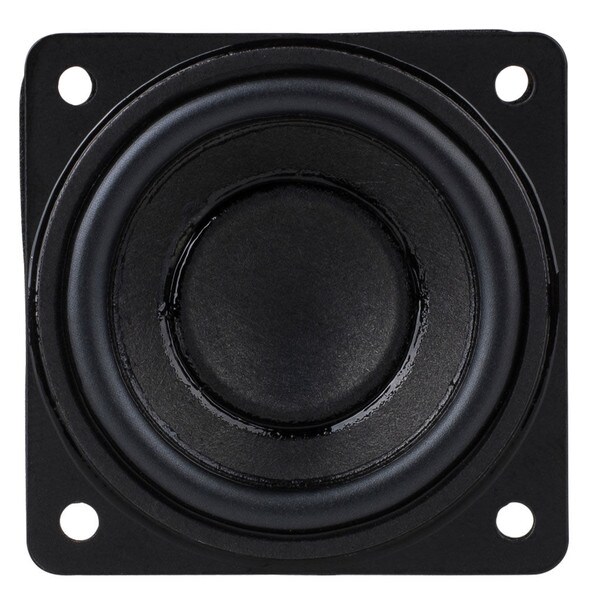

Peerless TC5FC00-04 1-1/2" Paper Cone Full-Range Driver 4 Ohm

Peerless by TymphanyPart # 264-1622
Model: TC5FC00-04
2 Questions, 5 Answers or
With smooth response from 200 Hz to 20,000 Hz, the Peerless TC5FC00-04 1-1/2" full-range driver is perfect for use in compact designs such as portable Bluetooth speakers, sound bars, desktop speakers, toys, or model trains. This small driver allows you to add high quality sound to almost anything.

Key Features

  • Just over 1.5" square allows this driver to fit almost anywhere
  • ±2.5 dB on-axis from 200 Hz to 20,000 Hz for accurate natural response
  • Flat mounting flange allows easy installation onto any flat surface
  • Powerful neodymium motor minimizes size and weight
Your Price: $10.49
MSRP: $15.99
Save $5.50 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $10.49/ea
Quantity:Qty: 4+ $9.28/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless TC5FC00-04 1-1/2" Paper Cone Full-Range Driver 4 Ohm is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless TC5FC00-04 1-1/2" Paper Cone Full-Range Driver 4 Ohm

The Peerless TC5FC00-04 1.5" 4 ohm full-range driver is ideal for providing hi-fi performance from the smallest speaker designs. With a Neodymium magnet, paper cone, poly surround, and steel basket this driver is a cost-effective high performance full range driver. The product was designed with televisions, sound bars, and other compact applications in mind.

Product Details

BrandPeerless by Tymphany
ModelTC5FC00-04
Part Number264-1622
UPC848864044873
Unit of MeasureEach
Weight0.1

Product Specifications

Nominal Diameter1-1/2"
Bolt Circle Diameter1.81
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance4Ω
Frequency Response220 to 20,000Hz
Sensitivity84.4dB 2.83V/1m
Voice Coil Diameter0.64"

Thiele-Small Parameters

Resonant Frequency (Fs)234Hz
DC Resistance (Re)3.05Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)3.67
Electromagnetic Q (Qes)1.11
Total Q (Qts)0.85
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.107mm/N
BL Product (BL)1.32T·m
Diaphragm Mass Inc. Airload (Mms)0.4g
Maximum Linear Excursion (Xmax)0.6mm
Surface Area of Cone (Sd)7.8cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside DiameterSquare: 1.59"
Baffle Cutout Diameter1.44"
Depth0.78"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3238.2Hz
Vented Volume0.03ft³
Vented F3169.7Hz
