Peerless TA6FD00-04 2" Aluminum Cone Full-Range Driver 4 Ohm

Peerless by TymphanyPart # 264-1610
Model: TA6FD00-04
The Peerless 2" TA6FD00-04 4 ohm full-range driver will provide smooth response with excellent off-axis performance. This driver is perfect for extremely compact designs such as sound bars, near-field monitors, and portable Bluetooth speakers.

Key Features

  • Extremely smooth response from 100 Hz to 17,000 Hz
  • Nearly perfect off axis response up to 4,000 Hz
  • Copper pole cap minimizes inductance and distortion
  • Extensive venting under the spider and pole piece keeps the voice coil cool with no noise
Your Price: $12.29
MSRP: $19.99
Save $7.70 (39%)
Bulk Pricing
Quantity:Qty: 1-49 $12.29/ea
Quantity:Qty: 50-249 $11.75/ea
Quantity:Qty: 250+ $11.63/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless TA6FD00-04 2" Aluminum Cone Full-Range Driver 4 Ohm is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless TA6FD00-04 2" Aluminum Cone Full-Range Driver 4 Ohm

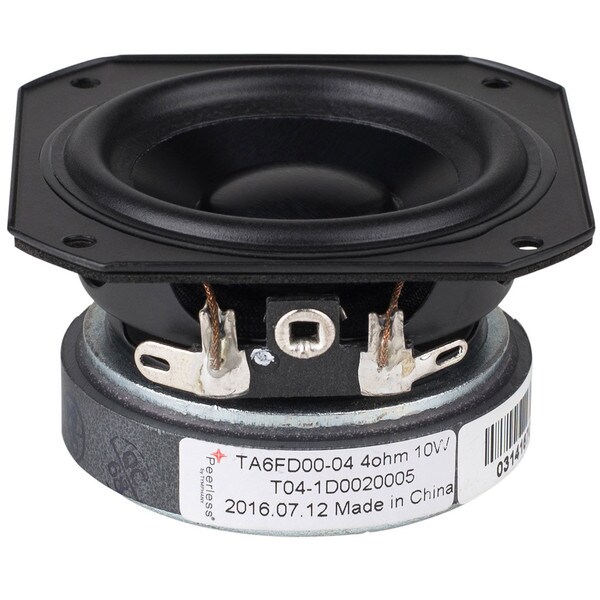

This 2" 4 ohm member of the Peerless TA family sets a high standard for compact full-range drivers. This full-range is ideal for applications such as television, sound bars, and other compact wide dispersion designs. The TA6FD00-04 features a stiff steel basket with venting under the spider to aid cooling of the motor that consists of a ferrite magnet with copper cap to lower coil inductance, providing low distortion, and extended high frequency response. This driver will deliver smooth response with minimal resonances thanks to the black anodized aluminum cone and dust cap coupled directly to the voice coil.

Product Details

BrandPeerless by Tymphany
ModelTA6FD00-04
Part Number264-1610
UPC848864044934
Unit of MeasureEach
Weight0.4

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter0.13
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity81.1dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)146.6Hz
DC Resistance (Re)3.47Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)3.78
Electromagnetic Q (Qes)1.24
Total Q (Qts)0.93
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.822mm/N
BL Product (BL)1.93T·m
Diaphragm Mass Inc. Airload (Mms)1.4g
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)15.2cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter2.48"
Baffle Cutout Diameter1.97"
Depth1.26"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.03ft³
Sealed F3138.6Hz
