  • Peerless by Tymphany TA6FC00-04 2" Aluminum Cone Full-Range Driver 4 Ohm

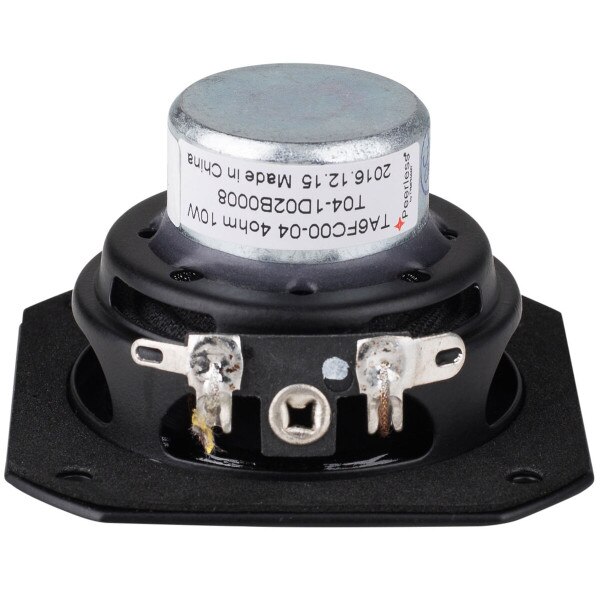

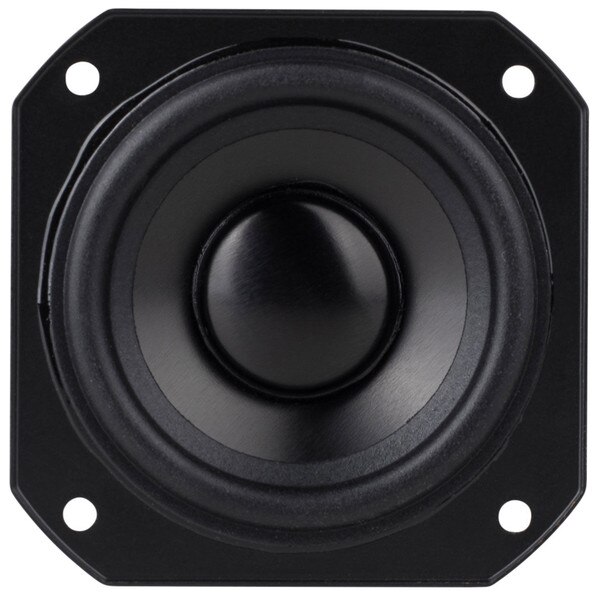

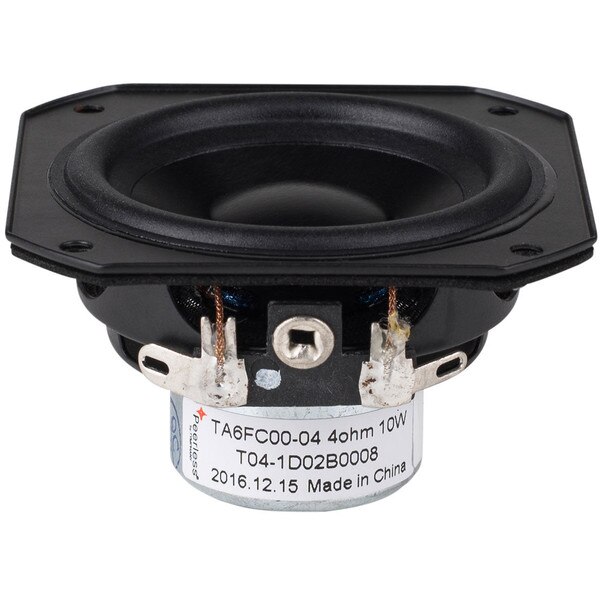

CLEARANCE Peerless by Tymphany TA6FC00-04 2" Aluminum Cone Full-Range Driver 4 Ohm

Peerless by TymphanyPart # 264-1606
Model: TA6FC00-04
The Peerless 2" TA6FC00-04 4 ohm full-range will provide incredibly smooth response from 160 to 20,000 Hz. Just team this up with a small subwoofer for an extremely simple true full-range system. This driver is perfect for extremely compact designs such as sound bars, near-field monitors, and portable Bluetooth speakers.

Key Features

  • Extremely smooth response from 160 Hz to 20,000 Hz (±3dB)
  • Powerful optimized neodymium motor minimizes size and weight
  • Copper pole cap minimizes inductance and distortion
  • Extensive venting under the spider and pole piece keeps the voice coil cool with no noise
Get Notified When Available

We'll send you an email when Peerless by Tymphany TA6FC00-04 2" Aluminum Cone Full-Range Driver 4 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TA6FC00-04 2" Aluminum Cone Full-Range Driver 4 Ohm

This 2" 4 ohm member of the Peerless TA family sets a high standard for compact full-range drivers. This full-range is ideal for applications such as television, sound bars, and other compact wide dispersion designs. The TA6FC00-04 features a stiff steel basket with venting under the spider to aid cooling of the motor that consists of an optimized neodymium magnet with copper cap to lower coil inductance, providing low distortion, and extended high frequency response. This driver will deliver smooth response with minimal resonances thanks to the black anodized aluminum cone and dust cap coupled directly to the voice coil.

Product Details

BrandPeerless by Tymphany
ModelTA6FC00-04
Part Number264-1606
UPC848864044866
Unit of MeasureEach
Weight0.2

Product Specifications

Nominal Diameter2"
Bolt Circle Diameter0.13
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance4Ω
Frequency Response100 to 20,000Hz
Sensitivity82.4dB 2.83V/1m
Voice Coil Diameter0.76"

Thiele-Small Parameters

Resonant Frequency (Fs)177Hz
DC Resistance (Re)3.38Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)2.63
Electromagnetic Q (Qes)1.14
Total Q (Qts)0.79
Compliance Equivalent Volume (Vas)0.01ft³
Mechanical Compliance of Suspension (Cms)0.595mm/N
BL Product (BL)2.12T·m
Diaphragm Mass Inc. Airload (Mms)1.4g
Maximum Linear Excursion (Xmax)1.1mm
Surface Area of Cone (Sd)15.2cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialFoam
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.48"
Baffle Cutout Diameter1.89"
Depth1.26"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.02ft³
Sealed F3187.5Hz
Vented Volume0.04ft³
Vented F3117.7Hz
