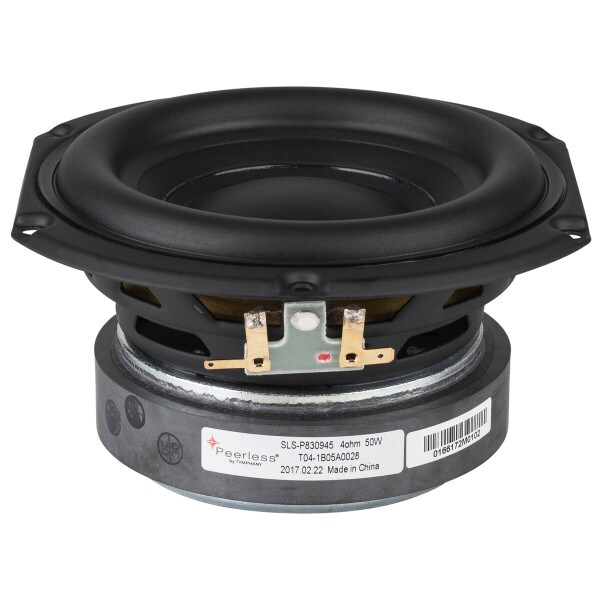

Peerless SLS-P830945 5-1/4" Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1604

Peerless SLS-P830945 5-1/4" Paper Cone Woofer 4 Ohm

Peerless by Tymphany
Part #264-1604
Model: SLS-P830945
With a large roll surround, high excursion, and low Fs for its size, the Peerless SLS-P380945 5-1/4" subwoofer is ideal for use in extremely compact subwoofer designs, portable 2.1 systems, or even as a woofer in small 3-way systems.
Key Features
  • High excursion capability makes this perfect for compact subwoofer designs
  • Aluminum shorting ring lowers distortion and keeps inductance under control
  • Rigid steel basket with adequate venting above and below the spider
  • Higher efficiency that most subwoofer drivers this small
Similar items that may interest you:
See all items in Woofers
Your Price: $36.98
MSRP: $55.99
Save $19.01 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $36.98/ea
Quantity:Qty: 4+$34.02/ea

Out of Stock

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless SLS-P830945 5-1/4" Paper Cone Woofer 4 Ohm

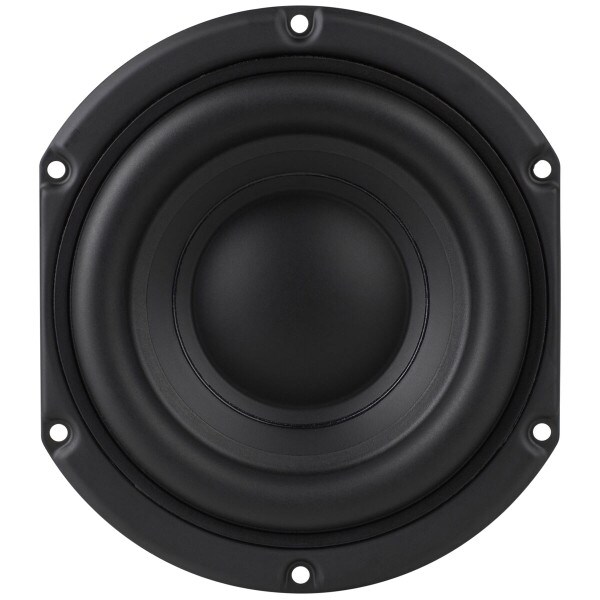

A new addition to the SLS Series of speakers, the Peerless SLS-P830945 5-1/4" subwoofer features a paper cone, wide rubber half-roll surround, and hefty ceramic ferrite magnet with distortion-reducing aluminum shorting ring. This driver will provide accurate and detailed low frequency audio reproduction.

The speaker's distinctively sculpted truncated steel frame facilitates close driver spacing or a narrower mounting baffle, and its extensive under-spider venting promotes voice coil cooling for reduced power compression and improved long term reliability. The P830945 will perform superbly as a dedicated low-mid bass driver, as well as delivering solid output when used as a compact subwoofer.

Product Details

BrandPeerless by Tymphany
ModelSLS-P830945
Part Number264-1604
UPC848864045009
Unit of MeasureEach
Weight3.55

Product Specifications

Nominal Diameter5-1/4"
Bolt Circle Diameter5.6
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance4Ω
Frequency Response40 to 1,500Hz
Sensitivity88.36dB 2.83V/1m
Voice Coil Diameter1.3"

Thiele-Small Parameters

Resonant Frequency (Fs)51.49Hz
DC Resistance (Re)2.71Ω
Voice Coil Inductance (Le)0.2mH
Mechanical Q (Qms)3.95
Electromagnetic Q (Qes)0.4
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.21ft³
Mechanical Compliance of Suspension (Cms)0.601mm/N
BL Product (BL)5.9T·m
Diaphragm Mass Inc. Airload (Mms)15.3g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)83.3cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialFoam
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.9"
Baffle Cutout Diameter4.72"
Depth2.64"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F3115.4Hz
Vented Volume0.13ft³
Vented F364.2Hz
