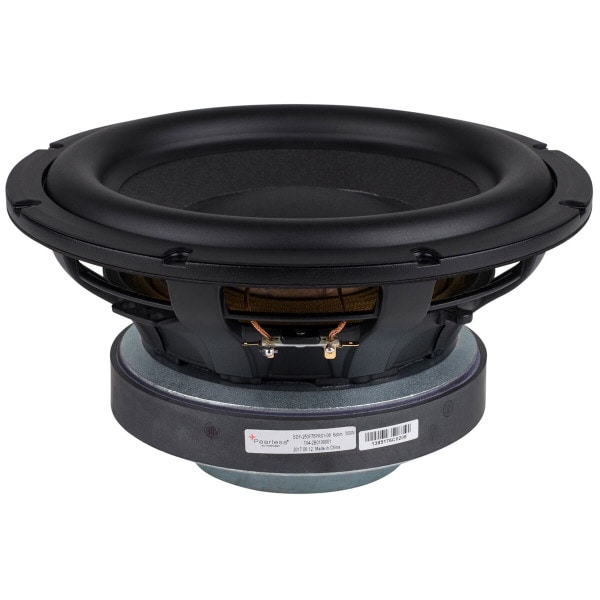

Peerless by Tymphany SDF-250F75PR01-06 10" Paper Cone Subwoofer

Peerless by Tymphany
Part #264-1654

Peerless by Tymphany SDF-250F75PR01-06 10" Paper Cone Subwoofer

Peerless by Tymphany
Part #264-1654
Model: SDF-250F75PR01-06
For use in compact high output, low distortion subwoofer designs, the 10" Peerless SDF-250F75PR01-06 subwoofer will deliver outstanding performance. Designed to handle power with its 3" voice coil and extensive venting, this driver also includes an advanced motor design to keep distortion at a minimum.
Key Features
  • Vented cone, frame, and pole piece keeps coil cool while lowering power compression
  • Low-creep rubber surround for longevity and improved damping
  • Extremely extended back plate ensures clearance for high excursion
  • Flexible design works well in smaller sealed and average sized vented enclosures
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $165.46
+ FREE SHIPPING
MSRP: $223.99
Save $58.53 (26%)
Bulk Pricing

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany SDF-250F75PR01-06 10" Paper Cone Subwoofer

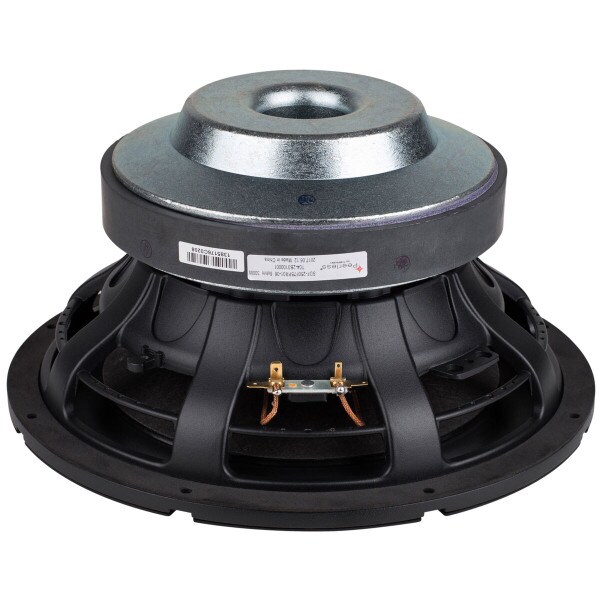

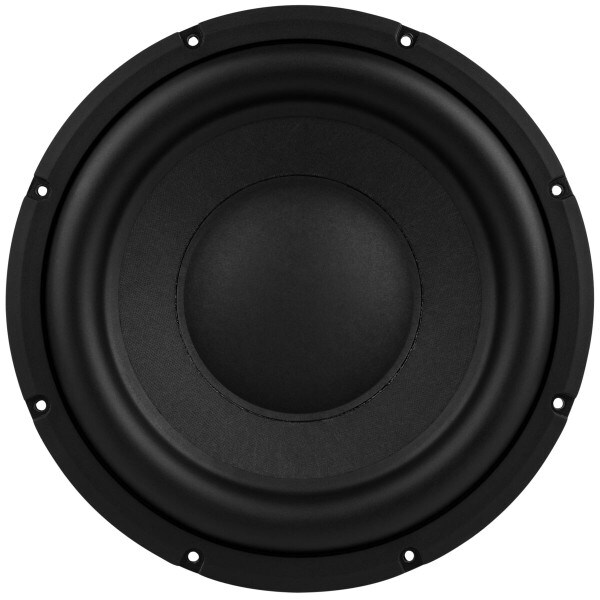

The 10" 6 ohm SDF-250F75PR01-06 from Peerless by Tymphany has all the design features you can expect from a high performance, high excursion subwoofer. The motor features a strong ferrite magnet with bumped T yoke to support high excursion. In addition, to increase damping and cone control, the motor includes aluminum shorting rings and pole extenders, all of which lowers and linearizes the inductance of the overhung voice coil. The venting under the paper cone and dust cap reduces air compression for more predictable high output performance. The suspension system features a low-creep rubber surround and an optimized spider, ensuring long-term reliability under high power conditions. This subwoofer also features a newly designed, ultra rigid, cast aluminum basket.

Product Details

BrandPeerless by Tymphany
ModelSDF-250F75PR01-06
Part Number264-1654
UPC848864049892
Unit of MeasureEach
Weight18

Product Specifications

Nominal Diameter10"
Bolt Circle Diameter10
Power Handling (RMS)300 Watts
Power Handling (MAX)600 Watts
Impedance6Ω
Frequency Response25 to 400Hz
Sensitivity88.75dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)33.5Hz
DC Resistance (Re)4.39Ω
Voice Coil Inductance (Le)1.02mH
Mechanical Q (Qms)11.7
Electromagnetic Q (Qes)0.48
Total Q (Qts)0.46
Compliance Equivalent Volume (Vas)1.359ft³
Mechanical Compliance of Suspension (Cms)0.218mm/N
BL Product (BL)14.12T·m
Diaphragm Mass Inc. Airload (Mms)103.5g
Maximum Linear Excursion (Xmax)12.6mm
Surface Area of Cone (Sd)352.6cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.6"
Baffle Cutout Diameter9.5"
Depth5.35"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.7ft³
Sealed F357.8Hz
Vented Volume1.1ft³
Vented F335.3Hz
