Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

5 Questions, 9 Answers or

Peerless by Tymphany

Part #264-1564

Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

Peerless by Tymphany

Part #264-1564

5 Questions, 9 Answers or

The Peerless : SBS-160F35AL01-04 is a 6-1/2" 4 ohm woofer that is a member of the new SBS product family.

See all items in Woofers

Your Price: $44.80

+ FREE SHIPPING

MSRP: $60.99

Bulk Pricing

Out of Stock

Get Notified When Available

We'll send you an email when Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm is back in stock or available for preorder.

Ships in 90-120 days, minimum order quantity 500 pcs.

Alert Me When Available

Qty Quantity:

Free Shipping available on orders over $49.00 in the US. Details

60 Day No Hassle Return Policy

Frequently Bought Together

This Product: Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm	$44.80
Audtek 16 AWG OFC Speaker Wire 50 ft.	$16.11
Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller	$48.98
Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material	$14.98

Total Price: $124.87

This Product:Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm$44.80

Audtek 16 AWG OFC Speaker Wire 50 ft.$16.11

Acry-Tech DuraTex Black 1 Quart Roller Grade Cabinet Texture Coating Kit with Textured 3" Roller$48.98

Acousta-Stuf Polyfill 1 lb. Bag Speaker Cabinet Sound Damping Material$14.98

4 ItemsTotal Price: $124.87

Overview

Peerless by Tymphany SBS-160F35AL01-04 6-1/2" Aluminum Cone Woofer 4 Ohm

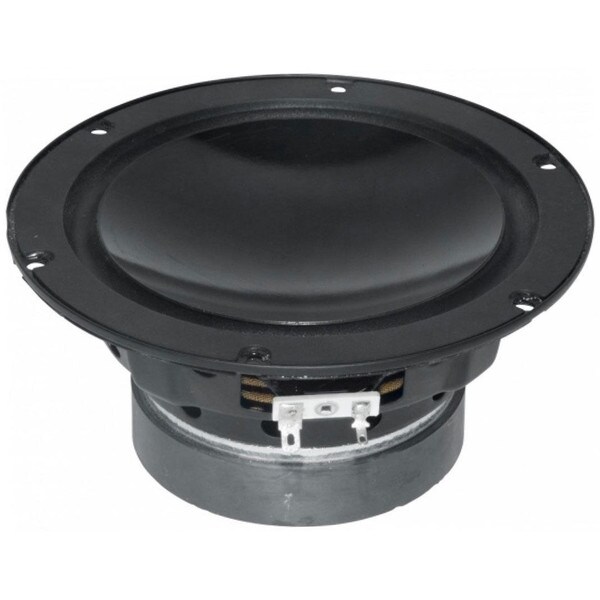

The Peerless : SBS-160F35AL01-04 is a 6-1/2" 4 ohm woofer that is a member of the new SBS product family. This driver features a black anodized aluminum cone, inverted rubber surround, ferrite magnet, steel basket. Designed for high excursion applications.

Product Details
Brand	Peerless by Tymphany
Model	SBS-160F35AL01-04
Part Number	264-1564
UPC	848864045559
Unit of Measure	Each
Weight	3.84

Product Specifications
Nominal Diameter	6-1/2"
Power Handling (RMS)	150 Watts
Power Handling (MAX)	300 Watts
Impedance	4Ω
Sensitivity	82.36dB 2.83V/1m
Voice Coil Diameter	1.4"

Thiele-Small Parameters
Resonant Frequency (Fs)	46.15Hz
DC Resistance (Re)	4.1Ω
Voice Coil Inductance (Le)	0.91mH
Mechanical Q (Qms)	5.6
Electromagnetic Q (Qes)	0.67
Total Q (Qts)	0.6
Compliance Equivalent Volume (Vas)	0.19ft³
Mechanical Compliance of Suspension (Cms)	256.2mm/N
BL Product (BL)	9.05T·m
Diaphragm Mass Inc. Airload (Mms)	46.4g
Maximum Linear Excursion (Xmax)	8.5mm
Surface Area of Cone (Sd)	124.7cm²

Materials of Construction
Cone Material	Aluminum
Surround Material	Rubber
Basket / Frame Material	Steel
Magnet Material	Ferrite

Mounting Information
Overall Outside Diameter	6.61"
Baffle Cutout Diameter	5.51"
Depth	3.69"
# Mounting Holes	6

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.2ft³
Sealed F3	61.6Hz
Vented Volume	0.3ft³
Vented F3	37.9Hz
