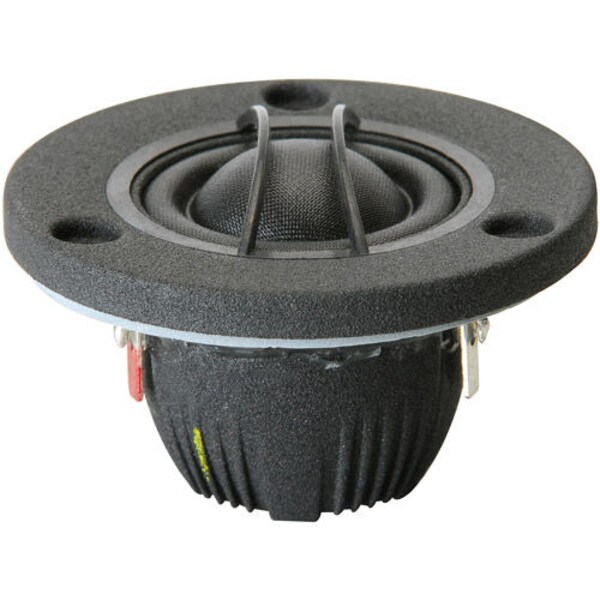

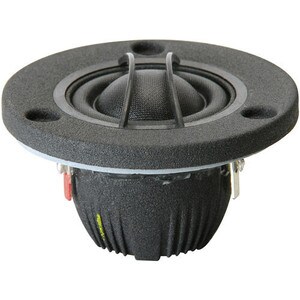

Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1006

Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter

Peerless by Tymphany
Part #264-1006
Model: NE19VTS-04
The Tymphany NE product line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs.
Key Features
  • 3/4" silk dome
  • Advanced design neo motor system
  • Copper caps reduce inductance and extend HF response

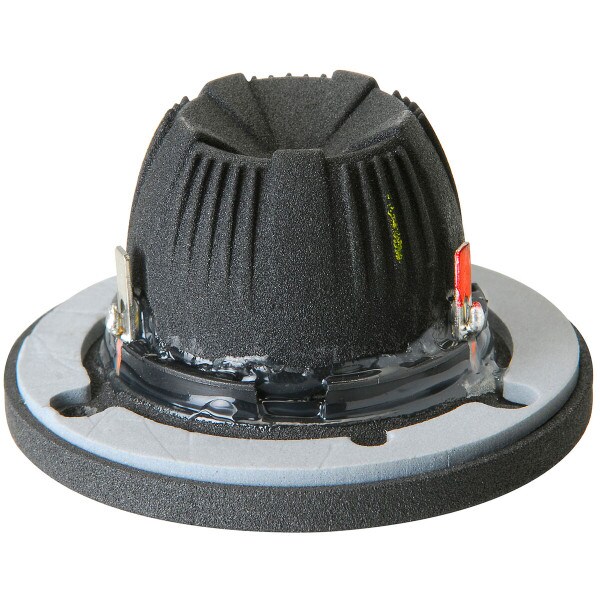

  • Aluminum rear chamber lowers resonance and doubles as a heatsink
  • Aluminum face plate and plastic protective grill
Similar items that may interest you:
See all items in Tweeters
Your Price: $24.29
+ FREE SHIPPING
MSRP: $32.99
Save $8.70 (26%)
Bulk Pricing

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE19VTS-04 3/4" Silk Dome Tweeter

The Tymphany NE line of tweeters has leading-edge transducer technology packaged in cutting edge, stylistic designs. Tymphany's finite element analysis designed high power, high performance, neodymium-iron-boron (NdFeB) motor provides high output in a small footprint. Various dome materials are available for the tweeter models, including titanium, aluminum, silk, and deep-anodized aluminum. Domes sized to match 1" or 3/4" voice coils provide large linear motion and low distortion, ensuring a wide smooth frequency response that also reproduces low-level details in music. Copper caps in the motor system create a high frequency extension and lower intermodulation distortion. An aluminum rear chamber provides a very low resonance that provides very flexible system design capabilities, by keeping the resonance of the tweeter well below the tweeter crossover frequency.

Product Details

BrandPeerless by Tymphany
ModelNE19VTS-04
Part Number264-1006
UPC844632083648
Unit of MeasureEach
Weight0.15

Product Specifications

Cone / Dome Diameter0.75"
Cutout Diameter1.50
Tweeter TypeSoft Dome
Power Handling (RMS)80 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity88.3dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)742.5Hz
DC Resistance (Re)2.71Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)3.36
Electromagnetic Q (Qes)2.27
Total Q (Qts)1.36

Mounting Information

Overall Outside Diameter2.04"
Depth1.14"
