  • Peerless by Tymphany H26TG45-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

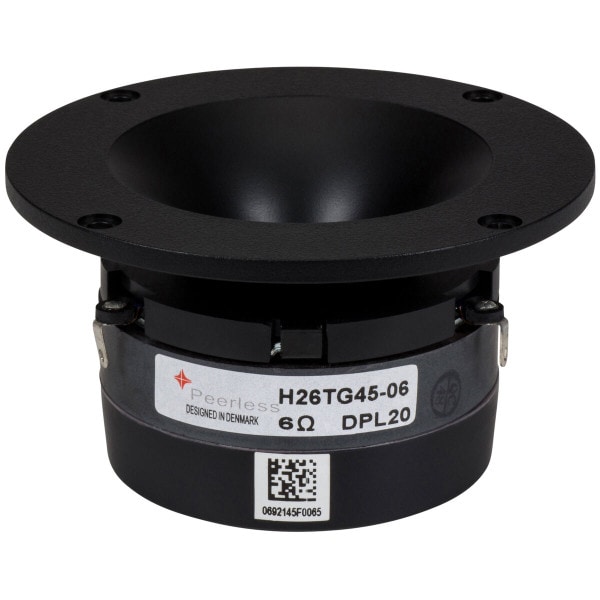

Peerless by Tymphany H26TG45-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

Peerless by TymphanyPart # 264-1386
Model: H26TG45-06
Tymphany's H26TG45-06 horn loaded treated silk dome tweeter features smooth response from 2,000 to 20,000 Hz and high efficiency, making it an excellent choice for any high efficiency speaker system.

Key Features

  • Horn loaded design for increased sensitivity of 93.6 dB
  • Damped rear chamber lowers Fs and reduces resonances
  • Large, Ferrofluid-cooled motor improves power handling
  • Treated silk dome delivers natural music reproduction
Similar items that may interest you:
Dayton Audio ND20FA-6 3/4" Soft Dome Neodymium Tweeter
Price: $10.98Part # 275-030
See all items in Tweeters
Your Price: $31.89
MSRP: $43.99
Save $12.10 (28%)
Bulk Pricing

Back-Ordered

Get Notified When Available

We'll send you an email when Peerless by Tymphany H26TG45-06 1" Silk Dome Tweeter with Waveguide 6 Ohm is back in stock or available for preorder.

Advertised price subject to change due to tariff uncertainty
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany H26TG45-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

The Tymphany H26TG45-06 features a treated silk dome and horn loaded faceplate, making it an efficient and natural sounding tweeter suitable for high efficiency speaker designs.

Thanks to a damped rear chamber lowering the resonant frequency, a crossover point as low as 2,500 Hz is possible with this tweeter. The robust motor on the H26TG45-06 is Ferrofluid cooled, increasing the power handling to 100 watts for extremely high output capabilities. With a treated silk dome this tweeter provides a natural, non-fatiguing sound. The thick faceplate with recessed screw holes makes it easy to flush mount, thereby minimizing diffraction issues.

Product Details

BrandPeerless by Tymphany
ModelH26TG45-06
Part Number264-1386
UPC848864017112
Unit of MeasureEach
Weight1.15

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter3
Tweeter TypeSoft Dome
Power Handling (RMS)100 Watts
Impedance
Frequency Response2,500 to 20,000Hz
Sensitivity94.3dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1060Hz
DC Resistance (Re)4.8Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)1.3
Electromagnetic Q (Qes)1.54
Total Q (Qts)0.69

Mounting Information

Overall Outside Diameter4"
Depth2.25"
