  • Peerless by Tymphany H25TG05-08 1" Titanium Dome Tweeter with Waveguide 8 Ohm

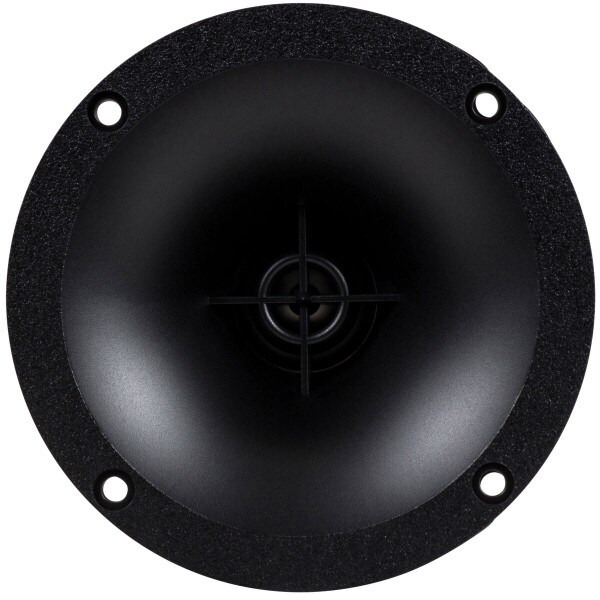

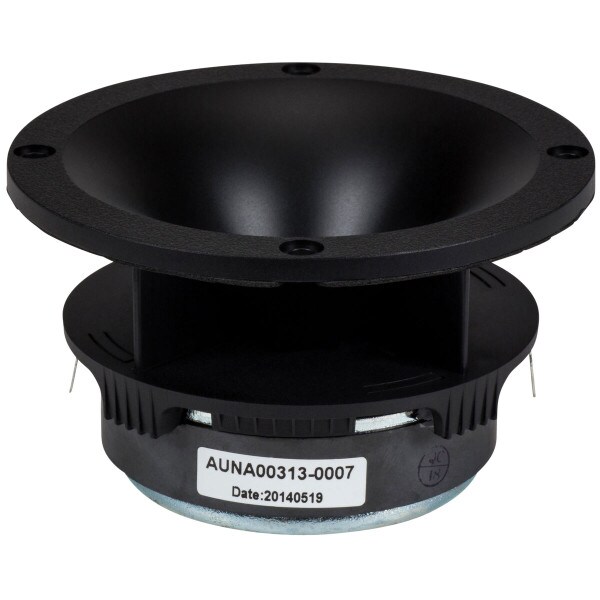

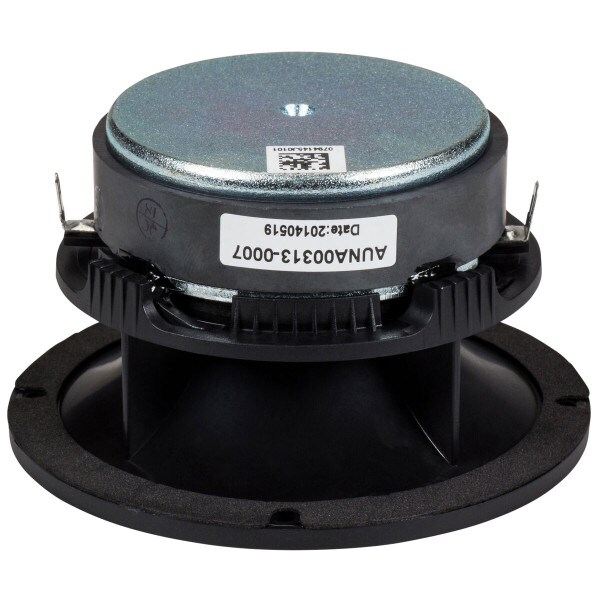

Peerless by Tymphany H25TG05-08 1" Titanium Dome Tweeter with Waveguide 8 Ohm

Peerless by TymphanyPart # 264-1381
Model: H25TG05-08
The Tymphany H25TG05-08 horn loaded titanium dome tweeter features smooth response from 2,500 to 20,000 Hz and high efficiency, making it an excellent choice for any high efficiency speaker system.

Key Features

  • Horn loaded design for increased sensitivity
  • Titanium dome for detailed, accurate music reproduction
  • Large, Ferrofluid-cooled motor improves power handling
  • Treated dome for smooth frequency response
Similar items that may interest you:
Dayton Audio DC25T-8 1" Titanium Dome Tweeter
Price: $17.98Part # 275-045
See all items in Tweeters
Your Price: $24.49
MSRP: $32.99
Save $8.50 (26%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany H25TG05-08 1" Titanium Dome Tweeter with Waveguide 8 Ohm is back in stock or available for preorder.

Estimated back in stock 9/12/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany H25TG05-08 1" Titanium Dome Tweeter with Waveguide 8 Ohm

Tymphany's H25TG05-08 features a titanium dome and horn loaded faceplate, making it an extremely efficient and detailed tweeter suitable for high efficiency speaker designs.

The robust motor on the H25TG05-08 is Ferrofluid cooled, which increases the power handling to 150 watts for extremely high output capabilities. The waveguide horn helps control dispersion and increase efficiency. In addition, the titanium dome is treated to provide detailed highs without being harsh, making possible a smooth response from 2,500 to 20,000 Hz . The thick faceplate with recessed screw holes makes it easy to flush mount, thereby minimizing diffraction issues.

Product Details

BrandPeerless by Tymphany
ModelH25TG05-08
Part Number264-1381
UPC848864017099
Unit of MeasureEach
Weight1.3

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter3.375
Tweeter TypeMetal Dome
Power Handling (RMS)150 Watts
Impedance
Frequency Response2,500 to 20,000Hz
Sensitivity97.2dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1750Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)3.6
Electromagnetic Q (Qes)3.08
Total Q (Qts)1.65

Mounting Information

Overall Outside Diameter4"
Depth2.2"
