  • Peerless by Tymphany GBS-200F35CP02-04 8" Paper Cone Woofer 4 Ohm

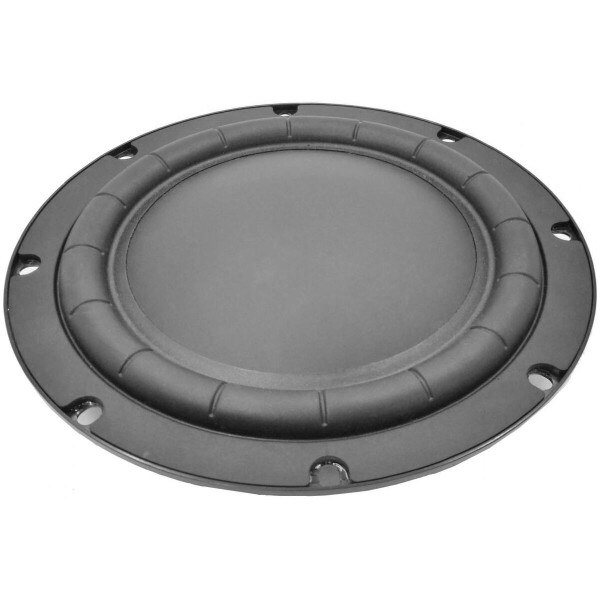

Peerless by Tymphany GBS-200F35CP02-04 8" Paper Cone Woofer 4 Ohm

Peerless by TymphanyPart # 264-1490
Model: GBS-200F35CP02-04
The GBS-200F35CP02-04 is a member of the GBS family provides a very slim woofer capable of large excursion. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.
Similar items that may interest you:
Dayton Audio RS225P-4A 8" Reference Paper Woofer 4 Ohm
Price: $89.98Part # 295-567
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $53.98
MSRP: $70.99
Save $17.01 (24%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany GBS-200F35CP02-04 8" Paper Cone Woofer 4 Ohm is back in stock or available for preorder.

Estimated back in stock 12/12/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany GBS-200F35CP02-04 8" Paper Cone Woofer 4 Ohm

The GBS-200F35CP02-04 is a member of the GBS family provides a very slim woofer capable of large excursion. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.

Product Details

BrandPeerless by Tymphany
ModelGBS-200F35CP02-04
Part Number264-1490
UPC848864045344
Unit of MeasureEach
Weight5.02

Product Specifications

Nominal Diameter8"
Power Handling (RMS)150 Watts
Power Handling (MAX)300 Watts
Impedance
Sensitivity86.2dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)41.8Hz
DC Resistance (Re)3.52Ω
Voice Coil Inductance (Le)1.81mH
Mechanical Q (Qms)4.63
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.53ft³
Mechanical Compliance of Suspension (Cms)217mm/N
BL Product (BL)12T·m
Diaphragm Mass Inc. Airload (Mms)66.8g
Maximum Linear Excursion (Xmax)5.2mm
Surface Area of Cone (Sd)221.7cm²

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.38ft³
Sealed F387.5Hz
Vented Volume0.75ft³
Vented F337.1Hz
