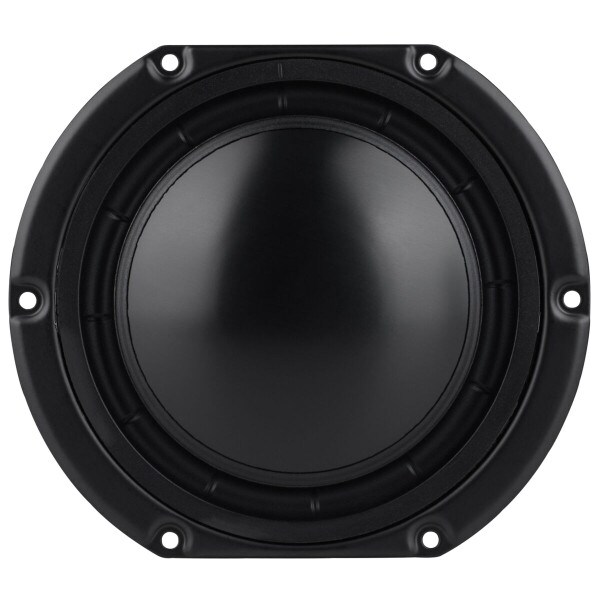

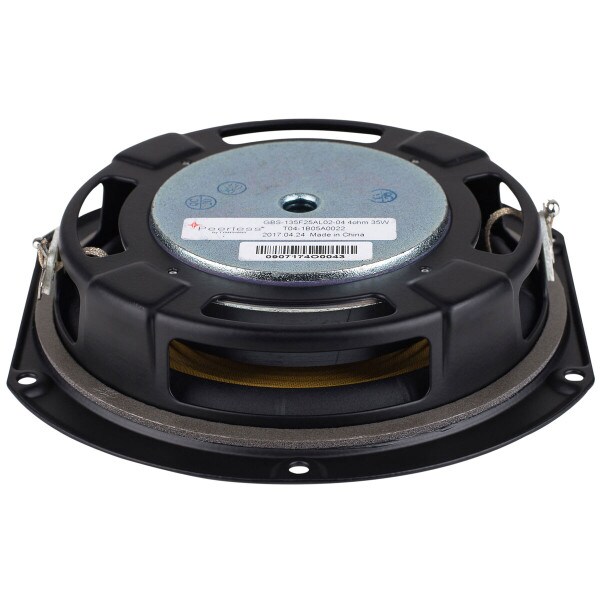

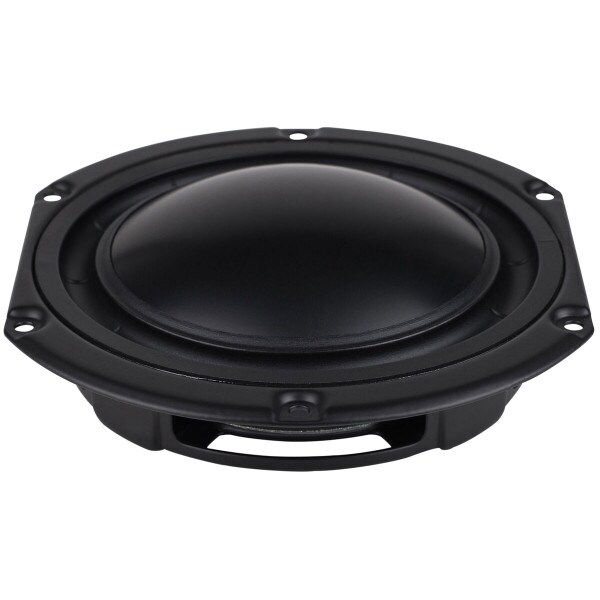

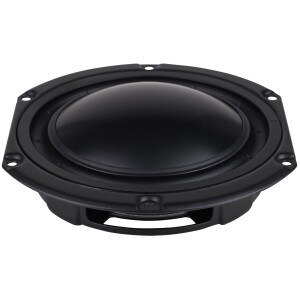

Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer 4 Ohm

Peerless by TymphanyPart # 264-1486
Model: GBS-135F25AL02-04
The low profile GBS-135F25AL02-04 from Peerless can deliver high-end performance even when space is at a minimum. With smooth response up to 3,500 Hz and extremely well controlled dispersion, this unique driver can deliver hi-fi sound from the shallowest designs.

Key Features

  • Just over 1" mounting depth without sacrificing sound quality
  • Amazing excursion capability for powerful bass response from shallow enclosures
  • Optimized ferrite motor design allows impressive efficiency for a low profile driver
  • Excellent choice for car audio systems where space is at a premium
Similar items that may interest you:
Dayton Audio DC130B-4 5-1/4" Classic Woofer Speaker
Price: $28.98Part # 295-307
See all items in Woofers
Your Price: $38.98
MSRP: $51.99
Save $13.01 (25%)
Bulk Pricing
Quantity:Qty: 1-4 $38.98/ea
Quantity:Qty: 5-49 $37.23/ea
Quantity:Qty: 50-99 $35.47/ea
Quantity:Qty: 100-249 $33.72/ea
Quantity:Qty: 250+ $31.97/ea
In Stock
Get Notified When Available

We'll send you an email when Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer 4 Ohm is back in stock or available for preorder.

Order in the next 4 hr 17 min to ship today. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany GBS-135F25AL02-04 5-1/4" Aluminum Cone Woofer 4 Ohm

The Peerless GBS-135F25AL02-04 5-1/4" 4 ohm woofer provides a very slim profile that is capable of large excursion. An anodized aluminum dome helps to extend the piston bands in the working range to deliver flat response from 55 Hz to 3,500 Hz with remarkable off-axis performance. A highly optimized ferrite motor and unique suspension layout combine to give a cost effective solution in a previously unavailable package.

Product Details

BrandPeerless by Tymphany
ModelGBS-135F25AL02-04
Part Number264-1486
UPC848864044996
Unit of MeasureEach
Weight1.95

Product Specifications

Nominal Diameter5-1/4"
Bolt Circle Diameter5.59
Power Handling (RMS)35 Watts
Power Handling (MAX)70 Watts
Impedance
Frequency Response55 to 3,500Hz
Sensitivity88.45dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)63Hz
DC Resistance (Re)3.28Ω
Voice Coil Inductance (Le)0.21mH
Mechanical Q (Qms)4.12
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.57
Compliance Equivalent Volume (Vas)0.189ft³
BL Product (BL)4.92T·m
Diaphragm Mass Inc. Airload (Mms)12.3g
Maximum Linear Excursion (Xmax)3.3mm
Surface Area of Cone (Sd)85.22cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6", Across flats: 5.25""
Baffle Cutout Diameter4.68"
Depth1.07"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F387.8Hz
Vented Volume0.4ft³
Vented F349.7Hz
