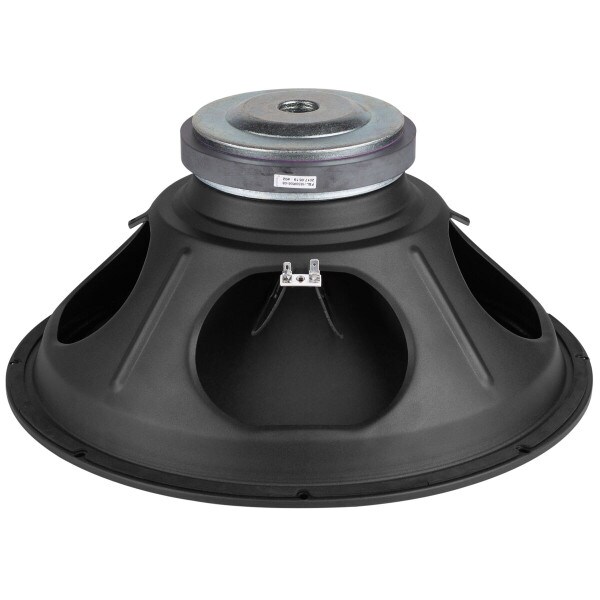

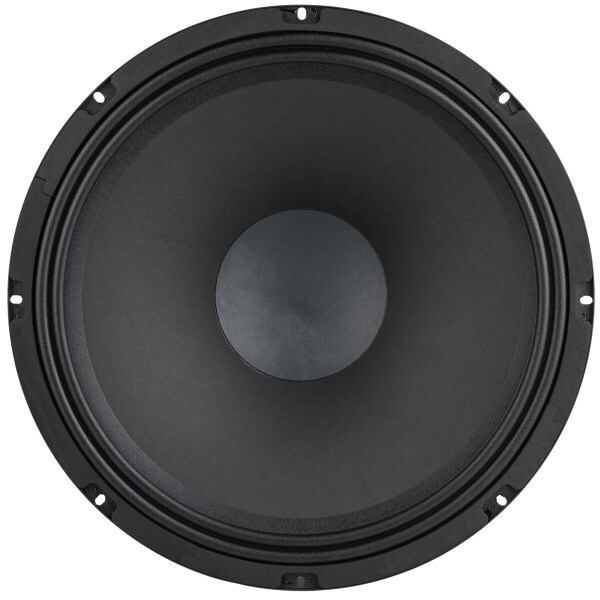

  • Peerless by Tymphany FSL-1830R06-08 18" Professional Paper Cone Subwoofer 8 Ohm

CLEARANCE Peerless by Tymphany FSL-1830R06-08 18" Professional Paper Cone Subwoofer 8 Ohm

Peerless by TymphanyPart # 264-1482
Model: FSL-1830R06-08
High output at reasonable cost makes the FSL-1830R06-08 8 ohm 18" woofer from Tymphany a real performer. This driver features a 3" voice coil with an FEA optimized vented magnet to increase efficiency and deliver high output without requiring a lot of power.

Key Features

  • Optimized surround and spider reduces distortion at high excursion
  • High excursion design produces powerful low frequency response
  • Vented pole piece increases power handling while reducing compression
  • Great replacement or upgrade for existing sound reinforcement cabinets
Get Notified When Available

We'll send you an email when Peerless by Tymphany FSL-1830R06-08 18" Professional Paper Cone Subwoofer 8 Ohm is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

Peerless by Tymphany FSL-1830R06-08 18" Professional Paper Cone Subwoofer 8 Ohm

With high excursion capability and an economical price, the Peerless FSL-1830R06-08 18" professional woofer is an incredible bargain. This driver will produce plenty of tight, accurate low end with a nice punch, making it perfect for use in small bass bins, bass guitar cabinets, or even as a woofer in 3-way sound reinforcement cabinets. The reinforced stamped frame, double roll surround, and paper cone have been designed to handle the stress of pro sound without breaking the bank.

Product Details

BrandPeerless by Tymphany
ModelFSL-1830R06-08
Part Number264-1482
UPC848864045061
Unit of MeasureEach
Weight19.55

Product Specifications

Nominal Diameter18"
Bolt Circle Diameter17.55
Power Handling (RMS)700 Watts
Power Handling (MAX)1400 Watts
Impedance8Ω
Frequency Response30 to 400Hz
Sensitivity91.83dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)30.6Hz
DC Resistance (Re)6.18Ω
Voice Coil Inductance (Le)4.31mH
Mechanical Q (Qms)12.86
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.56
Compliance Equivalent Volume (Vas)9.84ft³
Mechanical Compliance of Suspension (Cms)0.131mm/N
BL Product (BL)20.38T·m
Diaphragm Mass Inc. Airload (Mms)206.2g
Maximum Linear Excursion (Xmax)9.4mm
Surface Area of Cone (Sd)1225.4cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter18.1"
Baffle Cutout Diameter16.375"
Depth8.55"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume4.25ft³
Sealed F348Hz
Vented Volume6.5ft³
Vented F334.7Hz
