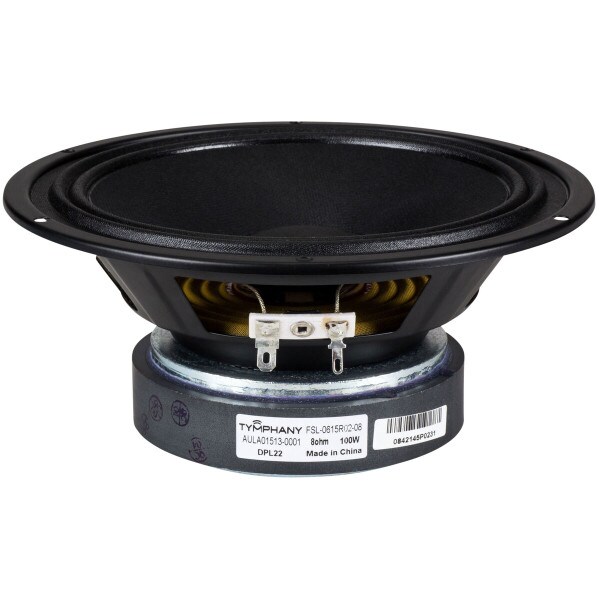

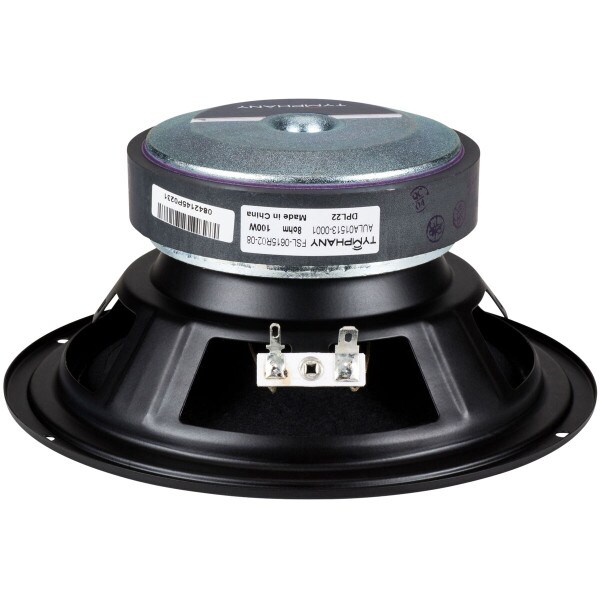

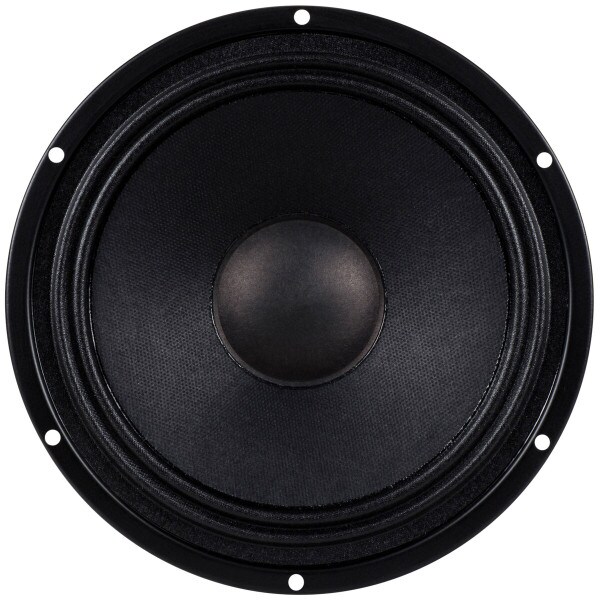

Peerless by Tymphany FSL-0615R02-08 Professional 6-1/2" Midrange Woofer 8 Ohm

Peerless by Tymphany
Part #264-1402

Peerless by Tymphany FSL-0615R02-08 Professional 6-1/2" Midrange Woofer 8 Ohm

Peerless by Tymphany
Part #264-1402
The FSL-0615R02 8 ohm mid-woofer from Tymphany has smooth on and off axis response to over 3,000 Hz, making it an excellent woofer for a wide dispersion speaker system such as stage monitors or compact PA systems.
Key Features
  • Optimized multi-roll surround and spider for reduced distortion
  • Extremely flat off axis response mates easily with wide dispersion tweeters
  • High efficiency and excursion allow for high output without much effort
  • Durable construction with a reinforced stamped steel frame ensures a long life
Your Price: $22.57
MSRP: $34.99
Save $12.42 (35%)
Bulk Pricing
Order in the next 1 hr 6 min to ship today. Details

200In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany FSL-0615R02-08 Professional 6-1/2" Midrange Woofer 8 Ohm

This rugged woofer, with a high strength steel frame, 1.5" high temperature voice coil, and optimized suspension, is a terrific midbass for use in a compact PA speaker or even a midrange in a larger 3-way. The FSL-0615R02-08 has a surprisingly flat response up to 4,000 Hz, even at 60 degrees off axis, for accurate, room filling audio. The surround, cone, and spider are optimized to minimize distortion all the way up to the limits of excursion.

Product Details

BrandPeerless by Tymphany
ModelFSL-0615R02-08
Part Number264-1402
UPC848864016931
Unit of MeasureEach
Weight3.55

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.5
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance8Ω
Frequency Response80-4,000Hz
Sensitivity94.96dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)101Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.25mH
Mechanical Q (Qms)3
Electromagnetic Q (Qes)0.66
Total Q (Qts)0.53
Compliance Equivalent Volume (Vas)0.25ft³
Mechanical Compliance of Suspension (Cms)0.276mm/N
BL Product (BL)6.67T·m
Diaphragm Mass Inc. Airload (Mms)9.29g
Maximum Linear Excursion (Xmax)2.6mm
Surface Area of Cone (Sd)142.7cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.85"
Baffle Cutout Diameter5.75"
Depth3.189"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F3150.9Hz
Vented Volume0.5ft³
Vented F383.5Hz
