  • Peerless by Tymphany BC25TG15-08 1" Fabric Dome Tweeter 8 Ohm

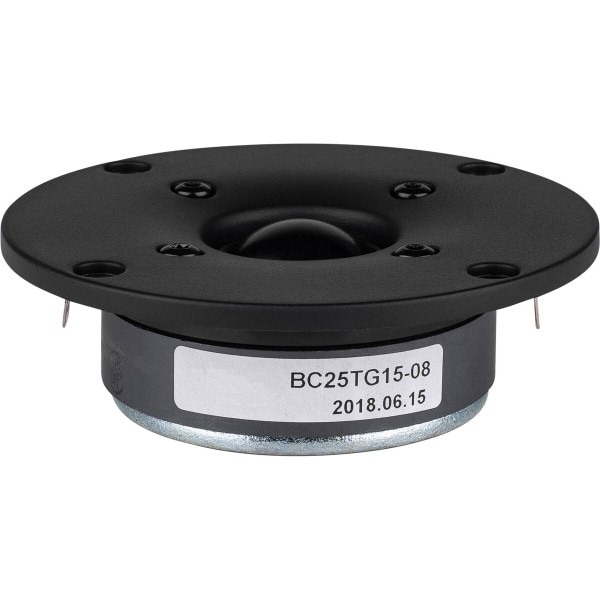

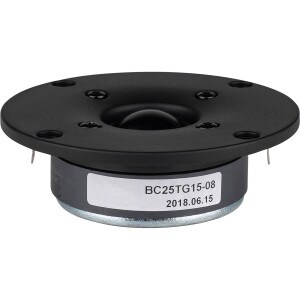

Peerless by Tymphany BC25TG15-08 1" Fabric Dome Tweeter 8 Ohm

Peerless by TymphanyPart # 264-1442
Model: BC25TG15-08
The BC25SG15-08 1" dome tweeter from Tymphany can meet the most demanding requirements for audio excellence.

Key Features

  • Sculpted, recessed-loaded round 4-hole faceplate
  • Smooth, extended response and high efficiency
  • 1" textile dome
  • Ferrofluid cooled voice coil
Similar items that may interest you:
Dayton Audio DC25T-8 1" Titanium Dome Tweeter
Price: $17.98Part # 275-045
GRS 1TD1-8 1" Dome Tweeter 8 Ohm
Price: $8.49Part # 292-462
See all items in Tweeters
Your Price: $17.79
MSRP: $24.99
Save $7.20 (29%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany BC25TG15-08 1" Fabric Dome Tweeter 8 Ohm is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany BC25TG15-08 1" Fabric Dome Tweeter 8 Ohm

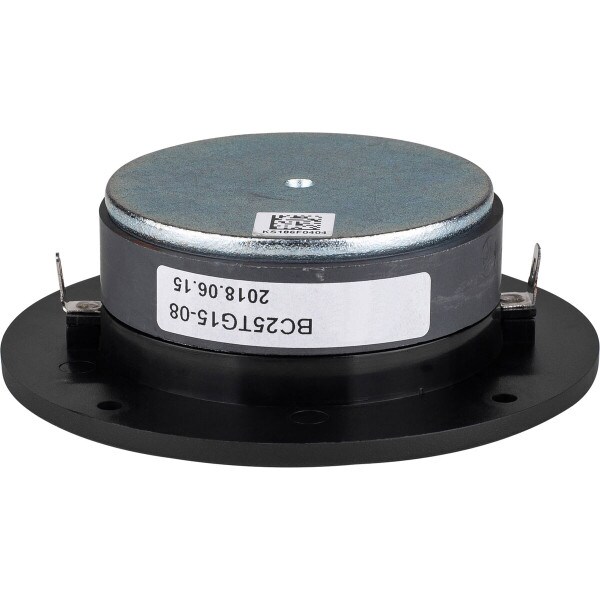

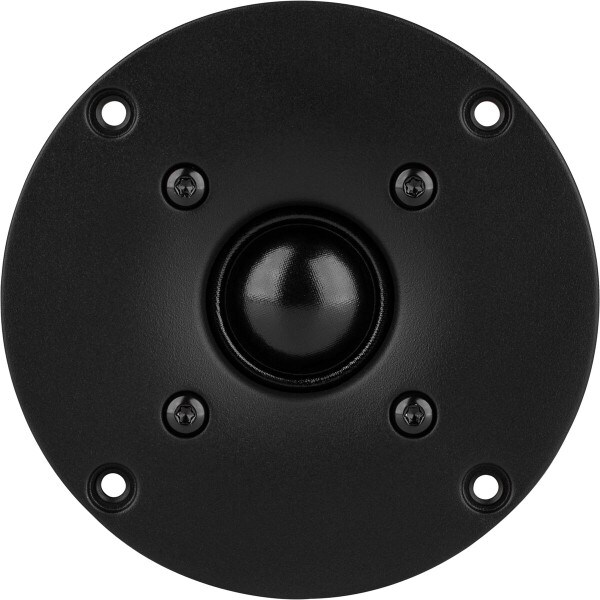

The Peerless BC25TG15-08 tweeter features an 8 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, and ferrofluid in the gap of the ferrite motor, providing enhanced cooling of the voice coil. The tweeter comes with a compact faceplate with recessed mounting holes, complete with sealing gasket which helps in reducing vibration between baffle and driver.

Product Details

BrandPeerless by Tymphany
ModelBC25TG15-08
Part Number264-1442
UPC848864045207
Unit of MeasureEach
Weight1.14

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter2.76
Tweeter TypeSoft Dome
Power Handling (RMS)100 Watts
Impedance
Frequency Response1,000 to 20,000Hz
Sensitivity91.71dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1136Hz
DC Resistance (Re)6.53Ω
Voice Coil Inductance (Le)0.04mH
Mechanical Q (Qms)2.21
Electromagnetic Q (Qes)1.58
Total Q (Qts)0.92

Mounting Information

Overall Outside Diameter4.11"
Depth1.28"
