  • Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

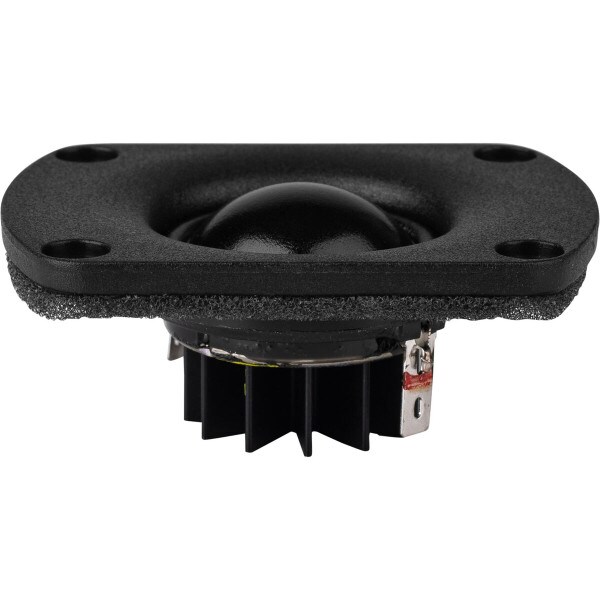

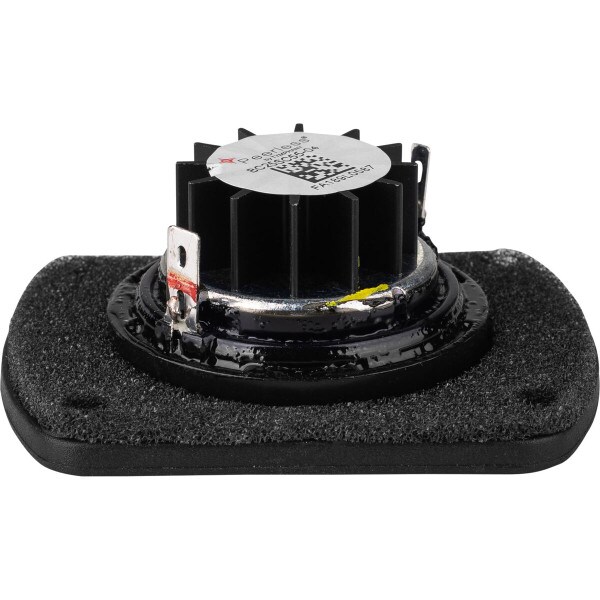

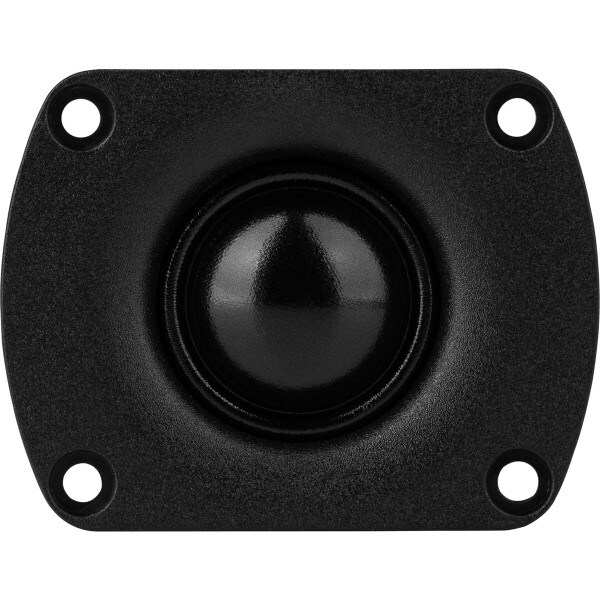

Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

Peerless by TymphanyPart # 264-1024
Model: BC25SC55-04
The smooth-sounding BC25 SC55-04 1" compact soft dome tweeter from Tymphany features high output and response past 30 kHz thanks to a high-strength neodymium motor with heatsink fins.

Key Features

  • Polymer faceplate with recessed waveguide loading
  • 1" treated soft dome
  • Neodymium magnet for high output and compact size
  • Truncated faceplate permits optimal driver spacing
  • Rear heatsink increases thermal management
  • Frequency response extends past 30 kHz
Your Price: $23.98
MSRP: $31.99
Save $8.01 (25%)
Bulk Pricing
Quantity:Qty: 1-3 $23.98/ea
Quantity:Qty: 4+ $22.60/ea
In Stock
Get Notified When Available

We'll send you an email when Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany BC25SC55-04 1" Square Frame Tweeter

Smooth-sounding compact soft dome tweeter with high output and response past 30 kHz. High-strength neodymium motor with heatsink fins. The truncated faceplate helps this tweeter achieve optimum center-to-center driver placement in many baffle designs.

Product Details

BrandPeerless by Tymphany
ModelBC25SC55-04
Part Number264-1024
UPC844632083730
Unit of MeasureEach
Weight0.15

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.70
Tweeter TypeSoft Dome
Power Handling (RMS)25 Watts
Impedance
Frequency Response1,400 to 20,000Hz
Sensitivity93.3dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1401.5Hz
DC Resistance (Re)2.74Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)3.82
Electromagnetic Q (Qes)1.83
Total Q (Qts)1.24

Mounting Information

Overall Outside Diameter2.74" x 2.13"
Depth1.1"
