  • Peerless by Tymphany BC25SC08-08 1" Fabric Dome Tweeter 8 Ohm

Peerless by Tymphany BC25SC08-08 1" Fabric Dome Tweeter 8 Ohm

Peerless by Tymphany
Part #264-1440

Peerless by Tymphany BC25SC08-08 1" Fabric Dome Tweeter 8 Ohm

Peerless by Tymphany
Part #264-1440
Model: BC25SC08-08

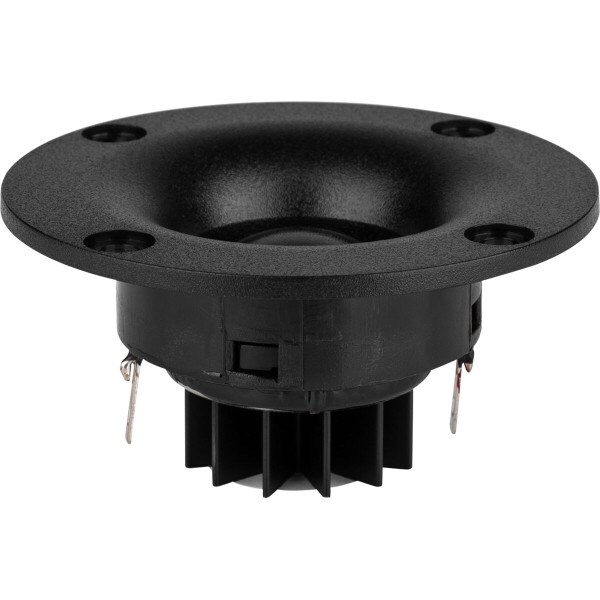

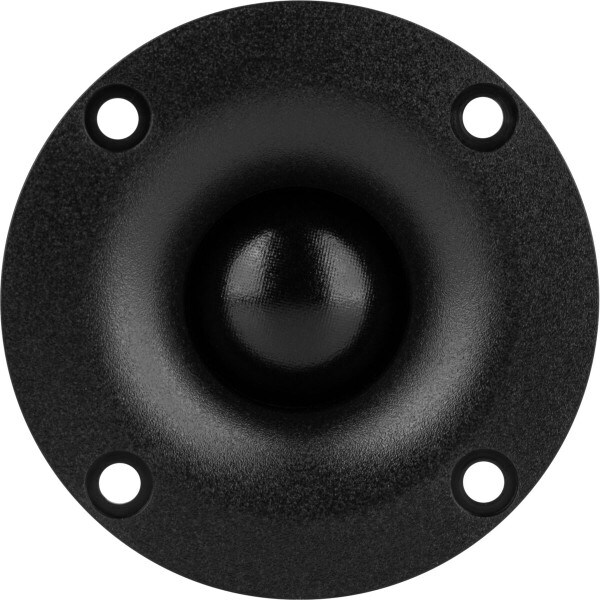

The Peerless BC25SC08-08 tweeter features an 8 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, a bucking magnet for higher sensitivities, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil.
Key Features
  • Damped fabric dome for smooth frequency response
  • Features a bucking magnet for higher sensitivity
  • Utilizes ferrofluid for improved power handling

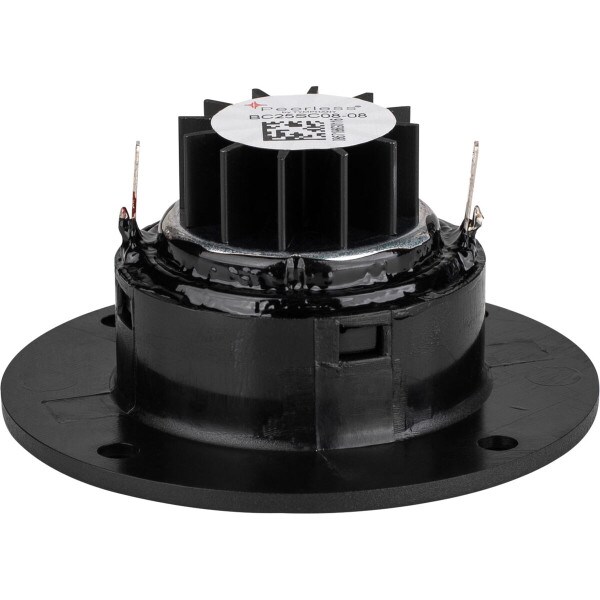

  • Rear heat sink for improved heat dispersion
Similar items that may interest you:
Your Price: $18.09
MSRP: $24.99
Save $6.90 (28%)
Bulk Pricing

Out of Stock

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Peerless by Tymphany BC25SC08-08 1" Fabric Dome Tweeter 8 Ohm

The Peerless BC25SC08-08 tweeter features an 8 ohm 25 mm voice coil, a damped fabric dome for smooth frequency response performance, a bucking magnet for higher sensitivities, and ferrofluid in the gap of the NdFeB motor, providing enhanced cooling of the voice coil. The tweeter comes with a bucking magnet and a compact faceplate with recessed mounting holes, greatly increasing the sensitivity of the tweeter. A finned heat sink has been added for improved power handling.

Product Details

BrandPeerless by Tymphany
ModelBC25SC08-08
Part Number264-1440
UPC848864045191
Unit of MeasureEach
Weight0.18

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.69
Tweeter TypeSoft Dome
Power Handling (RMS)100 Watts
Impedance
Frequency Response2,500 to 20,000Hz
Sensitivity93.99dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1731Hz
DC Resistance (Re)6.57Ω
Voice Coil Inductance (Le)0.03mH
Mechanical Q (Qms)4.23
Electromagnetic Q (Qes)1.83
Total Q (Qts)1.28

Mounting Information

Overall Outside Diameter2.76"
Depth1.25"
