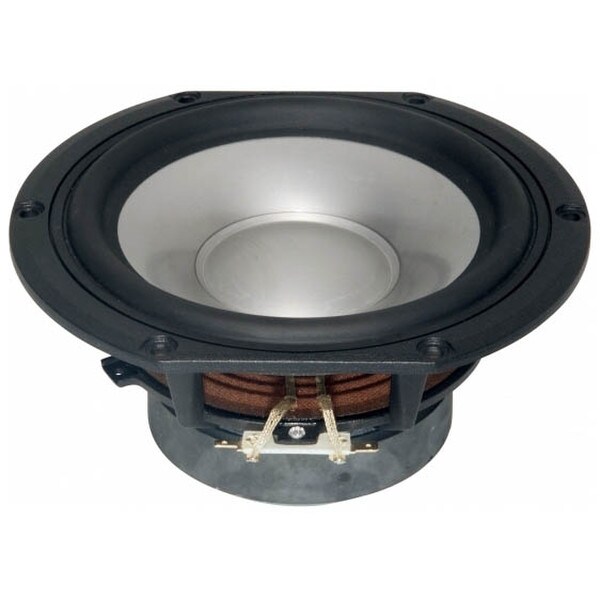

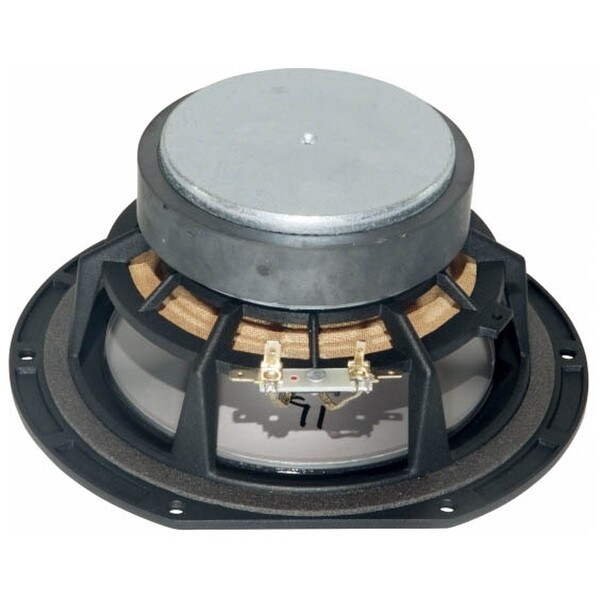

Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

Peerless by TymphanyPart # 264-1086
Model: HDS-P835025
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.

Key Features

  • Truncated cast aluminum frame
  • Aluminum cone with half-roll rubber surround
  • Long-throw voice coil
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation
Your Price: $64.59
MSRP: $106.99
Save $42.40 (40%)
Bulk Pricing
Quantity:Qty: 1-3 $64.59/ea
Quantity:Qty: 4+ $56.62/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer is back in stock or available for preorder.

Estimated back in stock 9/12/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany HDS-P835025 6-1/2" Aluminum Cone HDS Woofer

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. The aluminum cone combines high strength with low moving mass, offering superb transient response and sharp definition.

Product Details

BrandPeerless by Tymphany
ModelHDS-P835025
Part Number264-1086
UPC844632084041
Unit of MeasureEach
Weight3.1

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)55 Watts
Power Handling (MAX)110 Watts
Impedance8Ω
Frequency Response20 to 3,000Hz
Sensitivity87.2dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)38Hz
DC Resistance (Re)6.3Ω
Voice Coil Inductance (Le)0.39mH
Mechanical Q (Qms)3.3
Electromagnetic Q (Qes)0.42
Total Q (Qts)0.37
Compliance Equivalent Volume (Vas)0.87ft³
Mechanical Compliance of Suspension (Cms)0.86mm/N
BL Product (BL)8.58T·m
Diaphragm Mass Inc. Airload (Mms)20.13g
Maximum Linear Excursion (Xmax)5.39mm
Surface Area of Cone (Sd)143.1cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

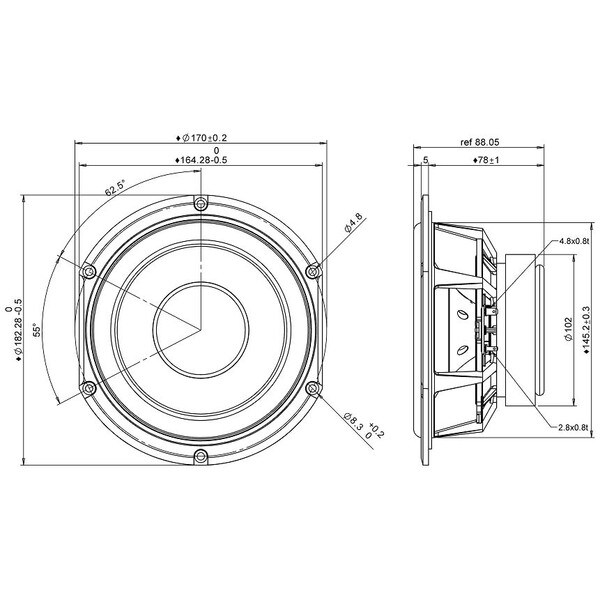

Mounting Information

Overall Outside Diameter7.18"
Baffle Cutout Diameter5.75"
Depth3.47"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.25ft³
Sealed F381.4Hz
Vented Volume0.5ft³
Vented F348.2Hz
