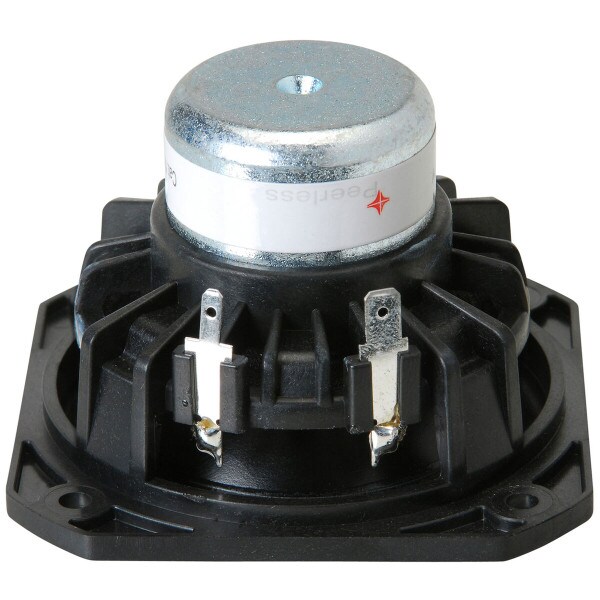

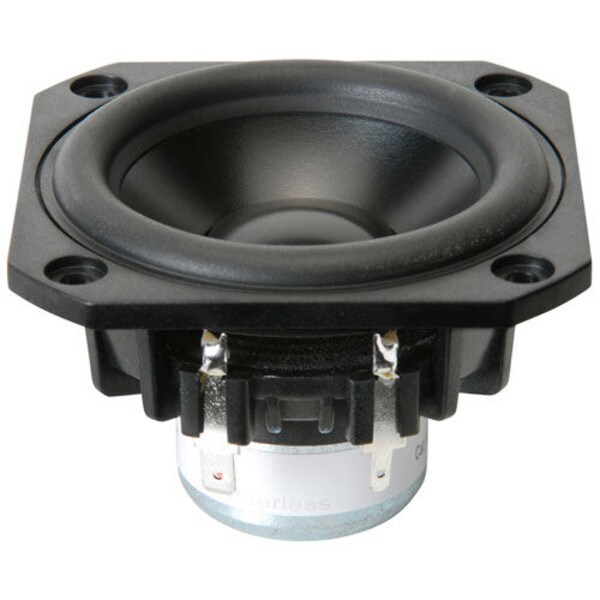

Peerless by Tymphany 830986 3" Full Range Woofer

Part #264-1056

Read 9 Reviews | 8 Questions, 17 Answers or

Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.

Key Features

Neodymium magnet
Double-vented motor
Anodized aluminum center dome
Distortion-reducing semi-progressive surround
Copper pole piece cap controls impedance

Frequently Bought Together

This Product: Peerless by Tymphany 830986 3" Full Range Woofer	$49.99
Parts Express Speaker Gasketing Tape 1/8" x 3/8" x 50 ft. Roll	$13.98
Dayton Audio SBPP-SI Binding Post Plate Silver Anodized	$12.98
Dayton Audio BPP-SN Premium Binding Post Banana Jack Pair Satin Nickel	$22.98

Total Price: $99.93

This Product:Peerless by Tymphany 830986 3" Full Range Woofer$49.99

Parts Express Speaker Gasketing Tape 1/8" x 3/8" x 50 ft. Roll$13.98

Dayton Audio SBPP-SI Binding Post Plate Silver Anodized$12.98

Dayton Audio BPP-SN Premium Binding Post Banana Jack Pair Satin Nickel$22.98

4 ItemsTotal Price: $99.93

Overview

Peerless by Tymphany 830986 3" Full Range Woofer

Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs. With their high power handling, smooth, even dispersion, and low distortion, the Peerless 2-1/2" full range drivers can be paired with the Tymphany LAT250 for great bass performance. A neodymium motor structure and double-venting system keeps dynamic range intact, as the transducer can handle more power and dissipate excess heat efficiently. An anodized aluminum dome provides superior sound dispersion and off-axis response. A semi-progressive surround reduces distortion, especially at high output through long excursion. The driver's direct connected dome dust cap (attached to the magnet system voice coil) improves dispersion at high frequencies, providing superior sound at the higher frequencies. The inserted copper cap on the pole piece ensures control of the system impedance, thereby extending the upper frequency range.

Product Details
Brand	Peerless by Tymphany
Model	PLS-P830986
Part Number	264-1056
UPC	844632083891
Unit of Measure	Each
Weight	0.45

Product Specifications
Nominal Diameter	3"
Bolt Circle Diameter	3.25
Power Handling (RMS)	12 Watts
Power Handling (MAX)	30 Watts
Impedance	8Ω
Frequency Response	100 to 15,000Hz
Sensitivity	83.6dB 2.83V/1m
Voice Coil Diameter	1"

Thiele-Small Parameters
Resonant Frequency (Fs)	102Hz
DC Resistance (Re)	6.2Ω
Voice Coil Inductance (Le)	0.05mH
Mechanical Q (Qms)	5.1
Electromagnetic Q (Qes)	0.89
Total Q (Qts)	0.76
Compliance Equivalent Volume (Vas)	0.03ft³
Mechanical Compliance of Suspension (Cms)	0.9mm/N
BL Product (BL)	3.43T·m
Diaphragm Mass Inc. Airload (Mms)	2.56g
Maximum Linear Excursion (Xmax)	2.05mm
Surface Area of Cone (Sd)	27.3cm²

Materials of Construction
Cone Material	Aluminum
Surround Material	Rubber
Basket / Frame Material	Polymer
Magnet Material	Neodymium

Mounting Information
Overall Outside Diameter	3.07"
Baffle Cutout Diameter	2.83"
Depth	2.138"
# Mounting Holes	4

Parts Express Staff Recommended Enclosure Volume
Sealed Volume	0.06ft³
Sealed F3	110.7Hz
Vented Volume	0.08ft³
Vented F3	76.9Hz
