  • Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer

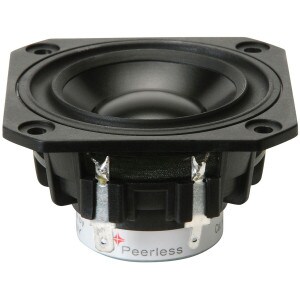

Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer

Peerless by TymphanyPart # 264-1050
Model: PLS-P830985
Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs.

Key Features

  • Neodymium magnet
  • Double-vented motor
  • Anodized aluminum center dome
  • Distortion-reducing semi-progressive surround
  • Inverted half-roll rubber surround
  • Copper pole piece cap controls impedance
Your Price: $21.19
MSRP: $27.99
Save $6.80 (24%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer is back in stock or available for preorder.

Estimated back in stock 11/21/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany PLS-P830985 2-1/2" Full Range Woofer

Tymphany/Peerless full range drivers set the standard for quality audio in products including flat panel televisions and sound bars, MP3 and cell phone docking stations, and multimedia PCs. With their high power handling, smooth, even dispersion, and low distortion, the Peerless 2-1/2" full range drivers can be paired with the Tymphany LAT250 for great bass performance. A neodymium motor structure and double-venting system keeps dynamic range intact, as the transducer can handle more power and dissipate excess heat efficiently. An anodized aluminum dome provides superior sound dispersion and off-axis response. An inverted semi-progressive surround reduces distortion, especially at high output through long excursion. The driver's direct connected dome dust cap (attached to the magnet system voice coil) improves dispersion at high frequencies, providing superior sound at the higher frequencies. The inserted copper cap on the pole piece ensures control of the system impedance, thereby extending the upper frequency range.

Specifications: • Power handling: 7 watts RMS/70 watts max • VCdia: 1" • Le: 0.3 mH • Impedance: 4 ohms • Re: 3.7 ohms • Frequency response: 90-20,000 Hz • Fs: 101.2 Hz • SPL: 86.5 dB 2.83V/1m • Vas: 0.028 cu. ft. • Qms: 3.46 • Qes: 0.64 • Qts: 0.54 • Xmax: 2 mm • Dimensions: Overall diameter 2.75" (3.35" diagonally ear-to-ear), Cutout diameter 2.42", Depth 2.15".

Product Details

BrandPeerless by Tymphany
ModelPLS-P830985
Part Number264-1050
UPC844632083860
Unit of MeasureEach
Weight0.3

Product Specifications

Nominal Diameter2-1/2"
Bolt Circle Diameter2.91
Power Handling (RMS)7 Watts
Power Handling (MAX)70 Watts
Impedance4Ω
Frequency Response90 to 20,000Hz
Sensitivity86.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)101.2Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.3mH
Mechanical Q (Qms)3.46
Electromagnetic Q (Qes)0.64
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.02ft³
Mechanical Compliance of Suspension (Cms)1.27mm/N
BL Product (BL)2.7T·m
Diaphragm Mass Inc. Airload (Mms)1.9g
Maximum Linear Excursion (Xmax)2mm
Surface Area of Cone (Sd)22cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter3.35" diagonally, 2.75"
Baffle Cutout Diameter2.42"
Depth2.15"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.03ft³
Sealed F3148.8Hz
Vented Volume0.04ft³
Vented F383.2Hz
