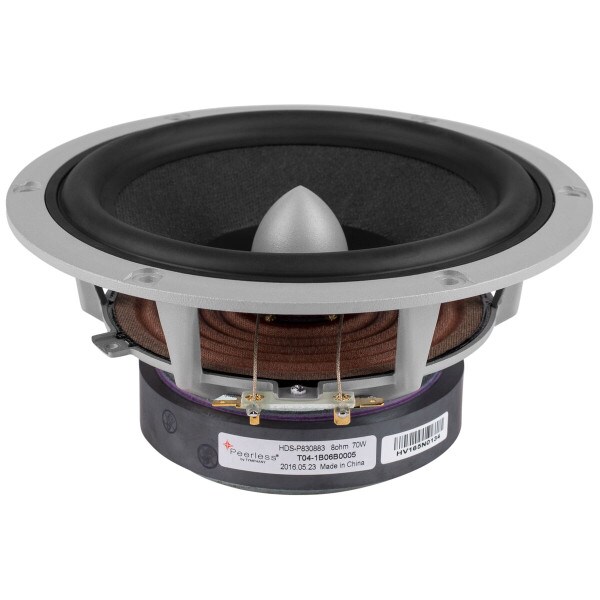

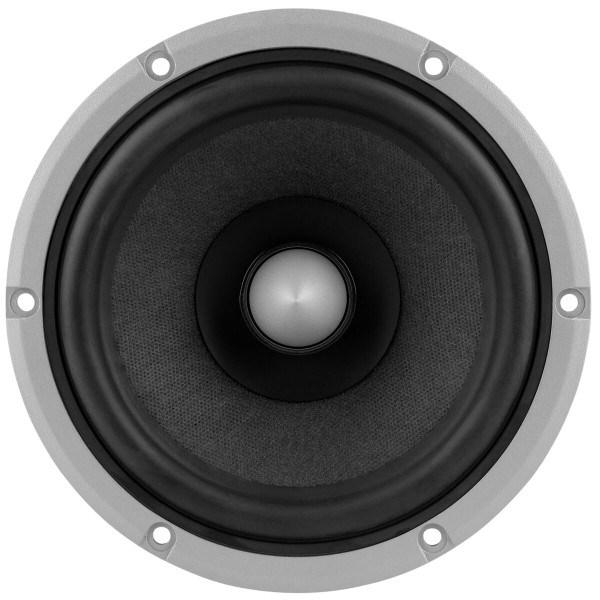

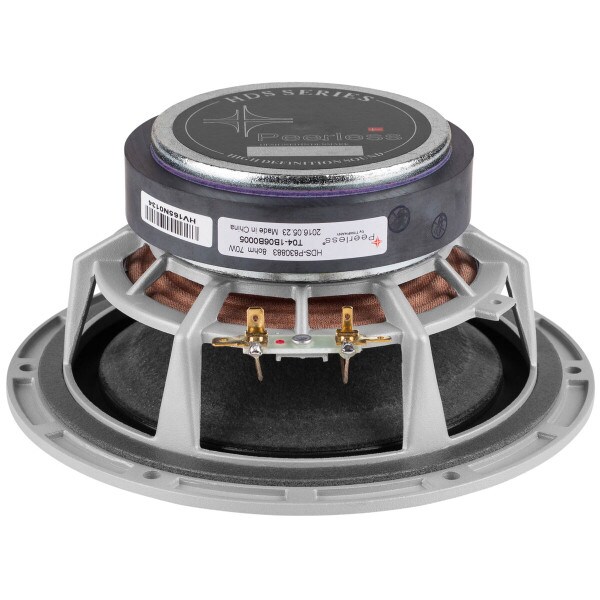

Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer

Peerless by TymphanyPart # 264-1094
Model: HDS-P830883
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.

Key Features

  • Peerless HDS Exclusive Series
  • Cast aluminum frame
  • Nomex cone with half-roll rubber surround
  • Long-throw voice coil
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation
  • Aluminum phase plug improves off-axis linearity
Similar items that may interest you:
Dayton Audio DC160-8 6-1/2" Classic Woofer
Price: $31.98Part # 295-305
GRS 6PR-8 6-1/2" Poly Cone Rubber Surround Woofer
Price: $14.98Part # 292-426
See all items in Woofers
Your Price: $63.98
MSRP: $83.99
Save $20.01 (24%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer is back in stock or available for preorder.

Estimated back in stock 9/12/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany HDS-P830883 6-1/2" Nomex Cone HDS Woofer

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. The famous Peerless Nomex cone offers neutral, accurate audio reproduction.

Product Details

BrandPeerless by Tymphany
ModelHDS-P830883
Part Number264-1094
UPC844632084089
Unit of MeasureEach
Weight3.85

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response40 to 3,000Hz
Sensitivity87.2dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)43Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.18mH
Mechanical Q (Qms)2.2
Electromagnetic Q (Qes)0.46
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.81ft³
Mechanical Compliance of Suspension (Cms)0.8mm/N
BL Product (BL)7.7T·m
Diaphragm Mass Inc. Airload (Mms)17.34g
Maximum Linear Excursion (Xmax)5.62mm
Surface Area of Cone (Sd)143.1cm²

Materials of Construction

Cone MaterialNomex
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.09"
Baffle Cutout Diameter5.75"
Depth3.43"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F389.6Hz
Vented Volume0.6ft³
Vented F348.1Hz
