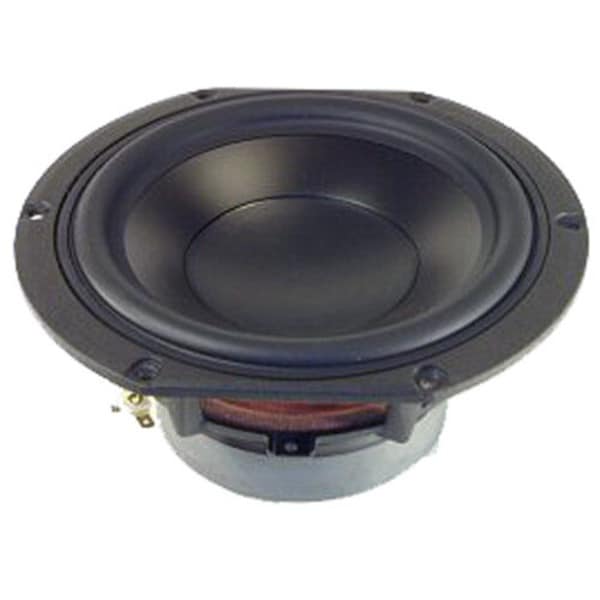

Peerless by Tymphany 830874 6-1/2" PPB Cone HDS Woofer

Peerless by Tymphany
Part #264-1090

Peerless by Tymphany 830874 6-1/2" PPB Cone HDS Woofer

Peerless by Tymphany
Part #264-1090
Model: HDS-P830874
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.
Key Features
  • Truncated cast aluminum frame
  • PPB polypropylene cone with half-roll rubber surround
  • Long-throw voice coil for high excursion
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation
Your Price: $50.93
MSRP: $74.99
Save $24.06 (32%)
Bulk Pricing
Quantity:Qty: 1-3 $50.93/ea
Quantity:Qty: 4+$43.99/ea

Back-Ordered

Advertised price subject to change due to tariff uncertainty
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany 830874 6-1/2" PPB Cone HDS Woofer

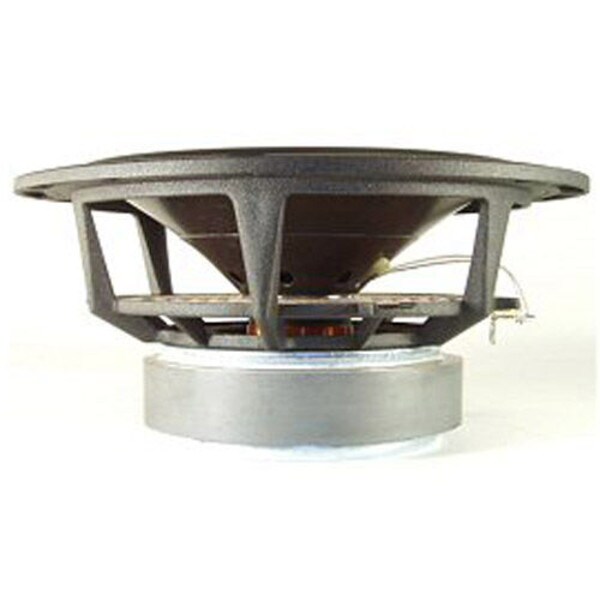

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. Peerless developed the proprietary and highly advanced Polypropylene Black (PPB) cone material used in the HDS PPB Series, creating a stiff but still dampened cone that remains stable even under the greatest sound pressures.

Product Details

BrandPeerless by Tymphany
ModelHDS-P830874
Part Number264-1090
UPC844632084065
Unit of MeasureEach
Weight3.7

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance8Ω
Frequency Response50 to 4,000Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)58Hz
DC Resistance (Re)6.5Ω
Voice Coil Inductance (Le)0.42mH
Mechanical Q (Qms)2.3
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.44ft³
Mechanical Compliance of Suspension (Cms)0.43mm/N
BL Product (BL)8.82T·m
Diaphragm Mass Inc. Airload (Mms)17.34g
Maximum Linear Excursion (Xmax)5.38mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.18"
Baffle Cutout Diameter5.72"
Depth3.44"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3106.8Hz
Vented Volume0.5ft³
Vented F353.5Hz
