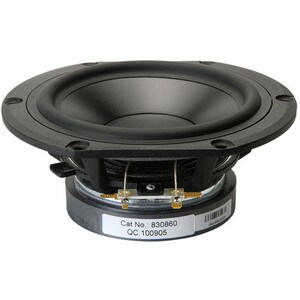

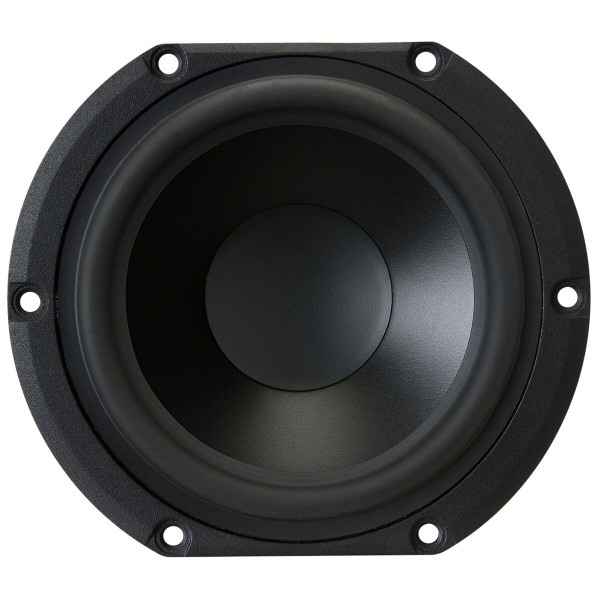

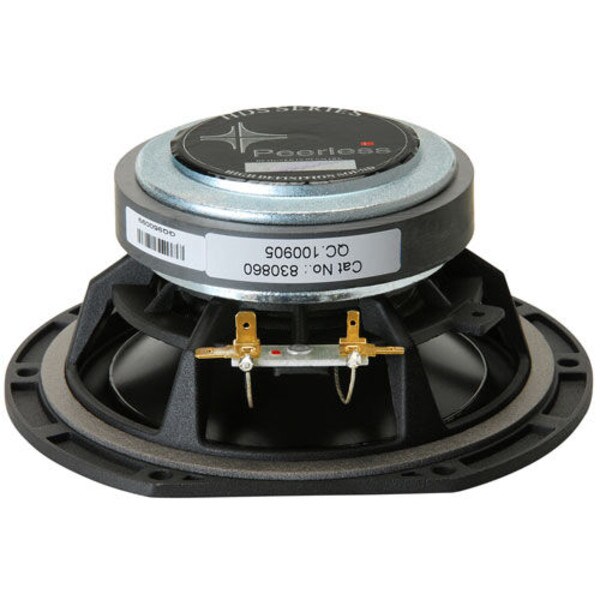

Peerless by Tymphany HDS-P830860 5-1/4" PPB Cone HDS Woofer

Peerless by TymphanyPart # 264-1080
Model: HDS-P830860
The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments.

Key Features

  • Truncated cast aluminum frame
  • PPB polypropylene cone with half-roll rubber surround
  • Long-throw voice coil
  • Shorting rings for reduced distortion
  • Under-spider and voice coil ventilation
Similar items that may interest you:
Dayton Audio DC130A-8 5-1/4" Classic Woofer Speaker
Price: $24.98Part # 295-303
Aurum Cantus AC-130F1 5-1/4" Woofer
Price: $82.98Part # 296-400
See all items in Woofers
Your Price: $42.98
MSRP: $62.99
Save $20.01 (32%)
Bulk Pricing
Quantity:Qty: 1-3 $42.98/ea
Quantity:Qty: 4+ $37.68/ea
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany HDS-P830860 5-1/4" PPB Cone HDS Woofer is back in stock or available for preorder.

Estimated back in stock 8/15/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany HDS-P830860 5-1/4" PPB Cone HDS Woofer

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. Peerless developed the proprietary and highly advanced Polypropylene Black (PPB) cone material used in the HDS PPB Series, creating a stiff but still dampened cone that remains stable even under the greatest sound pressures.

Product Details

BrandPeerless by Tymphany
ModelHDS-P830860
Part Number264-1080
UPC844632084010
Unit of MeasureEach
Weight2.5

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response60 to 5,000Hz
Sensitivity85.8dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)62Hz
DC Resistance (Re)5.9Ω
Voice Coil Inductance (Le)0.27mH
Mechanical Q (Qms)2.21
Electromagnetic Q (Qes)0.59
Total Q (Qts)0.47
Compliance Equivalent Volume (Vas)0.3ft³
Mechanical Compliance of Suspension (Cms)0.74mm/N
BL Product (BL)5.9T·m
Diaphragm Mass Inc. Airload (Mms)9g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)89.9cm²

Materials of Construction

Cone MaterialPoly
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.99"
Baffle Cutout Diameter4.72"
Depth2.76"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3104.4Hz
Vented Volume0.4ft³
Vented F357Hz
