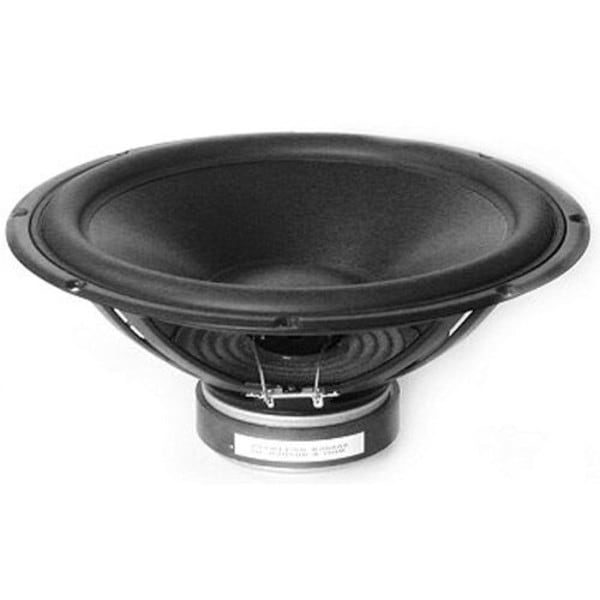

Peerless by Tymphany SLS-P830669 12" Paper Cone SLS Subwoofer

Peerless by TymphanyPart # 264-1118
Model: SLS-P830669
The Peerless SLS Series combines high quality performance with an affordable design.

Key Features

  • Premium sculpted stamped steel chassis
  • Coated paper cone with rubber edge
  • Shorting ring in magnet system
Similar items that may interest you:
Dayton Audio RSS315HFA-8 12" Reference Series HF Subwoofer 8 Ohm
Price: $239.98Part # 295-445
LaVoce SSF122.50L 12" Paper Cone Subwoofer
Price: $159.00Part # 293-788
See all items in Subwoofer Drivers
Your Price: $85.98
MSRP: $112.99
Save $27.01 (24%)
Bulk Pricing
Back-Ordered
Get Notified When Available

We'll send you an email when Peerless by Tymphany SLS-P830669 12" Paper Cone SLS Subwoofer is back in stock or available for preorder.

Estimated back in stock 9/5/2025
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany SLS-P830669 12" Paper Cone SLS Subwoofer

The Peerless SLS Series combines high quality performance with an affordable design. The SLS drivers are ideal for use in systems with high power handling requirements, and are a logical choice for use with the SDS line of transducers.

Product Details

BrandPeerless by Tymphany
ModelSLS-P830669
Part Number264-1118
UPC844632084201
Unit of MeasureEach
Weight8.35

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter12
Power Handling (RMS)110 Watts
Power Handling (MAX)220 Watts
Impedance
Frequency Response30 to 2,000Hz
Sensitivity89.8dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)31Hz
DC Resistance (Re)5.6Ω
Voice Coil Inductance (Le)1.12mH
Mechanical Q (Qms)7.1
Electromagnetic Q (Qes)0.58
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)4.68ft³
Mechanical Compliance of Suspension (Cms)0.35mm/N
BL Product (BL)11.88T·m
Diaphragm Mass Inc. Airload (Mms)74.11g
Maximum Linear Excursion (Xmax)8.3mm
Surface Area of Cone (Sd)522.8cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12"
Baffle Cutout Diameter10.91"
Depth5.95"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume2.4ft³
Sealed F347.4Hz
Vented Volume3ft³
Vented F335.4Hz
