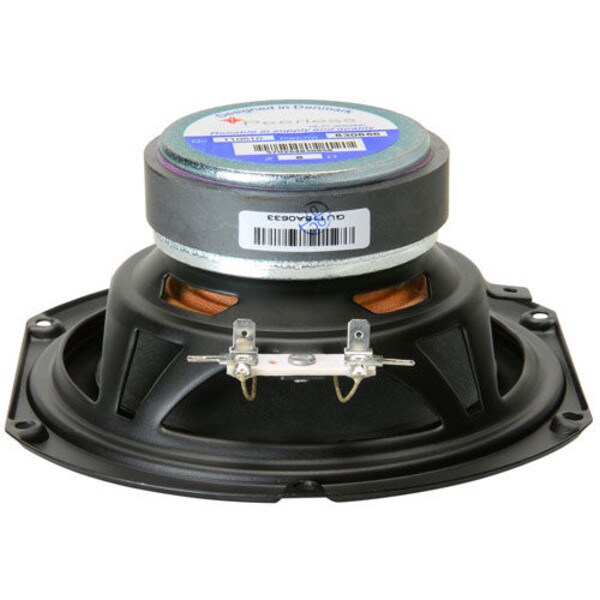

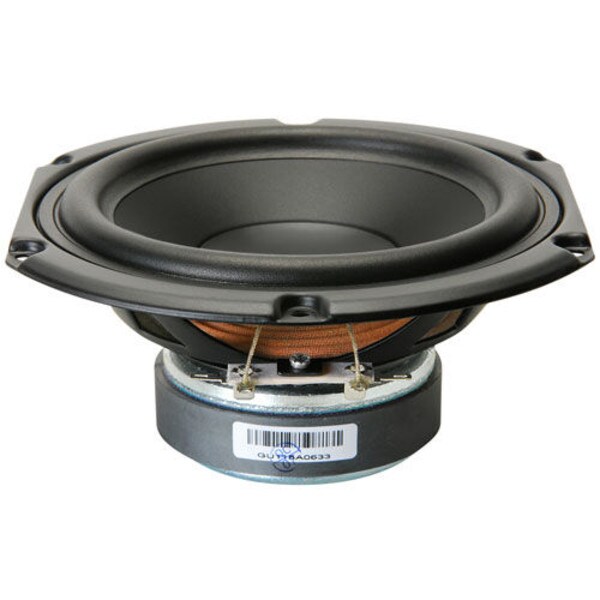

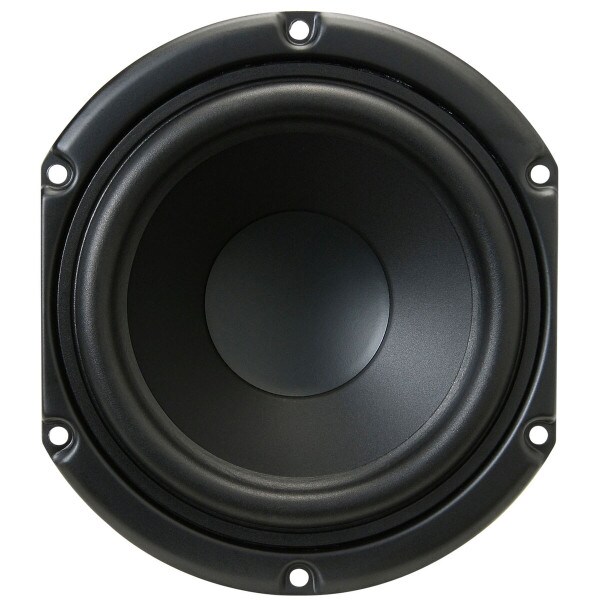

Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer

Peerless by TymphanyPart # 264-1078
Model: SDS-P830656
The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today.

Key Features

  • Premium sculpted stamped steel chassis
  • Coated paper cone with rubber edge
  • Smooth, extended response
Your Price: $21.49
MSRP: $27.99
Save $6.50 (23%)
Bulk Pricing
Quantity:Qty: 1-4 $21.49/ea
Quantity:Qty: 5-9 $20.50/ea
Quantity:Qty: 10+ $19.55/ea
In Stock
Get Notified When Available

We'll send you an email when Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany SDS-P830656 5-1/4" Paper Cone SDS Woofer

The Peerless Superior Dynamic Sounds (SDS) Series provides the lowest cost/highest-quality woofers in the industry today. The SDS woofers are characterized by their very smooth frequency response all the way into the midrange, with low distortion and consistent off-axis performance. Applying the best in Danish engineering, but manufactured to be very affordable, these audio transducers are ideal for use in small surround sound systems and other hi-fi applications.

Product Details

BrandPeerless by Tymphany
ModelSDS-P830656
Part Number264-1078
UPC844632084003
Unit of MeasureEach
Weight1.65

Product Specifications

Nominal Diameter5-1/4"
Power Handling (RMS)60 Watts
Power Handling (MAX)110 Watts
Impedance8Ω
Frequency Response50 to 5,000Hz
Sensitivity84.5dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)57Hz
DC Resistance (Re)6.1Ω
Voice Coil Inductance (Le)0.37mH
Mechanical Q (Qms)3.6
Electromagnetic Q (Qes)0.7
Total Q (Qts)0.59
Compliance Equivalent Volume (Vas)0.31ft³
Mechanical Compliance of Suspension (Cms)0.83mm/N
BL Product (BL)5.36T·m
Diaphragm Mass Inc. Airload (Mms)9.3g
Maximum Linear Excursion (Xmax)3.46mm
Surface Area of Cone (Sd)86.6cm²

Materials of Construction

Cone MaterialCoated Paper
Surround MaterialRubber
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter5.98"
Baffle Cutout Diameter4.61"
Depth2.23"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F377.4Hz
Vented Volume0.7ft³
Vented F341.9Hz
