Peavey RX14 Compression Driver

Name: Peavey RX14 Compression Driver
Brand: Peavey
SKU: 294-3236
Price: 69.99 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

Read 4 Reviews | 8 Questions, 36 Answers or

Peavey

Part #294-3236

Peavey RX14 Compression Driver

Peavey

Part #294-3236

Model: RX14

Read 4 Reviews | 8 Questions, 36 Answers or

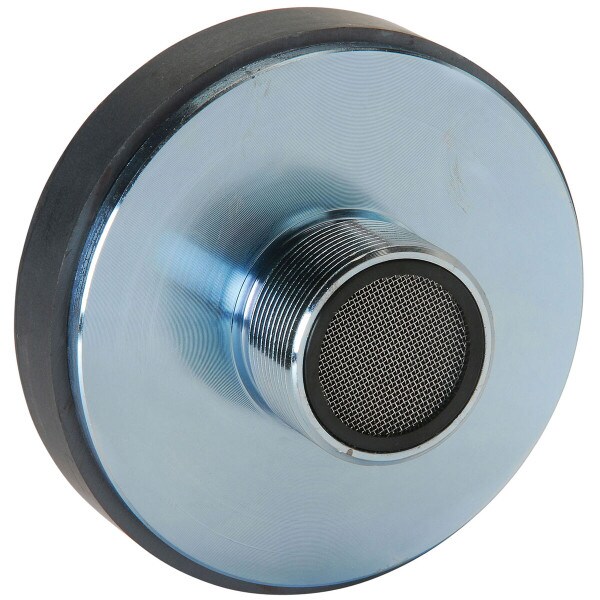

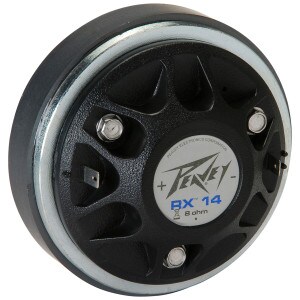

Peavey's RX14 is a 1" compression driver designed with a pure titanium diaphragm and 1.4" Kapton voice coil for greater power handling compared to similar sized compression drivers.

See all items in Horn Drivers

Your Price: $69.99

Bulk Pricing

Back-Ordered

Get Notified When Available

We'll send you an email when Peavey RX14 Compression Driver is back in stock or available for preorder.

Estimated back in stock 5/23/2025

Alert Me When Available

Qty Quantity:

Free Shipping available on orders over $99.00 in the US. Details

60 Day No Hassle Return Policy

Frequently Bought Together

This Product: Peavey RX14 Compression Driver	$69.99

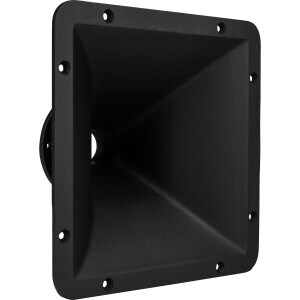

B&C ME90 1.4" Constant Directivity Horn 80x60 4-Bolt	$98.52

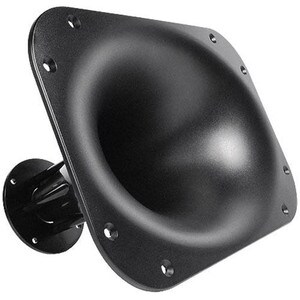

FaitalPRO LTH142 1.4" 60 x 50 Elliptical Tractrix Horn 4-Bolt	$166.00
Eminence HA14-2 1-1/4" Aluminum Horn Adapter	$19.99

Total Price: $354.50

This Product:Peavey RX14 Compression Driver$69.99

B&C ME90 1.4" Constant Directivity Horn 80x60 4-Bolt$98.52

FaitalPRO LTH142 1.4" 60 x 50 Elliptical Tractrix Horn 4-Bolt$166.00

Eminence HA14-2 1-1/4" Aluminum Horn Adapter$19.99

4 ItemsTotal Price: $354.50

Overview

Peavey RX14 Compression Driver

The RX14 1" compression driver is known for excellent driver performance, reliability, and power handling. The voice coil is a copper clad aluminum wire wound on a Kapton high temperature coil former. The one-piece titanium diaphragm reduces the amount of moving mass, extending the high frequency response of the driver. Ferrofluid cooling is used for improved reliability and smoother frequency response. Peavey item 03495480.

Specifications: • Throat parameter: 0.938" (23.8 mm) • Nominal impedance: 8 ohms • Minimum impedance: 7.1 ohms • DC Resistance: 6.8 ohms • Power capacity 1,000 Hz to 20,000 Hz: 30 watts continuous, 60 watts program, 120 watts peak • Sensitivity: 104 dB SPL 1W/1m, On-axis on 90º H x 45º V horn • Nominal efficiency: 30% • Frequency response: 1.5 kHz to 20 kHz • Recommended crossover: 1,800 Hz at 12 dB /octave • Lowest recommended crossover: 2,000 Hz at 12 dB /octave • Diaphragm: Commercially pure titanium • VCdia: 1.4" (34.4 mm) • Voice coil material: Edge-wound ribbon with high temp Kapton bobbin • Flux density: 11,500 gauss (1.15T) • Dimensions: 3.54" (90 mm) diameter, 2.40" (61 mm) depth • Horn coupling diameter: 0.938" (23.8 mm) • Horn coupling threads: Standard 1-3/8" / 18" • Voice coil cooling: Ferrofluid • Weight: 2.26 lbs. (1.024 kg).

Product Details
Brand	Peavey
Model	RX14
Part Number	294-3236
UPC	014367136937
Unit of Measure	Each
Weight	2.35

Product Specifications
Diaphragm Material	Titanium
Exit Diameter	1"
Mounting Type	1-3/8"-18 TPI
Power Handling (RMS)	30 Watts
Impedance	8Ω
