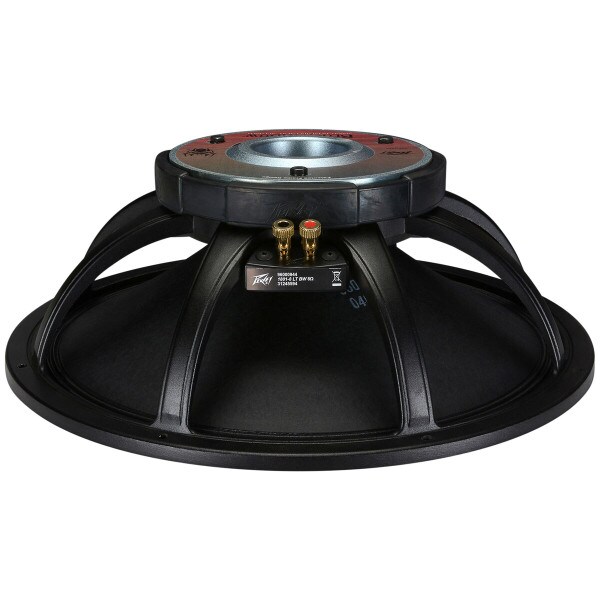

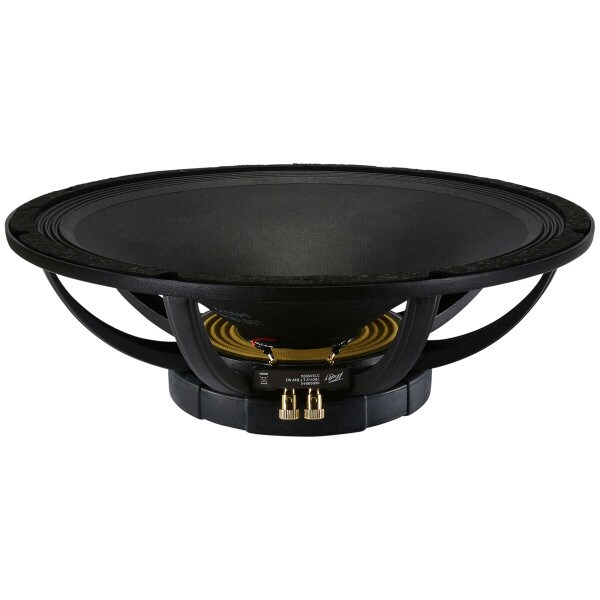

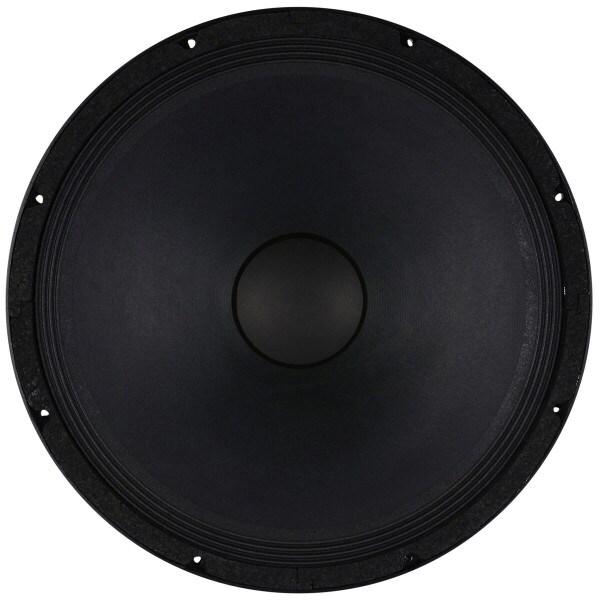

These state-of-the-art speakers’ features Kevlar® impregnated cones and a high efficiency magnet structure to provide outstanding sensitivity, reliability, and performance. The Kevlar impregnated cone is stiffer than an equivalent weight paper cone, reducing the tendency of the cone to distort the shape of the voice coil, thus avoiding rubs and scrapes. Peavey item 00560480.
Product Details | |
|---|---|
| Brand | Peavey |
| Model | 1801-8 LT BW |
| Part Number | 294-3112 |
| UPC | 014367124347 |
| Unit of Measure | Each |
| Weight | 20.75 |
Product Specifications | |
|---|---|
| Nominal Diameter | 18" |
| Power Handling (RMS) | 350 Watts |
| Power Handling (MAX) | 700 Watts |
| Impedance | 8Ω |
| Frequency Response | 35 to 1,000Hz |
| Sensitivity | 97dB 2.83V/1m |
| Voice Coil Diameter | 4" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 40.4Hz |
| DC Resistance (Re) | 6.23Ω |
| Voice Coil Inductance (Le) | 0.3mH |
| Mechanical Q (Qms) | 5.59 |
| Electromagnetic Q (Qes) | 0.58 |
| Total Q (Qts) | 0.52 |
| Compliance Equivalent Volume (Vas) | 10.06ft³ |
| Mechanical Compliance of Suspension (Cms) | 0.13mm/N |
| BL Product (BL) | 18T·m |
| Diaphragm Mass Inc. Airload (Mms) | 118g |
| Maximum Linear Excursion (Xmax) | 5mm |
| Surface Area of Cone (Sd) | 1240cm² |
Materials of Construction | |
|---|---|
| Cone Material | Paper / Kevlar |
| Voice Coil Wire Material | Aluminum |
| Voice Coil Former | Fiberglass |
| Basket / Frame Material | Cast Aluminum |
| Magnet Material | Ferrite |
Mounting Information | |
|---|---|
| # Mounting Holes | 8 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 4ft³ |
| Sealed F3 | 65.7Hz |
| Vented Volume | 6.75ft³ |
| Vented F3 | 46.1Hz |
