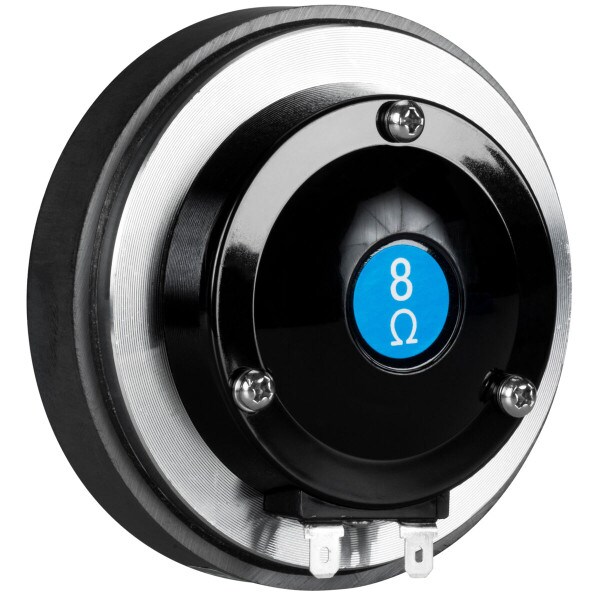

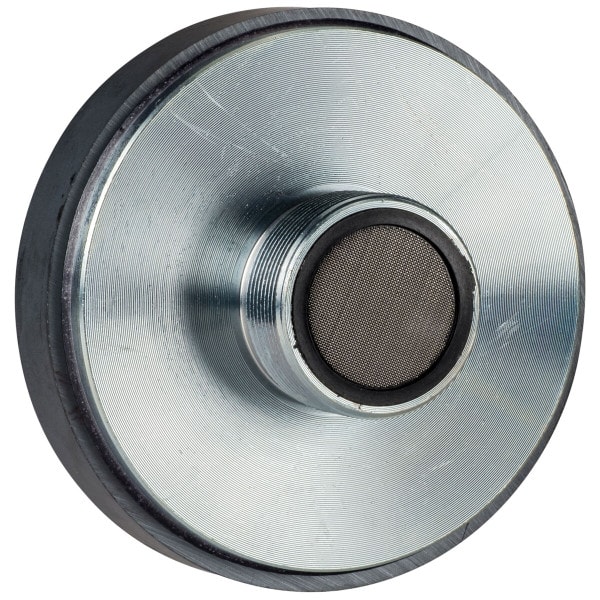

Peavey 14T Titanium Compression Driver 1-3/8"-18 TPI

PeaveyPart # 294-3128
Model: 14T
Sensitivity: 105 dB 1W/1m (on-axis, 90º x 45º horn) • Frequency response: 1,500 - 20,000 Hz • Recommended crossover: 2,000 Hz at 12 dB/octave • Power handling (1000 - 20,000 Hz): 100 watts peak; 50 watts program; 25 watts continuous • Diaphragm: commercially pure titanium • VC dia: 1.4" / 34.4 mm.
Your Price: $49.99
Bulk Pricing
Only 1 In Stock More due any day
Get Notified When Available

We'll send you an email when Peavey 14T Titanium Compression Driver 1-3/8"-18 TPI is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peavey 14T Titanium Compression Driver 1-3/8"-18 TPI

Peavey item 03601330.

Specifications: Sensitivity: 105 dB 1W/1m (on-axis, 90º x 45º horn) • Frequency response: 1,500 - 20,000 Hz • Recommended crossover: 2,000 Hz at 12 dB/octave • Power handling (1000 - 20,000 Hz): 100 watts peak; 50 watts program; 25 watts continuous • Diaphragm: commercially pure titanium • VC dia: 1.4" / 34.4 mm • Voice coil material: copper clad aluminum (CCA) wire on an aluminum former • Dimensions: 3.44" diameter x 2.30" (87.4 x 58.4 mm) • Coupling Threads: standard 1-3/8" - 18 TPI • DCR: 6.4 ohms • Nominal impedance: 8 ohms • Weight: 33.0 oz. • Lowest recommended crossover: 1,800 Hz at 12 dB/octave.

Product Details

BrandPeavey
Model14T
Part Number294-3128
UPC014367604450
Unit of MeasureEach
Weight2.14

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)50 Watts
Impedance8Ω
