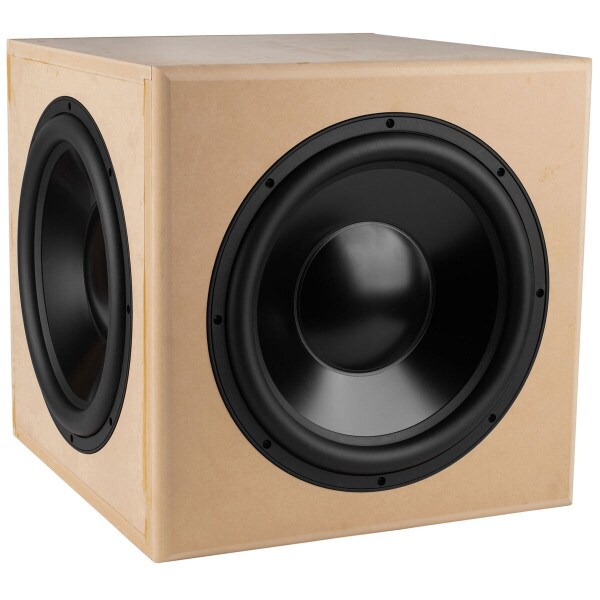

Dayton Audio Reference 15" with Dual Passive Radiator Subwoofer Kit
For ultra-low frequency reproduction, powerful output capability, and incredibly low distortion, building this passive 15” subwoofer kit is an obvious choice. Using the popular Dayton Audio Reference Series RSS390HO-4 15” aluminum cone driver and two of the matching RSS390-PR 15” passive radiators, this subwoofer kit is an incredibly potent combination. With an unassisted response down to 24 Hz and capable of over 112 dB of output, you can expect earth shaking bass response without the high distortion that can result from applying massive amounts of bass boost.
Features:
- High excursion RSS390HO-4 driver delivers powerful bass response with low distortion
- Passive radiator assisted design extends bass response and keeps enclosure small
- Perfect for use with high power music and home theater systems
- Customize the precision CNC-cut MDF enclosure to fi t in any decor
- CNC cut MDF enclosures are easy to assemble with minimal tools
- This kit will not only produces high-output, it delivers remarkably low distortion as well
Customer Comments:
"Love it, its blends well... and has all of the oomph I could want" -Anthony F. ⋆⋆⋆⋆⋆
"Awesome sub. Adds a whole new dimension to movies." -Bill Mahar S. ⋆⋆⋆⋆⋆
"The subwoofer itself sounds great and is insanely powerful." -NYCJay ⋆⋆⋆⋆⋆
"This sub... will get down around 20 hz... the passive radiators give you the best of both worlds" -New User U. ⋆⋆⋆⋆⋆
Meet the Designer:
Chris Perez
His passion for superior audio kits is surpassed only by his love for imaginative outdoor light displays.
Customer Projects:

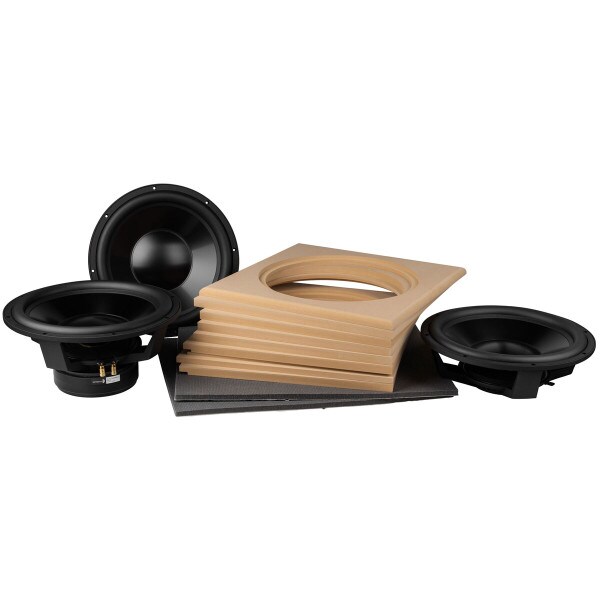

Kit Includes:
| Part # | QTY. | Description |

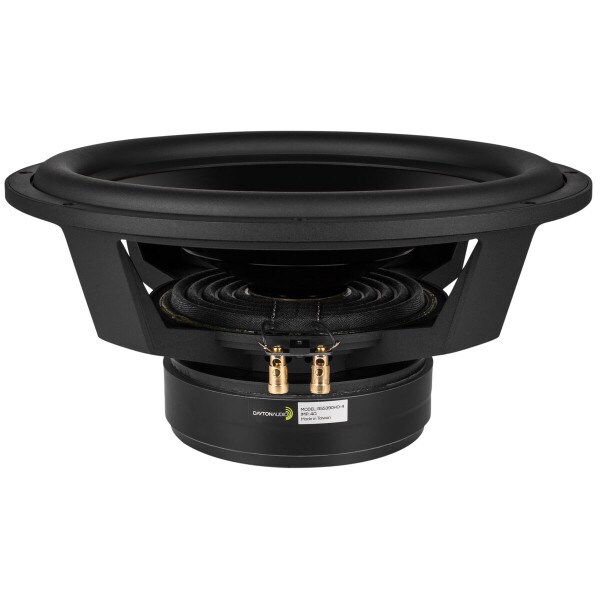

| 295-469 | 1 | Dayton Audio RSS390HO-4 15” Reference Series HO Subwoofer 4 Ohm |

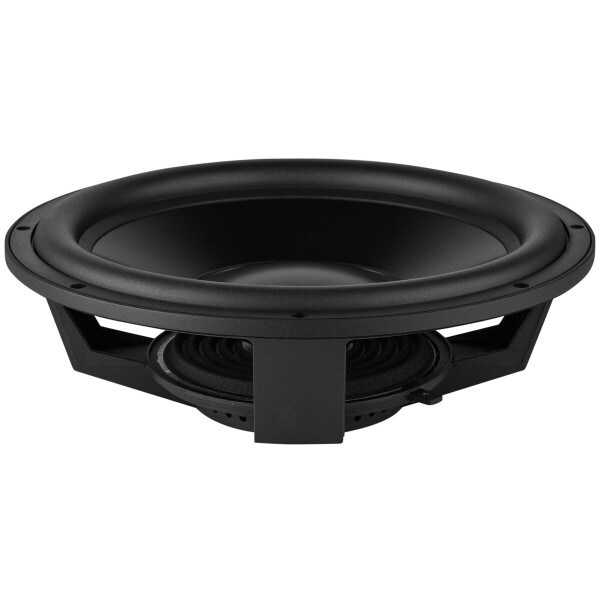

| 295-504 | 2 | Dayton Audio RSS390-PR 15” Reference Series Aluminum Cone Passive Radiator |

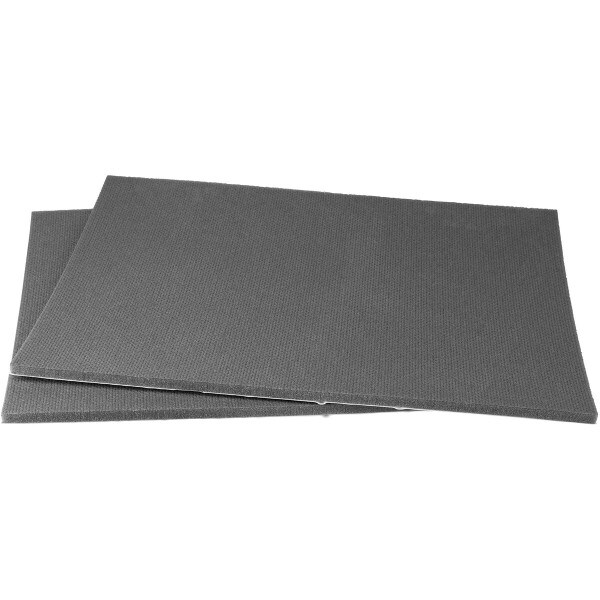

| 260-520 | 1 | Sonic Barrier 1/2” Acoustic Sound Damping Foam with PSA 18” x 24 |
| - | 1 | Knock down enclosure |
Additional Parts Used:
| Part# | QTY. | Description |
| 081-422 | - | #8 x 3/4” Deep Thread Pan Head Screws Black 100 Pcs. |
| 081-425 | - | #8 x 1” Deep Thread Pan Head Screws Black 100 Pcs. |
| 092-054 | 1 | Neutrik NL4MPR Speakon Connector 4 Pole Round Chassis Mount |
| 081-3220 | - | #4 x 5/8” Flat Head Wood Screw Zinc |
| 095-808 | - | Gold 12-10 AWG 0.187" Female Disconnect 5 Pair |
| 100-065 | - | JSC Wire 12 AWG Red/Black Zip Power Speaker Wire |
Specifications:
- Power: 800 watts RMS
- Subwoofer: 1 x Dayton Audio RSS390HO-4 15" Reference Series HO Subwoofer 4 Ohm
- Frequency response: 21 – 600 Hz
- SPL: 92.8 dB @ 2.83V/1m
- Xmax: 12.0mm
- Dimensions: 19.25" H x 19.25" W x 20" D
