  • Panel Mount Micro USB Extension Cable Male to Female

Panel Mount Micro USB Extension Cable Male to Female

Parts ExpressPart # 130-031
1 Question, 3 Answers or

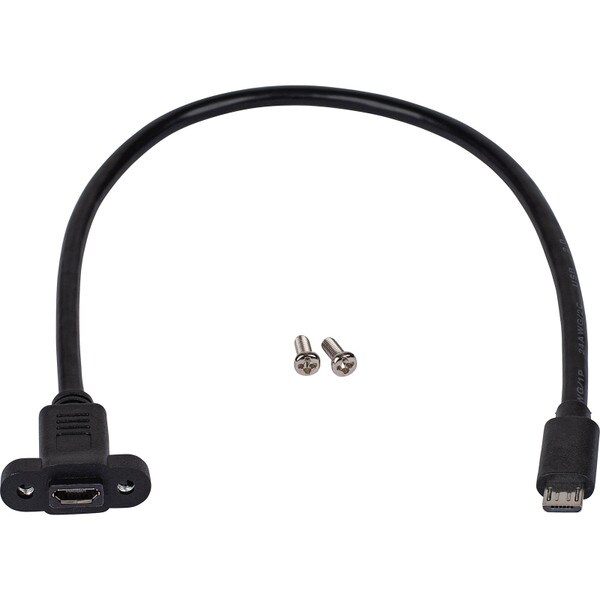

Extend your micro USB power jack with this 1 ft. extension. Chassis mount female lets you access the port outside your project.

Key Features

  • Extend micro USB ports from inside a project to access outside the project
  • Includes two M3 x 7.5mm screws that thread into the female micro USB mount for easy installation
Your Price: $4.49
MSRP: $9.99
Save $5.50 (55%)
Bulk Pricing
In Stock
Get Notified When Available

We'll send you an email when Panel Mount Micro USB Extension Cable Male to Female is back in stock or available for preorder.

Ships next business day. Details
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Panel Mount Micro USB Extension Cable Male to Female

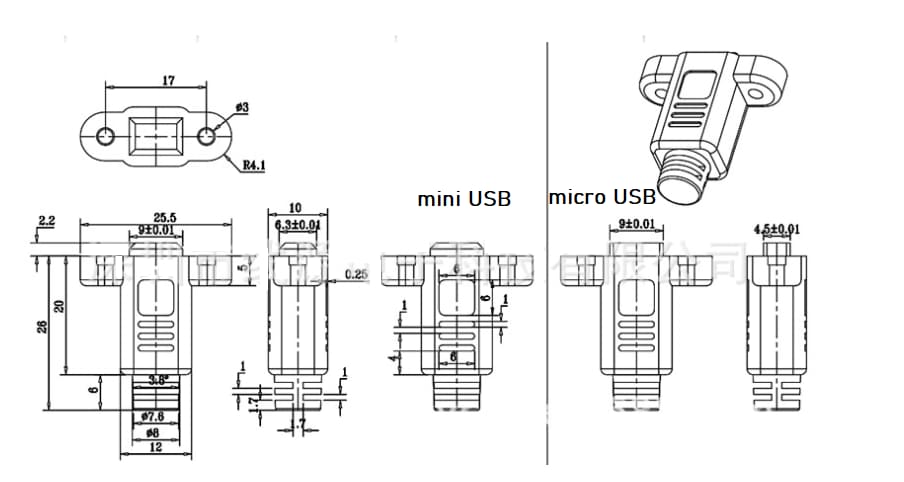

Many small 5 VDC powered amplifier boards have a micro USB power port. Sometimes it's hard to mount the board so you have access to the port. With this micro USB extension you're able to mount the amp board deep inside the project and then make a two small holes in the enclosure 17mm apart to securely mount the female port with the included screws. Make a hole for the female micro USB that's 4.54 x 9 x 2.5 mm. This way you are able to plug and unplug externally without having to take the top off your project.

Product Details

BrandParts Express
Part Number130-031
UPC848864068077
Unit of MeasureEach
Weight0.05

Product Specifications

Cable Length1feet
Jacket ColorBlack
