CLEARANCE PRV Audio SQ6000X 1 Ohm 1 Channel Mono Full-Range Amplifier 6,000W

PRV AudioPart # 294-3153
Model: SQ6000X 1 Ohm
1 Question, 2 Answers or
Designed to produce an unbelievable 6,000 watts of power at 1 ohm, PRV Audio's SQ6000X mono amplifier is a great choice for high power loudspeaker systems. PRV focused on achieving sound quality first, and then on making the X Series amplifiers amazingly powerful, efficient, and durable. The overbuilt power supply, custom MOSFETs, and high capacitance reserve take this amplifier to the next level of performance with incredible dynamic power output.

Key Features

  • Capable of 6,000 watts of power for incredible output levels
  • Proprietary SQochre-Xwire for high output and excellent efficiency
  • 1 ohm stable for use with high current subwoofers and multiple drivers

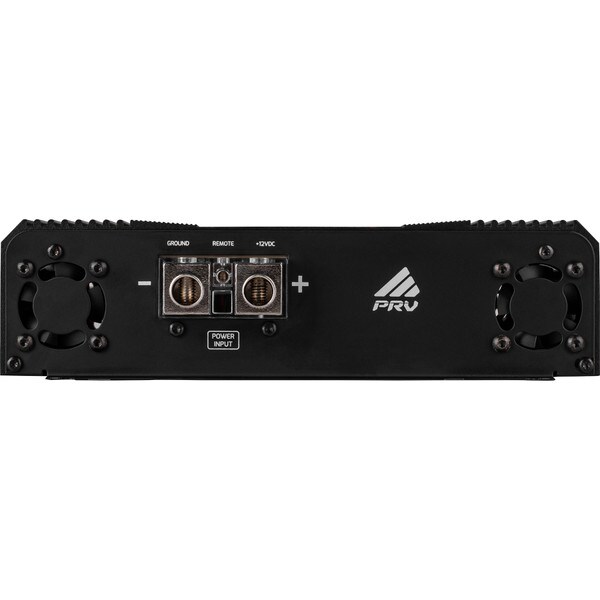

  • 1/0 Gauge power and ground terminals allow maximum current flow and power output

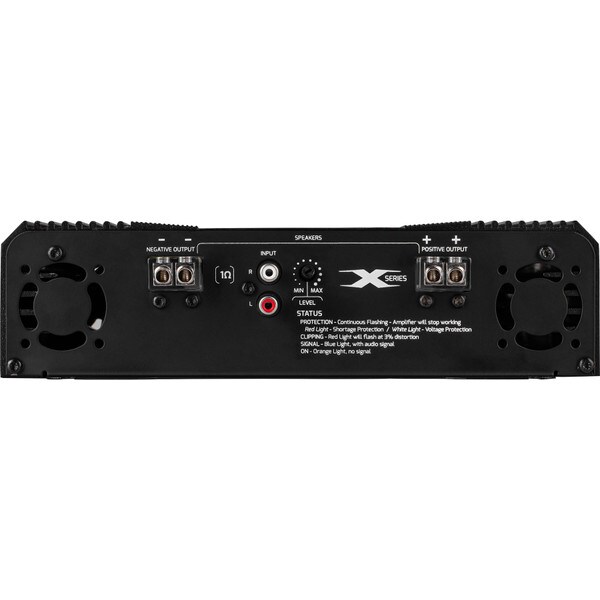

  • Dual 10 Gauge positive and negative terminals outputs, ideal for multi-speaker systems
Get Notified When Available

We'll send you an email when PRV Audio SQ6000X 1 Ohm 1 Channel Mono Full-Range Amplifier 6,000W is back in stock or available for preorder.

60 Day No Hassle Return Policy

Overview

PRV Audio SQ6000X 1 Ohm 1 Channel Mono Full-Range Amplifier 6,000W

For the highest output SPL mobile sound systems, PRV Audio's X Series amplifiers are setting a new standard for output, reliability, and value. Capable of 6,000 watts of sheer power, the remarkable SQ6000X 1 ohm mono amplifier delivers the most innovative and powerful Brazilian technology in full range class D 12 volt amplifiers on the market.

When engineering the SQ6000X, PRV Audio focused on achieving sound quality first, and then maximizing power, efficiency, and durability. These efforts led to the proprietary SQochre-Xwire power supply technology to deliver massive output with real-world input voltage levels and excellent sound quality. Combined with using some of the highest quality and most reliable electrical components on a heavy duty PC board takes this amplifier to the next level of performance with incredible dynamic power output. All X Series amplifiers use custom TO-247 MOSFETs with 60% more metal tab area for more power capacity, lower impedance, and improved heat dissipation over traditional outputs on most Brazilian amplifiers. The large capacitor bank is designed to store more energy and provide a high dynamic sound, capable of an astonishing peak power output of over 7,000 Watts. An efficient aluminum alloy cast heatsink enables the SQ6000X to have one of the smallest footprints in its power class while maintaining maximum heat dissipation under the most demanding conditions.

PRV Audio's SQ6000X is the perfect amplifier for use in your next extreme SPL sound system.

Specifications:
• Number of Channels: 1
• RMS power at 1 ohm 12.0V: 4,800W
• RMS power at 2 ohm 12.0V: 3,000W
• RMS power at 1 ohm 13.0V: 6,000W
• RMS power at 2 ohm 13.0V: 4,000W
• Supply voltage: 11 ~ 15V
• Frequency response: 20 Hz - 18 kHz
• Signal to Noise: >90 dB
• Input sensitivity: 0.29V
• Impedance Output: 1 ohm
• Music current draw: 300A
• Dimensions (L x W x H): 15.25" x 10.25" x 2.75"

Product Details

BrandPRV Audio
ModelSQ6000X 1 Ohm
Part Number294-3153
UPC0602938022712
Unit of MeasureEach
Weight14.05

Product Specifications

Input TypeRCA Line Level
Output Channels1
Special Features1 ohm Stable
